The Koganei F10M5AJ is a 5-station pneumatic solenoid valve manifold from Koganei's F10 series. It combines multiple solenoid valves on a single shared manifold base, allowing centralized control of multiple pneumatic actuators from one compact assembly. This unit includes five solenoid valves — one F10T1, two F10T1-CPL3, and two F10T2-CPL3 — mounted on the manifold block, with a bundled wiring harness and push-in tube fittings as shown.

Specifications & What's Included

• Manifold Model: Koganei F10M5AJ
• Number of Stations: 5
• Valve Models:
  • Qty 1 — Koganei F10T1 (single solenoid)
  • Qty 2 — Koganei F10T1-CPL3 (single solenoid with connector)
  • Qty 2 — Koganei F10T2-CPL3 (double solenoid with connector)
• Series: Koganei F10 Series
• Actuation: Electrically actuated solenoid valves
• Fluid: Pneumatic / compressed air
• Fitting Type: Push-in tube fittings (installed, as shown)

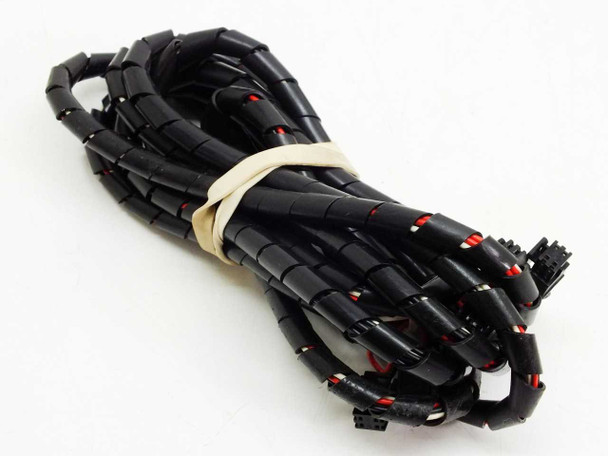

• Includes: Manifold base, 5 solenoid valves, bundled wiring harness, push-in elbow and straight fittings
• Country of Manufacture: Japan (Made in Japan — per label)
• Date Code: 89 (visible on manifold label)

Applications

Solenoid valve manifolds like the Koganei F10M5AJ are standard components in pneumatic automation systems used across semiconductor fabrication, electronics assembly, packaging machinery, and general industrial automation. A manifold bank consolidates multiple valve functions onto a single base, simplifying plumbing and wiring compared to individually piped valves. The F10 series valves are compact directional control valves suited for controlling cylinders, clamps, grippers, and other pneumatic actuators in automated equipment. These assemblies are commonly integrated into pick-and-place machines, assembly fixtures, and process control systems where multiple independent pneumatic circuits need to be switched from a centralized control interface. Koganei is a Japanese manufacturer well known in the semiconductor and electronics manufacturing industries for compact, high-precision pneumatic components.
