Description

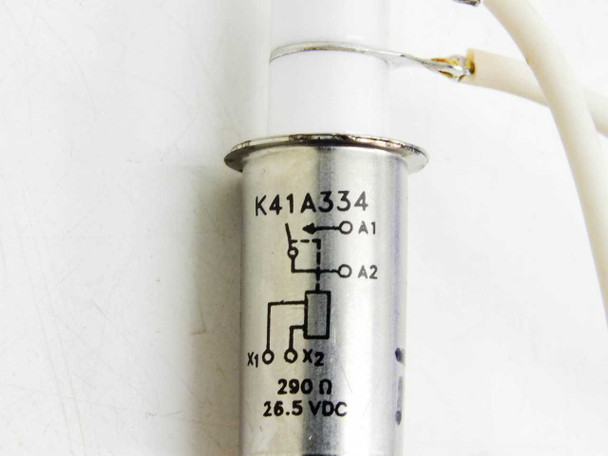

Kilovac K41A334 High Voltage Relay 5kV 30A 26.5VDC SPST-NO 1 Form A Coil
High voltage relay designed for switching applications requiring 5kV isolation and up to 30A load capacity. Single pole, normally open contact configuration with 26.5VDC coil.
Specifications & What's Included
- Contact Rating: 5kV at 0–30A
- Coil Voltage: 26.5VDC, 290 Ohms resistance
- Contact Arrangement: 1 Form A, SPST-NO (single throw, normally open)
- Switching Function: Make only
- RF rated and power switching capable
- Termination: Wire leads
- Manufactured in USA
Applications
Kilovac relays are used in high voltage industrial control and telecom equipment. This model was originally installed in Pernicka LGC-1 Laser Ballast systems, where it handled switching duties for laser power management. Suitable for RF and power switching applications requiring isolation at elevated voltages.
Condition: Used

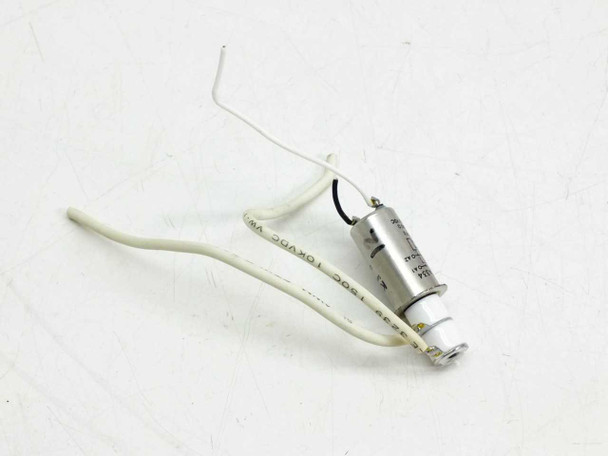

This Kilovac K41A334 High Voltage Relay has been inspected and is in good used condition. It was pulled from a Pernicka LGC-1 Laser Ballast where it was in active use and functional at the time of removal. The relay body is clean with no visible damage; the white AWM wire leads are intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Kilovac K41A334 High Voltage Relay has been inspected and is in good used condition. It was pulled from a Pernicka LGC-1 Laser Ballast where it was in active use and functional at the time of removal. The relay body is clean with no visible damage; the white AWM wire leads are intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Kilovac |
Model: |
K41A334 |
MPN: |
K41A334 |
Type: |
High Voltage Relay |
SKU: |
46666 |
Contact Arrangement: |
1 Form A, SPST-NO (1 N/O) |
Switching Function: |
Make Only |
Rated Voltage (Contact): |
5kV |
Rated Current (Contact): |
0–30 A |
Coil Voltage: |
26.5 VDC |
Coil Resistance: |
290 Ohms |
RF Rated: |
Yes |
Power Switching: |
Yes |
Termination Style: |
Wire Lead |
Compatible With: |
Pernicka LGC-1 Laser Ballast |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Pulled from a Pernicka LGC-1 Laser Ballast where it was in use and functional. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Kilovac K41A334 High Voltage Relay in good used condition. Pulled from a Pernicka LGC-1 Laser Ballast where it was in active use and functional. Wire leads intact, body clean, no visible damage. |
