Keithley Metrabyte PDISO-8 PC7082 ISA Digital I/O Card 8-Relay 37-Pin D-Sub

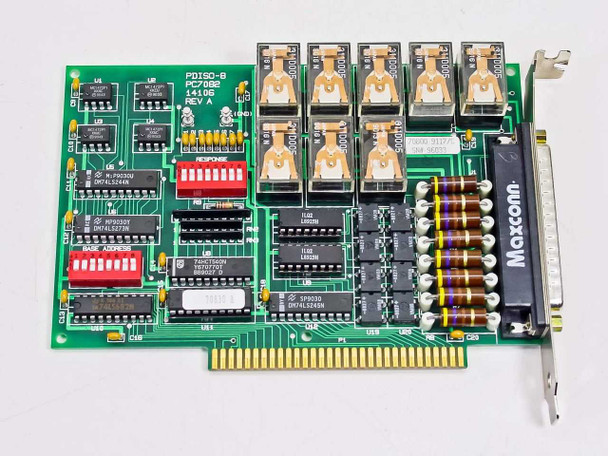

The Keithley Metrabyte PDISO-8 PC7082 is an ISA-bus digital input/output card featuring eight electromechanical relays and an isolated digital I/O interface. Designed for PC-based data acquisition and control systems, it connects to external devices and test fixtures through a 37-pin D-Sub port via a Maxconn connector. Part number is 14106, Revision A.
Specifications & What's Included
- Make: Keithley (Metrabyte)
- Model: PDISO-8 / PC7082
- Part Number: 14106
- Revision: Rev A
- Bus Interface: ISA (Industry Standard Architecture) — full-length ISA edge connector
- Relay channels: 8 electromechanical relays (visible on component side)

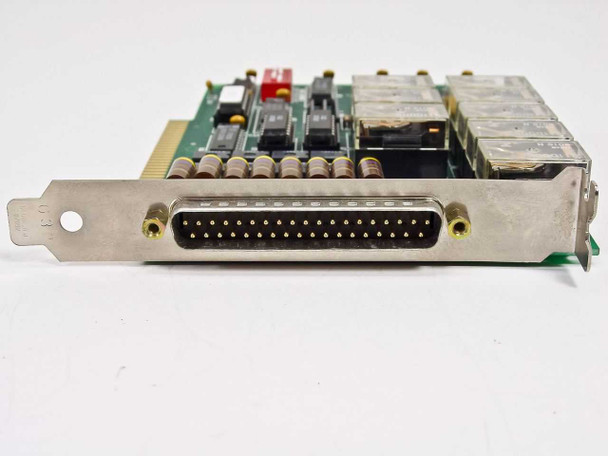

- External connector: 37-pin D-Sub male (DB-37) via Maxconn bracket-mount connector

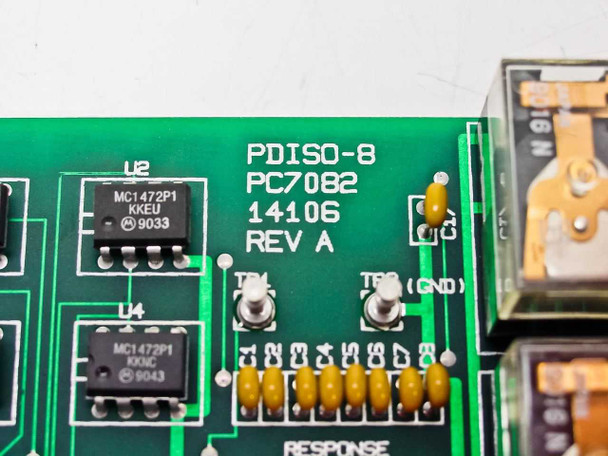

- Onboard ICs: Motorola MC1472P1 (×2, visible in photos), plus supporting logic ICs and DIP switches for base address configuration

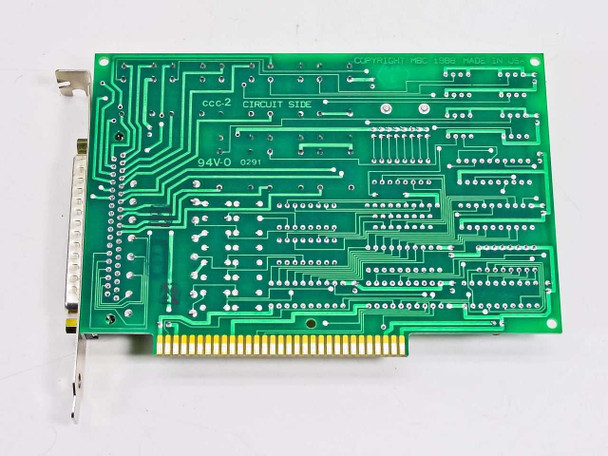

- PCB: FR4, 94V-0 rated, CCC-2 circuit side designation
- PCB date code: 9117/C (approximately 1991)
- Included: card only — no cables or external breakout hardware
Applications
The PDISO-8 (Programmable Digital I/O with Isolation, 8-channel) is part of the Metrabyte family of PC-based data acquisition and control cards that were widely used in laboratory automation, industrial test systems, and process control from the late 1980s through the 1990s. The card allows a standard ISA-bus PC to switch or sense external digital signals through relay-isolated outputs — useful for controlling solenoids, indicator lights, alarms, or other low-voltage switching loads in automated test equipment (ATE) setups. Keithley acquired Metrabyte in the early 1990s and continued the product line under the Keithley Metrabyte brand. These cards are still sought by engineers maintaining legacy ISA-based test systems, LabVIEW or DOS-era ATE rigs, and industrial PC platforms that require relay-output I/O expansion. The 37-pin D-Sub interface was a common breakout format for Metrabyte cards, and compatible screw-terminal breakout boards are available from several third-party suppliers.
This Keithley Metrabyte PDISO-8 PC7082 ISA Digital I/O Relay Card has been inspected and is in good condition. It was pulled from a working Metrabyte test system where it was actively in use and functional. The PCB is clean with no visible damage, the relay array and D-Sub connector are intact, and the bracket is straight. Normal light handling wear is present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Keithley |
Model: |
PC7082 |
MPN: |
14106 |
Secondary Model: |
PDISO-8 |
Hardware Revision: |
Rev A |
SKU: |
43003 |
Type: |
ISA Digital I/O Relay Card |
Interface: |
ISA (Industry Standard Architecture) |
Output Connector: |
37-Pin D-Sub (DB-37) |
Number of Relays: |
8 |
Form Factor: |
ISA Expansion Card |
Compatible With: |
Keithley Metrabyte Test Systems, ISA-bus PCs |
Seller Notes: |
Card only — no cables or bracket hardware included beyond installed bracket. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Keithley Metrabyte PDISO-8 PC7082 ISA relay I/O card in good condition. Pulled from a working Metrabyte test system where it was in use and functional. PCB clean, relays and 37-pin D-Sub connector intact. |
