Keithley PC6112 DAS-8 Data Acquisition Card ISA Bus 8-Channel Analog Input

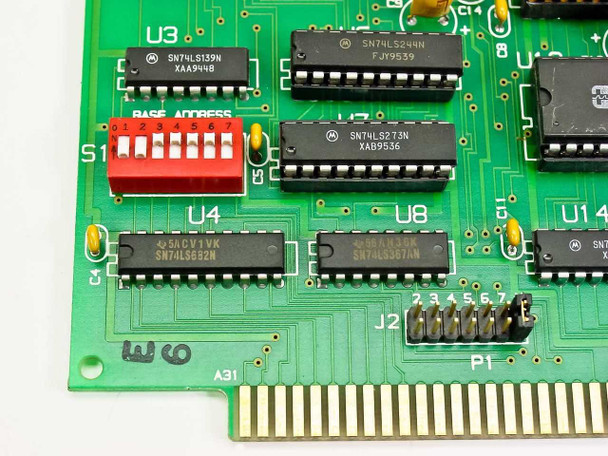

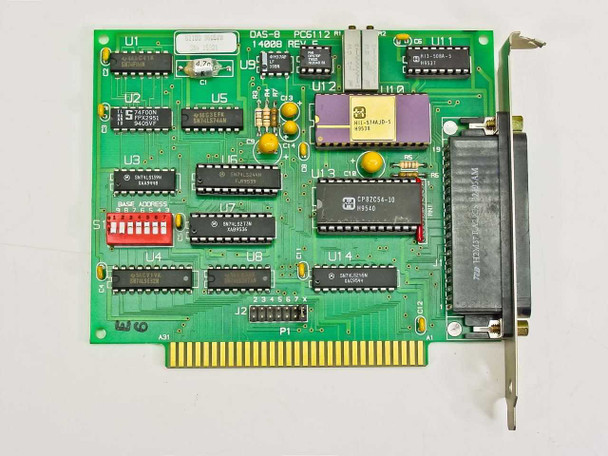

The Keithley PC6112 is an ISA-bus data acquisition card from Keithley's DAS-8 product line, designed to add multi-channel analog input and digital I/O capability to IBM PC/XT/AT-compatible computers. The board revision is F (14008 Rev F), and the card features a 37-pin D-sub (DB37) connector on the slot bracket for connection to external signal sources and breakout accessories. The base I/O address is configurable via an onboard DIP switch (S1), allowing the card to coexist with other ISA peripherals.
Specifications & What's Included
- Manufacturer: Keithley
- Model: PC6112 (DAS-8)
- Board Part Number: 14008 Rev F
- Bus Interface: ISA (8-bit/16-bit)
- Analog Input Channels: 8
- I/O Connector: DB37 (37-pin D-sub) on bracket
- Base Address Configuration: DIP switch S1 (8-position)
- Main Controller IC: CPY3C64-10
- Analog Op-Amp: PMI OP07DP (U12)
- Logic ICs: Motorola SN74LS series (SN74LS139N, SN74LS244N, SN74LS273N, SN74LS367AN, SN74LS692N, and others)
- PCB: Green, full-length ISA card
- Includes: Card only — no cables, software, or breakout accessories
Applications
The DAS-8 series of data acquisition cards was developed for PC-based laboratory automation, scientific data logging, and instrumentation applications during the ISA-bus era of the late 1980s through the mid-1990s. These cards were widely used in research labs, universities, and industrial test environments where real-world analog signals — voltage, current, temperature via transducers — needed to be digitized and processed by a PC. The PC6112 connects to Keithley signal conditioning accessories and breakout boards via its DB37 interface, enabling setups with sensors, thermocouples, and other transducers. Keithley's DAS-8 compatible software and drivers supported languages including QuickBASIC, C, and later Windows environments. Today these cards are primarily sought by engineers and researchers maintaining legacy PC-based data acquisition systems, as well as vintage computing enthusiasts.
This Keithley PC6112 DAS-8 Data Acquisition Card has been tested and is in good working condition. The PCB is clean with no visible damage, corrosion, or missing components. The DB37 I/O connector and ISA edge connector are in good shape. The board shows normal light handling wear consistent with prior lab use. Please view our photo set and contact us if you have any questions.
