Description
Keithley 3722 Dual 1x48 Multiplexer Card 96CH 300V Series 3700A w/ Cables
The Keithley 3722 is a plug-in multiplexer card for the Keithley Series 3700A System Switch and Multimeter mainframe. It provides two independent 1x48 two-pole multiplexer banks, configurable as 96 two-pole or 48 four-pole channels for general-purpose switching and measurement applications. The two banks can be interconnected via the analog backplane connection relays, allowing the mainframe to reconfigure the card as a single 1x96 two-pole multiplexer or to enable multi-card expansion for higher channel counts.
Specifications & What's Included
- Model: Keithley 3722 Dual 1x48 Multiplexer Card
- Configuration: Two independent 1x48 two-pole banks (96 two-pole or 48 four-pole channels)
- Switching capacity: 300V, 1A switched; 2A carry; 60W, 125VA
- Voltage offset: 1V
- Current offset: 100 pA
- Bandwidth: 25 MHz

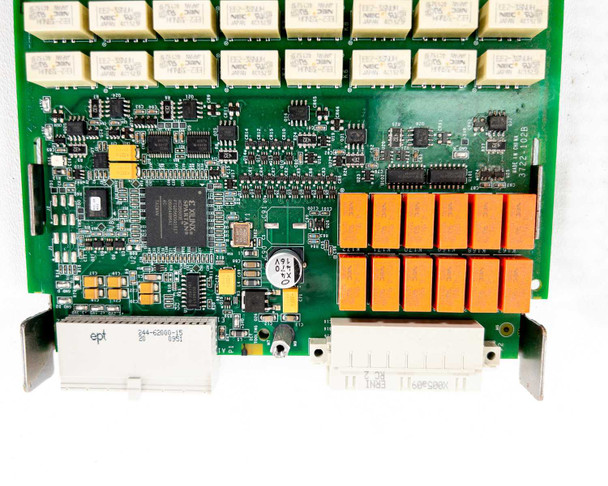

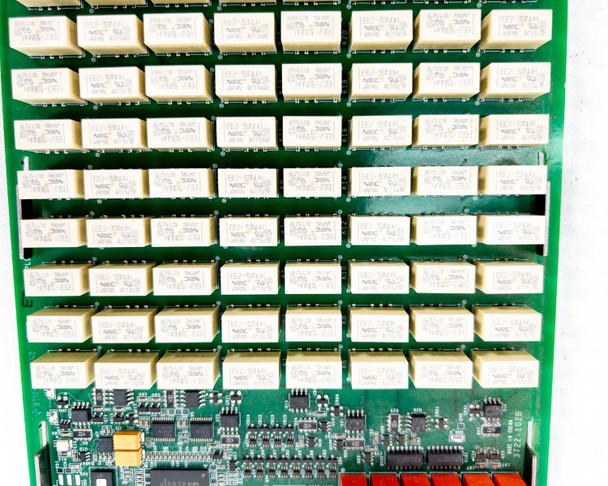

- Relay type: Latching electromechanical (NEC relays visible on PCB)
- Relay closures stored in onboard memory
- Scan rate: Over 110 channels/second

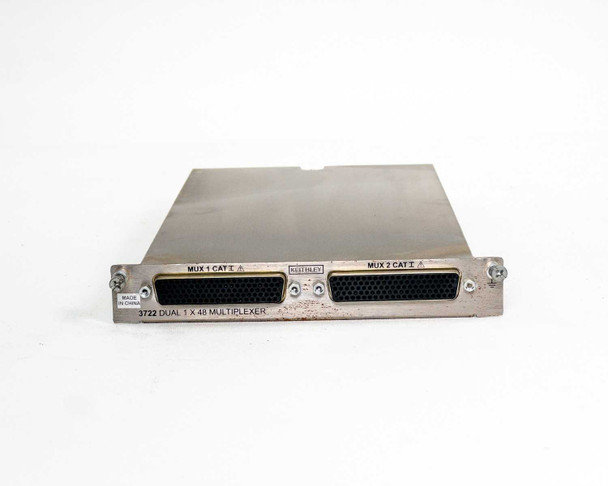

- Signal connectors: Two 104-pin D-sub connectors (MUX 1 CAT 2 and MUX 2 CAT 2) on front panel

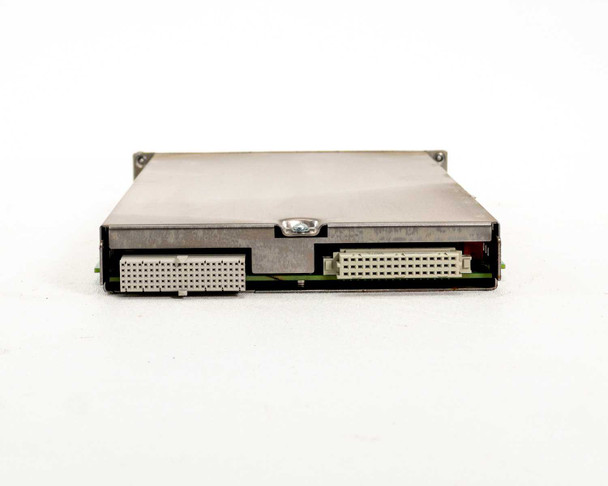

- Backplane interface: Analog backplane connection relays for Series 3700A mainframe
- Form factor: Plug-in card/module for Keithley 3700A chassis
- Country of manufacture: China (visible on front panel label)

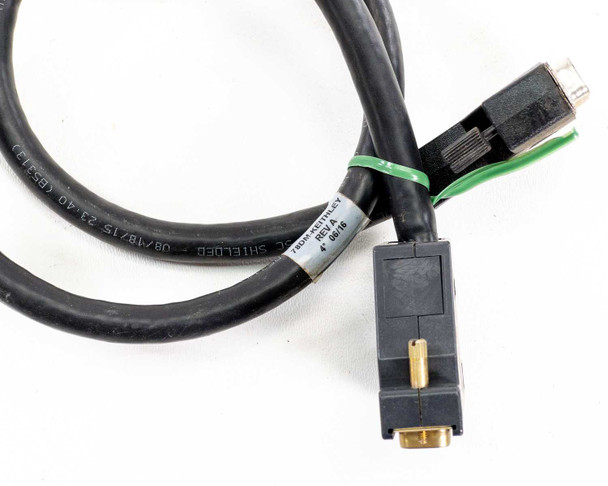

- Includes: 2x 78DM REV A shielded 104-pin D-sub cables
Applications
The Keithley 3722 is designed for use in automated test and measurement systems where high channel-count switching is required. It is used in conjunction with the Keithley Series 3700A mainframe and optional DMM for scanning, switching, and measuring across large numbers of test points — common in production test, component characterization, semiconductor parametric testing, and data acquisition applications. The latching relay design retains switch states without continuous power, making it suited for low-power test rack environments. Multiple 3722 cards can be combined within a 3700A chassis for configurations exceeding 96 channels.
This Keithley 3722 Dual 1x48 Multiplexer Card was powered on and tested at our facility. During testing, it was determined that not all channels are functioning. As a result, this card is being sold strictly as-is, for parts or repair — it is not guaranteed functional for production use. The card is physically intact with the metal shield cover present and the PCB showing no obvious damage. Both 104-pin D-sub connectors on the front panel appear undamaged. Two 78DM REV A shielded cables are included. Please view our full photo set for a detailed look at the board and components, and contact us if you have any questions before purchasing. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Keithley |
Model: |
3722 |
MPN: |
3722 |
Type: |
Dual 1x48 Multiplexer Card |
SKU: |
52976 |
Compatible With: |
Keithley Series 3700A Mainframe |
Number of Channels: |
96 two-pole or 48 four-pole |
Switching Capacity: |
300V, 1A switched; 2A carry; 60W, 125VA |
Bandwidth: |
25 MHz |
Relay Type: |
Latching Electromechanical |
Connector Type: |
104-pin D-sub (x2) |
Scan Rate: |
Over 110 channels/second |
Offset Voltage: |
1V |
Offset Current: |
100 pA |
Form Factor: |
Card/Module |
Backplane Interface: |
Analog backplane connection relays |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes 2x 78DM REV A cables. Not all channels working — sold as-is. |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Keithley 3722 Dual 1x48 Multiplexer Card was powered on and tested at our facility. During testing, it was determined that not all channels are functioning. |
