Description
Keithley 2000 6.5-Digit Multimeter DMM GPIB IEEE-488 RS-232 Benchtop
The Keithley 2000 is a 6.5-digit precision benchtop digital multimeter (DMM) designed for high-accuracy laboratory, production, and research measurement applications. It combines wide measurement ranges across DC and AC voltage, current, resistance, frequency, and temperature with a 0.002% 90-day basic DC voltage accuracy specification — placing it in the same tier as professional-grade reference instruments. The instrument features a bright vacuum fluorescent display (VFD) and a full complement of front-panel function and range controls.
Specifications & What's Included
- Model: Keithley 2000 6.5-Digit Multimeter
- Display: Vacuum fluorescent display (VFD), 6.5 digits
- DC Voltage: 100 nV to 1000 V; 0.002% 90-day basic accuracy
- AC Voltage: 100 nV to 750 V
- DC Current: 100 pA to 3.1 A
- AC Current: measured via DCI/ACI functions
- Resistance (2-wire and 4-wire): 100 µΩ to 100 MΩ
- Additional measurement functions: Frequency, Temperature (thermocouple)
- Interfaces: IEEE-488 (GPIB) and RS-232 — both present on rear panel
- Trigger Link connector on rear panel (6-pin DIN)
- Front input terminals: HI (350 V peak), INPUT (1000 V peak), LO, SENSE (4-wire Ω)
- Front-panel controls: SHIFT, LOCAL, POWER, DCV, ACV, DCI, ACI, Ω 2-wire, Ω 4-wire, FREQ, TEMP, STORE/RECALL, FILTER, REL, DIGITS, RATE, EXIT/ENTER, STEP, SCAN, OPEN/CLOSE, EX TRIG/TRIG
- Line voltage: 100/120 VAC or 220/240 VAC selectable; 50, 60, 400 Hz
- Fuse: 250 mA (SB) at 100/120 VAC; 125 mA (SB) at 220/240 VAC
- Rear option slot present (empty)
- Country of manufacture: United States
- Includes: test leads (red and black, as shown in photos)
Applications
The Keithley 2000 is a workhorse precision DMM widely used in electronics laboratories, semiconductor test, quality assurance, calibration labs, and automated test equipment (ATE) setups. Its GPIB (IEEE-488) and RS-232 interfaces make it straightforward to integrate into computer-controlled test systems — a core reason it became one of the most popular benchtop DMMs of the 1990s and 2000s. Keithley (now part of Tektronix/Fortive) built the 2000 to serve applications requiring higher accuracy than a standard 4.5-digit handheld meter but without the cost of a full-featured 8.5-digit reference standard. It is commonly found in university electronics labs, R&D environments, component characterization, and production line verification, and continues to be a sought-after instrument on the used market because of its well-regarded accuracy specs and robust GPIB support for legacy ATE systems.

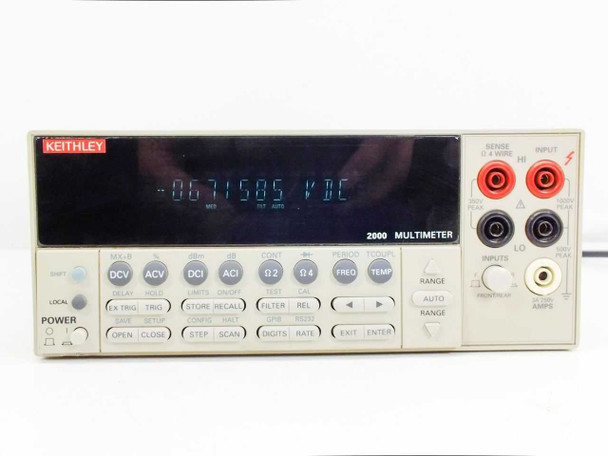

This Keithley 2000 6.5-Digit Benchtop Multimeter has been inspected and appears to be in good used condition. The unit powers on — the VFD display is lit and reading values in multiple photos. The front panel buttons, binding posts, and input terminals all appear intact and undamaged. The rear RS-232 and IEEE-488 GPIB ports are present and appear clean. The chassis shows minor surface wear and light scuffing consistent with normal lab use, but no significant damage. Test leads are included as shown in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Keithley |
Model: |
2000 |
MPN: |
2000 |
Type: |
6.5-Digit Benchtop Digital Multimeter (DMM) |
SKU: |
31107 |
Number of Digits: |
6.5 |
DC Voltage Range: |
100 nV to 1000 V |
DC Voltage Accuracy (90-day): |
0.002% basic accuracy |
AC Voltage Range: |
100 nV to 750 V |
DC Current Range: |
100 pA to 3.1 A |
Resistance Range: |
100 µΩ to 100 MΩ (2-wire and 4-wire) |
Interface: |
IEEE-488 (GPIB), RS-232 |
GPIB Standard: |
IEEE-488 |
Trigger Input: |
External trigger / Trigger Link |
Input Terminals: |
HI, LO, INPUT, SENSE (4-wire) |
Max Input Voltage: |
1000 V peak (INPUT), 350 V peak (SENSE) |
Fuse/Line Rating: |
250 mA (SB) 100/120 VAC; 125 mA (SB) 220/240 VAC |
Line Frequency: |
50, 60, 400 Hz |
Form Factor: |
Benchtop |
Country/Region of Manufacture: |
United States |
Measurement Functions: |
DCV, ACV, DCI, ACI, Resistance (2W/4W), Freq, Temp |
Features: |
STORE/RECALL, FILTER, REL, DIGITS, RATE, STEP, SCAN |
Option Slot: |
Rear option slot present (empty) |
Seller Notes: |
Multimeter only — test leads included (visible in photos); no additional accessories |
Condition Notes: |
This Keithley 2000 6.5-Digit Benchtop Multimeter has been inspected and is in good used condition. Powers on; VFD display lit in photos. Front panel, binding posts, RS-232 and GPIB ports all intact. Minor surface wear. Test leads included. |
