Kaiser Marquart TFX 5513/5514-2 Burn-In Load Bank Fixture 400Hz 1200Hz 800W

(No reviews yet) Write a Review
SKU:
36419
MPN:
TFX 5513/5514-2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
62.00 LBS
Shipping:
Calculated at Checkout
  • Kaiser Marquart TFX 5513/5514-2 Burn-In Load Bank Fixture — front panel with banana jack inputs, toggle switches, monitored output jacks, and harness cables on top
  • Kaiser Marquart TFX 5513/5514-2 Burn-In Load Bank — right-side and rear view of gray sheet-metal enclosure with ventilation holes and cable harness
  • Kaiser Marquart burn-in fixture front panel close-up showing 1200Hz and 400Hz input banana jacks (A, B, C, N terminals), FAN ON/OFF toggle, 1200Hz ON/OFF toggle, and 400Hz ON/OFF toggle
  • Kaiser Marquart 5513/5514 Burnin Fixture label on front panel showing model designation
  • Monitored outputs section of Kaiser Marquart TFX 5513/5514-2 — four rows (Units A, B, C, D) with T/R, BUS, and FIELD banana jack pairs

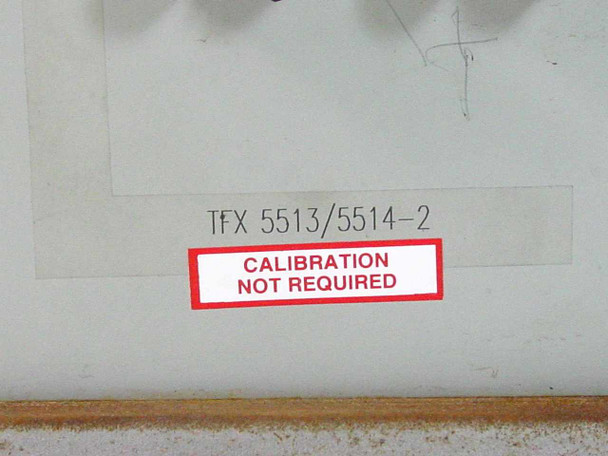

  • TFX 5513/5514-2 part number label and Calibration Not Required sticker with surface rust visible on enclosure bottom rail
  • Multi-conductor cable harness included with Kaiser Marquart burn-in fixture — mil-spec circular connectors (approx. 19-pin) and yellow twist-lock AC power plug
  • Kaiser Marquart TFX 5513/5514-2 top panel showing access cover with handle — surface shows scuffs, staining, and general wear
  • Interior of Kaiser Marquart TFX 5513/5514-2 burn-in fixture — four large wire-wound load resistors, two transformers, and terminal strip wiring visible
$325.00
Was: $650.00
Current Stock: 1

Sold Out

Description

Kaiser Marquart TFX 5513/5514-2 Burn-In Load Bank Fixture 400Hz 1200Hz 800W

Rackmount burn-in load bank fixture for aerospace and military electronics testing. Provides 800W total load capacity across four independent 200W, 50-ohm resistor units with monitored output channels.

Specifications & What's Included

  • Dual-frequency operation: 400Hz and 1200Hz independent inputs
  • Single or three-phase input capability
  • Four load units (A, B, C, D) with T/R, BUS, and FIELD outputs
  • Banana jack connectors for all signal paths
  • 120V AC fan control with ON/OFF toggle
  • Includes multi-conductor harness with mil-spec 19-pin circular connectors

Applications

Burn-in load banks stress test power supplies and electronics under sustained load conditions. This fixture supports aerospace and defense burn-in procedures for equipment operating at 400Hz and 1200Hz frequencies, common in military avionics and ground support systems. Used to validate component reliability and identify early failures before field deployment.

Condition: Used
This Kaiser Marquart TFX 5513/5514-2 Burn-In Load Bank Fixture has been tested and confirmed to pass all input signals through to the output connectors. The unit is in good used condition overall. Cosmetically, the exterior sheet-metal enclosure shows scuffs, staining, and general wear consistent with prior industrial or lab use, and there is surface rust visible along the bottom rail of the enclosure. The top access panel and internal components — four wire-wound load resistors, two transformers, and the terminal strip wiring — are all intact and visible through the removable top cover. The multi-conductor cable harness with mil-spec circular connectors and the yellow twist-lock AC power plug are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kaiser Marquart
Model:
TFX 5513/5514-2
MPN:
TFX 5513/5514-2
Type:
Burn-In Load Bank Fixture
SKU:
36419
Condition:
Used – Inspected and Tested
Seller Notes:
Includes multi-conductor harness cables with mil-spec circular connectors
Form Factor:
Rackmount / Benchtop Enclosure
Input Frequency:
400 Hz and 1200 Hz (independent inputs)
Input Phase:
Single Phase or Three Phase
Fan Voltage:
120V AC
Number of Load Resistors:
4
Load Resistor Rating:
200 Watts, 50 Ohms each
Total Load Capacity:
800W (0.8 kW)
Output Configuration:
Monitored outputs: Units A, B, C, D — T/R, BUS, FIELD
Input Connectors:
Banana jacks (A, B, C, N terminals per frequency)
Output Connectors:
Banana jacks — T/R, BUS, FIELD per unit (A–D)
Harness Connectors:
Mil-spec multi-pin circular connectors (approx. 19-pin)
Controls:
Toggle switches: FAN ON/OFF, 1200Hz ON/OFF, 400Hz ON/OFF
Calibration:
Calibration Not Required (labeled on unit)
Application:
Aerospace / military electronics burn-in and load testing
Country/Region of Manufacture:
United States
Condition Notes:
Kaiser Marquart TFX 5513/5514-2 Burn-In Load Bank Fixture. Tested — passes all input signals to output connectors. Good used condition; exterior shows scuffs, staining, and surface rust on bottom rail. Cable harness with mil-spec connectors included.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
