Powerstat

General Radio Variac Type 10B M2 Variable Transformer Test Board TFX-5297

(No reviews yet) Write a Review
SKU:
36423
MPN:
Type 10B
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
28.00 LBS
Shipping:
Calculated at Checkout
  • General Radio Variac Type 10B TFX-5297 test board front panel — blue panel with dual Variac knobs, fault indicators, and labeled test sections

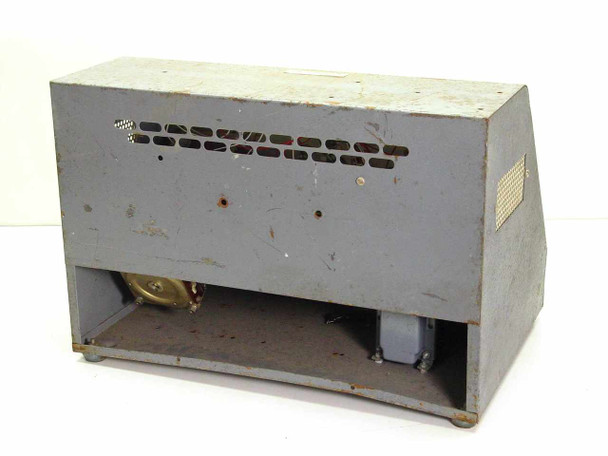

  • General Radio Variac TFX-5297 enclosure rear view — gray metal cabinet showing ventilation slots, open bottom bay with transformer visible
  • Close-up of handwritten TFX-5297 label on top of the enclosure
  • TFX-5297 front panel detail — PC-1 section showing AC Input Vari-Set knob, AC Meter terminals, Phase-Select rotary switch (A/B/C/None), and Metering toggle (Vari/Fixed)

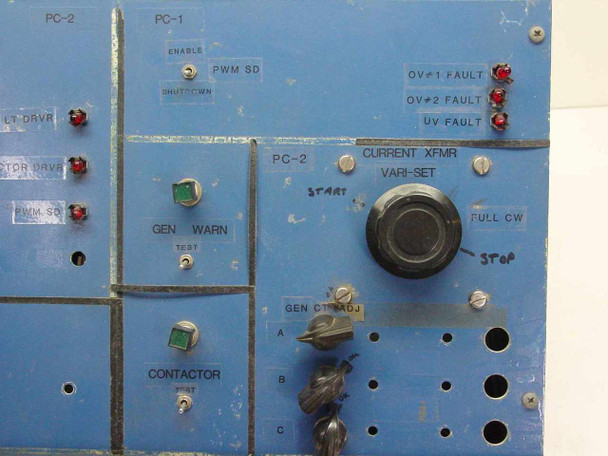

  • TFX-5297 front panel detail — PC-2 section with Current XFMR Vari-Set knob, Gen Warn test button, Contactor switch, OV1/OV2/UV Fault indicator LEDs

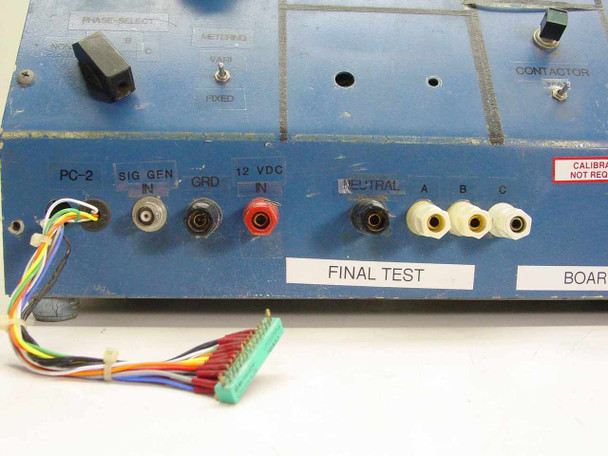

  • TFX-5297 lower panel detail — SIG GEN IN, GRD, 12VDC N test points, Neutral/A/B/C banana jacks, Final Test and Board Level label strips, with wiring harness
  • TFX-5297 panel close-up — Calibration Not Required label, PWM OUT and POS 26V IN banana jacks, PC-1 connector, wiring harness detail

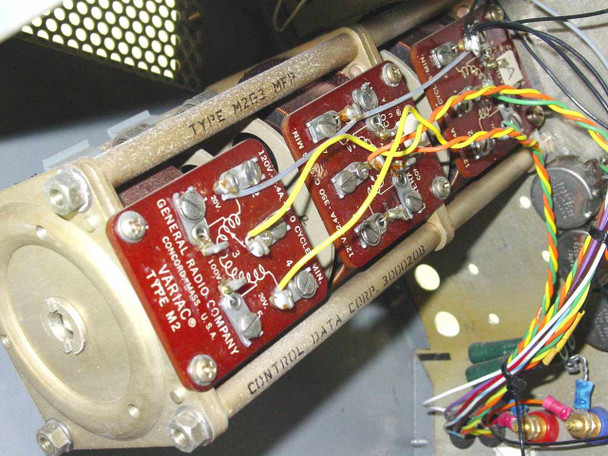

  • Interior view of the General Radio Company Variac Type M2 (Type M253 MFR) autotransformer core with red terminal board, tap connections, and Control Data Corporation label
  • Interior view of the General Radio Type 10B toroidal autotransformer core — wiper brush assembly visible on toroid winding, label reads Variac Type 10B 120V

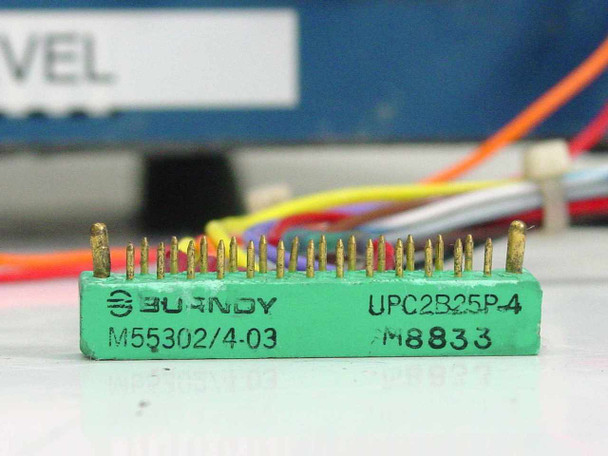

  • Burny UPC2B25P-4 / M55302/4-03 mil-spec connector (date code M8833) removed from the assembly, shown on work surface
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

General Radio Variac Type 10B M2 Variable Transformer Test Board TFX-5297

Variable autotransformer test fixture designed for bench-level power distribution and circuit testing. Provides 0–132V AC variable output from 120V AC single-phase input, with integrated metering and fault detection capabilities.

Specifications & What's Included

  • Output: 0–132V AC variable, single phase
  • Input: 120V AC
  • Front panel controls: AC input Vari-Set knob, Phase-Select (A/B/C), AC meter with Vari/Fixed metering switch
  • Test points: SIG GEN IN, GRD, 12VDC N, Neutral, A/B/C banana jacks, PWM OUT, POS 26V IN
  • Indicators: OV1/OV2/UV fault detection
  • Includes wiring harness and Burdy UPC2B25P-4 connector
  • Benchtop form factor; United States manufacture

Applications

Used in telecommunications and industrial test environments for voltage regulation during equipment diagnostics and power supply validation. Variac-type transformers serve as general-purpose AC power sources for component testing, circuit characterization, and fault simulation on three-phase and single-phase systems. Commonly deployed in manufacturing test floors and service centers for conditioning incoming power to test setups.

Condition: Used
This General Radio Variac Type 10B (Type M2) variable autotransformer in its TFX-5297 test board enclosure has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The blue front panel shows surface scuffing and paint wear consistent with lab use, and the gray enclosure has scattered paint chips and light surface oxidation on the sheet metal. The internal toroidal autotransformer core and wiper assembly are intact and visible through the open base. The front panel test points, banana jacks, rotary Vari-Set knobs, and indicator components all appear complete. A Burny M55302/4-03 mil-spec connector and wiring harnesses are included as shown. The CALIBRATION NOT REQUIRED label is affixed to the panel. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
General Radio Company
Model:
Type 10B
Secondary Model:
Type M2
MPN:
TFX-5297
SKU:
36423
Type:
Variable Autotransformer (Variac) in Test Enclosure
Output Voltage:
0–132V AC (variable)
Input Voltage:
120V AC
Phase:
Single Phase
Variac Series:
Powerstat / Variac Type M2
Enclosure / Assembly:
TFX-5297 Board-Level Test Fixture
Front Panel Features:
AC Input Vari-Set knob, Phase-Select (A/B/C/None), AC Meter, Metering switch (Vari/Fixed)
Additional Controls:
Current XFMR Vari-Set knob, PWM SD, Contactor, Gen Warn, OV1/OV2/UV Fault indicators
Test Points:
SIG GEN IN, GRD, 12VDC N, Neutral, A, B, C banana jacks; PWM OUT, POS 26V IN
Connector Included:
Burdy UPC2B25P-4 / M55302/4-03 connector (M8833)
Calibration:
Labeled CALIBRATION NOT REQUIRED
Labels:
FINAL TEST / BOARD LEVEL panel labels
Country/Region of Manufacture:
United States
Form Factor:
Benchtop / Freestanding Enclosure
Seller Notes:
Includes wiring harness and Burny connector; sold as pictured with all visible hardware
Condition Notes:
General Radio Variac Type 10B (M2) in TFX-5297 test enclosure. Inspected, pulled from a working environment where it was in active use. Shows surface wear and paint chips on enclosure. Panel components appear complete.
