Jeol HSCAN DMA Control3 PB Board BP102102-01 BOEBA577-03 886528518

(No reviews yet) Write a Review
SKU:
48637
MPN:
BP101753-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Jeol HSCAN DMA Control3 PB Board BP102102-01 BOEBA577-03 — top view showing full PCB layout with ICs, connectors, and component markings

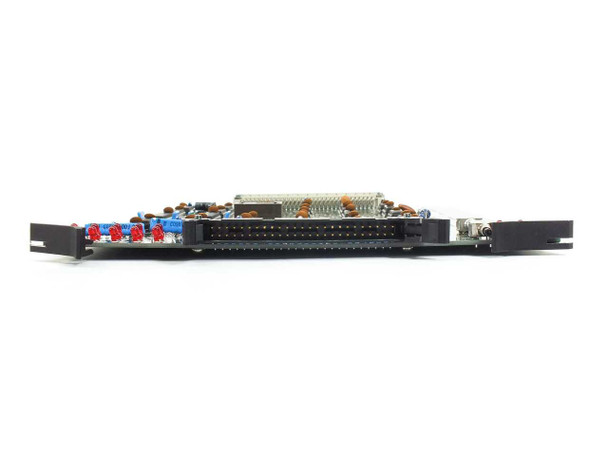

  • Jeol HSCAN DMA Control3 PB Board BP102102-01 — side profile view showing large multi-pin edge connector and red component leads

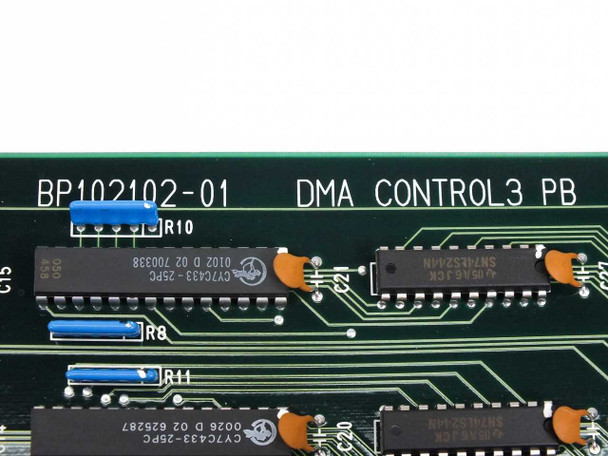

  • Jeol HSCAN DMA Control3 PB Board BP102102-01 — close-up of silkscreen label showing part number and DMA CONTROL3 PB designation with Cypress CY7C433-25PC and SN74AS244N ICs
  • Jeol HSCAN DMA Control3 PB Board BP102102-01 — opposite side profile view showing large secondary multi-pin edge connector
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Jeol HSCAN DMA Control3 PB Board BP102102-01 BOEBA577-03 886528518

DMA Control3 PCB controller board for Jeol HSCAN electron microscope systems. Board only, without housing or additional components.

Specifications & What's Included

  • Model: BP102102-01
  • Secondary Model: BOEBA577-03
  • Part Number: 886528518
  • Type: DMA Control PCB / Controller Board
  • Form Factor: Card / Module (PCB)
  • Interface: Multi-pin edge connector (large) with secondary pin headers
  • Compatible With: Jeol HSCAN System

Applications

This control board manages DMA operations within Jeol HSCAN electron microscope systems. The HSCAN platform was used for high-speed scanning and analysis applications in electron microscopy. Control boards of this type interface between the microscope's data acquisition systems and processing electronics, directing data flow and system timing functions.

Condition: Used
This Jeol HSCAN DMA Control3 PB Board (BP102102-01 / BOEBA577-03 / 886528518) has been inspected and is in good condition. The PCB shows normal handling wear consistent with prior installation and removal. No cracks, broken traces, or missing components are visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Jeol
Model:
BP102102-01
MPN:
BP102102-01
Secondary Model:
BOEBA577-03
Part Number 3:
886528518
Type:
DMA Control PCB / Controller Board
Board Function:
DMA Control3 PB
Compatible With:
Jeol HSCAN System
Form Factor:
Card / Module (PCB)
SKU:
48637
Condition:
Used – Inspected
Seller Notes:
Board only. Inspected and in good condition.
Application:
Electron Microscope / HSCAN System
Interface / Connector:
Multi-pin edge connector (large); secondary pin headers
Condition Notes:
Jeol HSCAN DMA Control3 PB Board BP102102-01 inspected and in good used condition. Normal handling wear, no visible damage or missing components.
