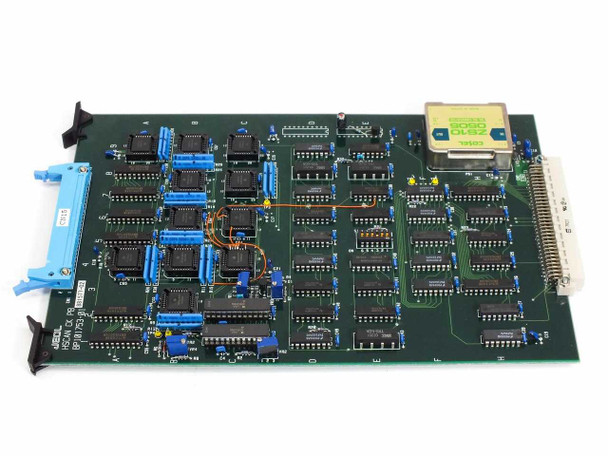

This is a JEOL HSCAN CK PB printed circuit board, part number BP101753-01 (sub-reference 881577-02), designed for use in JEOL DMA Control3 electron microscope control systems. The board carries JEOL's silkscreen markings on its PCB and is populated with a mix of large PLCC surface-mount ICs, DIP ICs, and blue electrolytic capacitors across its full length. It connects to the host system via a large card-edge connector and a high-density CN15 connector at one end, consistent with JEOL's internal control bus architecture.

Specifications & What's Included

• Manufacturer: JEOL
• Board designation: HSCAN CK PB (Horizontal Scan Clock/Pulse Board)
• Primary part number: BP101753-01
• Secondary / revision label: 881577-02
• Form factor: PCB card / module

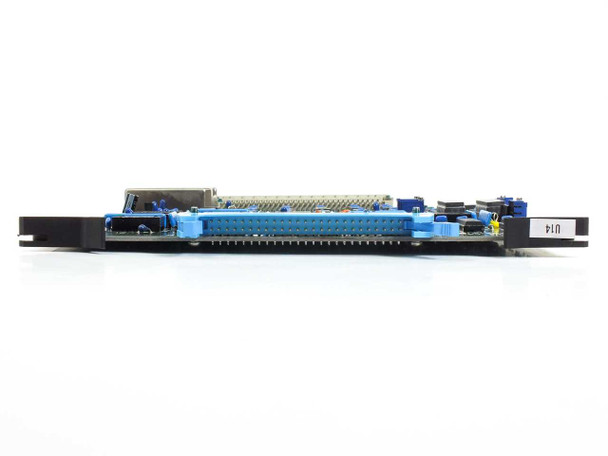

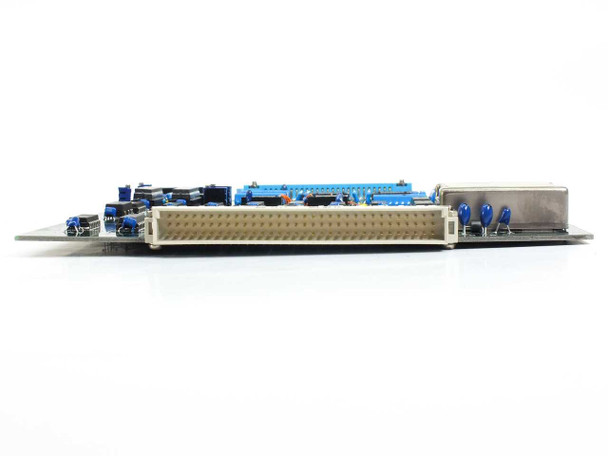

• Edge connector: large card-edge connector (visible on long edge, image 2)

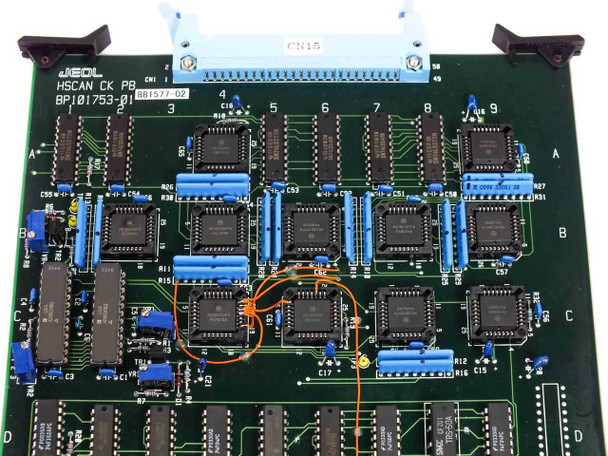

• Internal connector: CN15 high-density connector (visible top-side, image 5)
• Additional connector: CN1 (labeled on PCB near top edge)
• ICs: multiple large PLCC ICs (9+ visible in rows), DIP ICs including small logic packages near board markings
• Passive components: blue electrolytic capacitors throughout, film capacitors, resistor networks
• Board only — no cables, brackets, or accessories included

Applications
