J Schneider ELEX 1.3F-950228T3 Transformer 1.07kVA PRI 190-260/360-500V SEC

J Schneider ELEX 1.3F-950228T3 Transformer 1.07kVA PRI 190-260/360-500V SEC 120/230V

The J Schneider Elektrotechnik ELEX 1.3F-950228T3 is a 1.07 kVA single-phase multi-tap industrial control transformer built to VDE 0550 T40/F standards. It features a toroidal core construction with an open-frame chassis mount design and a clearly labeled multi-position screw terminal block for flexible wiring. The dual primary voltage ranges allow use on both standard 200-class and 400-class industrial power systems, and the multiple secondary outputs make it suitable for powering control circuits requiring different voltage levels simultaneously.

Specifications & What's Included

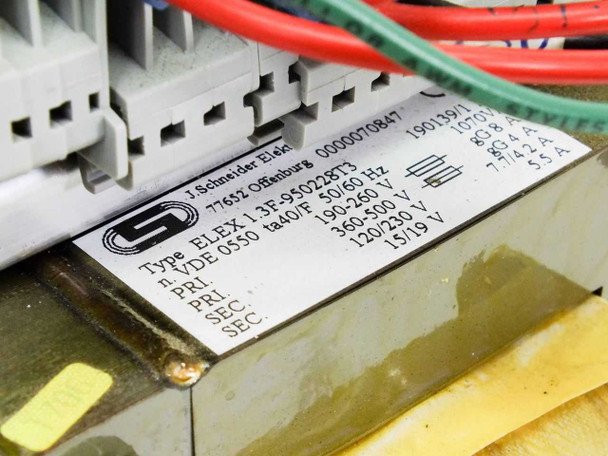

• Manufacturer: J Schneider Elektrotechnik GmbH, 77652 Offenburg, Germany
• Model / Type: ELEX 1.3F-950228T3
• Internal Reference: 173554/1
• Power Rating: 1.07 kVA
• Standard: VDE 0550 T40/F
• Frequency: 50/60 Hz
• Phase: Single Phase
• Primary Voltage Range 1: 190–260 V, 8.0 A (fuse gL)
• Primary Voltage Range 2: 360–500 V, 4.0 A (fuse gL)
• Secondary Output 1: 120 V / 230 V, 7.7 A / 4.2 A
• Secondary Output 2: 15 V / 19 V, 5.5 A

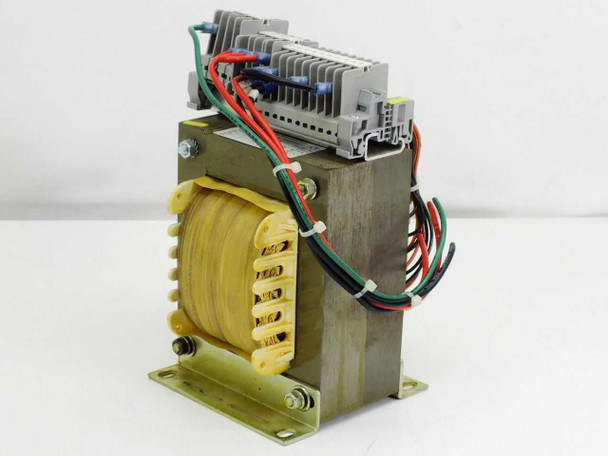

• Core Type: Toroidal wound core

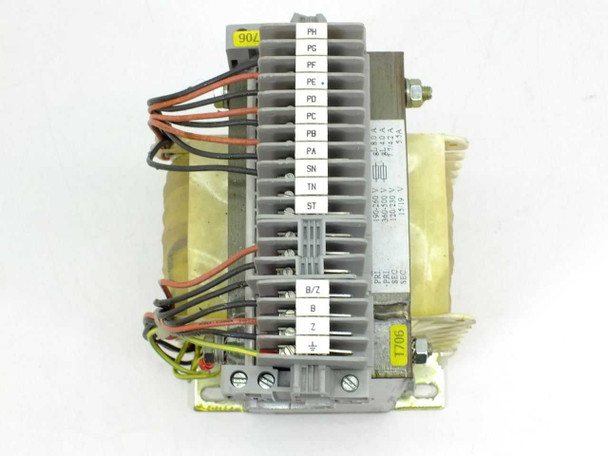

• Wiring: Multi-color lead wires terminated to labeled screw terminal block (terminals labeled PH, PG, PF, PE, PD, PC, PB, PA, SN, TN, ST, 230, 120, 0V, B/Z, B, Z, and ground)
• Mounting: Open-frame chassis with bolt-down base plate
• CE marked

Applications

Multi-tap industrial control transformers like the J Schneider ELEX series are used to step down or convert mains voltage to the control circuit voltages required by industrial machinery, automation systems, and panel-mounted controls. The dual primary voltage configuration — covering both the 190–260 V range (typical of single-phase or line-to-line on 230V systems) and the 360–500 V range (three-phase systems common in European industrial installations) — makes this transformer flexible across a wide range of machine tool, factory automation, and process control applications. Secondary outputs of 120 V and 230 V serve standard control and lighting circuits, while the low-voltage 15/19 V outputs are used for relay logic, instrumentation, or signal circuits. J Schneider Elektrotechnik is a German manufacturer known for producing transformers and electronic components for industrial OEM equipment; their ELEX series transformers are commonly found installed inside machine cabinets and control panels manufactured in Germany and throughout Europe.
