J. Schneider ELEX 1.3F-931019T2 Transformer EN61558/2-1 1KVA 190-260V 50/60Hz

J. Schneider ELEX 1.3F-931019T2 Transformer EN61558/2-1 1KVA 190-260V 50/60Hz

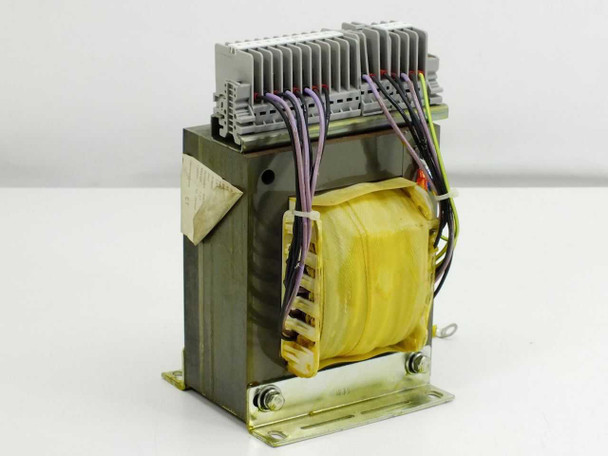

The J. Schneider ELEX 1.3F-931019T2 is an open-frame, chassis-mount control transformer rated at 1.028 KVA and compliant with EN61558/2-1 safety standards. It features a dual-range primary (190–260V or 380–500V) and a multi-tap secondary providing 120/220V and 13/19V outputs via screw-clamp terminal blocks. Manufactured by J. Schneider Elektrotechnik in Germany.

Specifications & What's Included

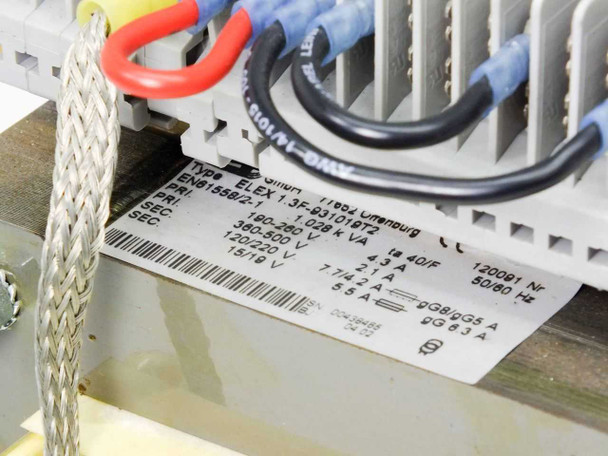

• Model: ELEX 1.3F-931019T2
• Standard: EN61558/2-1
• Power Rating: 1.028 KVA
• Primary Voltage: 190–260V / 380–500V
• Secondary Voltage: 120/220V, 13/19V (multi-tap)
• Frequency: 50/60 Hz
• Termination: Screw-clamp terminal block
• Form Factor: Open frame / chassis mount
• Country of Manufacture: Germany
• Unit only — no additional accessories included

Applications

Open-frame control transformers of this type are used in industrial machinery, automation panels, and OEM equipment where stepped-down or isolated AC voltages are required at the control circuit level.
