Iwaki

Iwaki FE-110 Single Inverter for Electric Motor AC100V 1.8A 180VA 50/60Hz

(No reviews yet) Write a Review
SKU:
47655
MPN:
FE-110
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

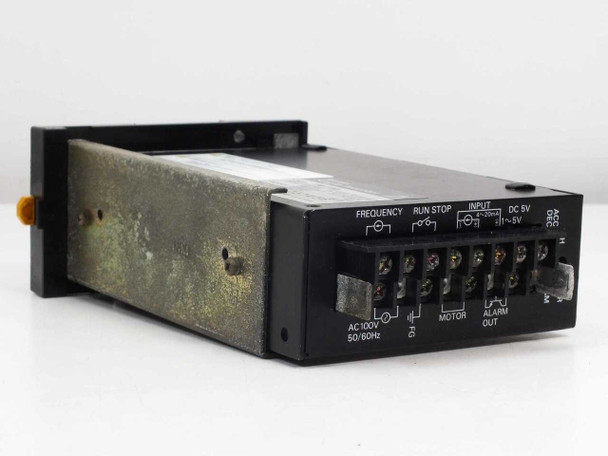

  • Iwaki FE-110 Single Inverter — angled front-left view showing terminal strip with Frequency, Run/Stop, Input DC 5V, Motor, and Alarm Out labels, with AC100V 50/60Hz marking

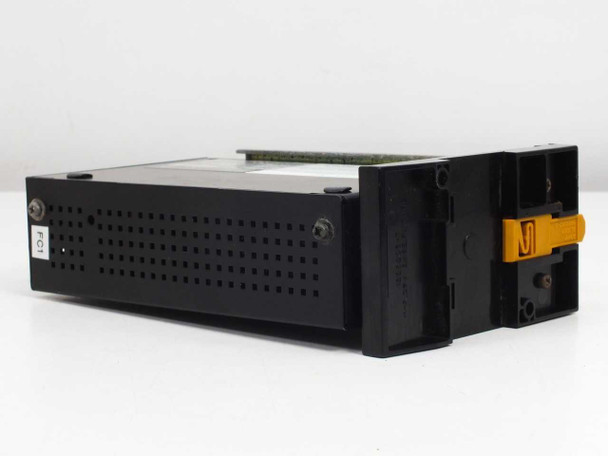

  • Iwaki FE-110 Single Inverter — right side view showing ventilation perforations, mount rack with yellow latch handle, and PCB visible at top

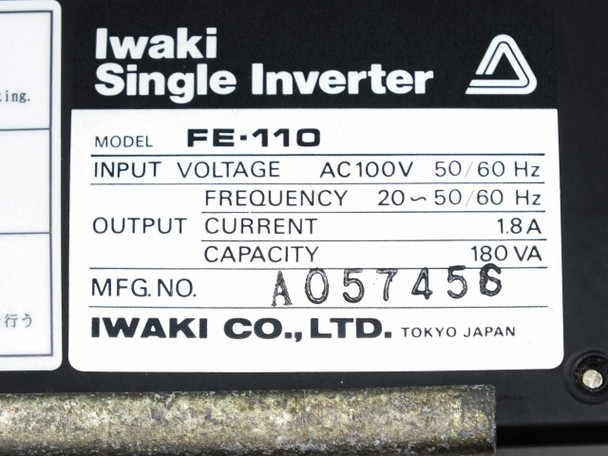

  • Iwaki FE-110 rating plate — model FE-110, Input Voltage AC100V 50/60Hz, Output Current 1.8A, Capacity 180VA, MFG No. A057456, Iwaki Co. Ltd. Tokyo Japan

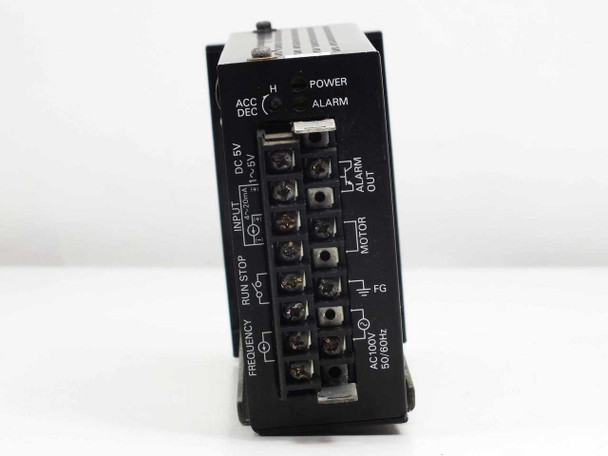

  • Iwaki FE-110 Single Inverter — top-down angled view of terminal block showing ACC/DEC, Power, Alarm, Input, Run/Stop, Frequency, Motor, FG, and AC100V connections

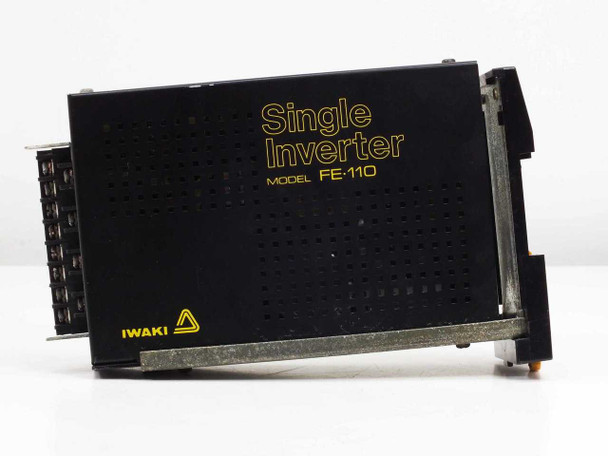

  • Iwaki FE-110 Single Inverter — left side panel view showing 'Single Inverter Model FE-110' and Iwaki logo in gold lettering on black housing with mount rack visible
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Iwaki FE-110 Single Inverter for Electric Motor AC100V 1.8A 180VA 50/60Hz

Single-phase variable frequency drive (VFD) designed to control AC induction motors. Converts fixed-frequency AC input to variable-frequency output for motor speed regulation.

Specifications & What's Included

  • Input: AC 100V, 50/60 Hz single phase
  • Output: 180 VA at 1.8 A, adjustable 20–60 Hz
  • Control inputs: DC 5V, 0–5V analog frequency control, run/stop
  • Outputs: Motor terminals, alarm output
  • Form factor: Panel/DIN rack mount
  • Mount rack included; no external cables

Applications

Single-phase VFDs like the FE-110 are used in small industrial and commercial applications requiring motor speed control without full three-phase infrastructure. Common uses include conveyor systems, pump control, fan speed regulation, and light manufacturing equipment. The 180 VA output rating suits fractional horsepower motors in machinery where energy efficiency and process control are required.

Condition: Used
This Iwaki FE-110 Single Inverter for electric motors has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The housing shows typical surface wear consistent with industrial use — some scuffing and light oxidation visible on the metal casing, particularly on the top and sides. The terminal block and connectors appear intact. The mount rack is included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Iwaki
Model:
FE-110
MPN:
FE-110
Type:
Single Phase Inverter / Variable Frequency Drive
SKU:
47655
Seller Notes:
Includes mount rack. Unit only — no external cables included.
Country/Region of Manufacture:
Japan
Input Voltage:
AC 100V
Input Frequency:
50/60 Hz
Output Current:
1.8 A
Output Capacity:
180 VA
Output Frequency Range:
20~50/60 Hz
Phase:
Single Phase
Power Requirements:
AC 100V, 50/60 Hz
Form Factor:
Panel Mount / DIN Rack Mount
Control Inputs:
DC 5V, 0~5V analog input; Run/Stop; Frequency
Outputs:
Motor output terminals; Alarm output
Condition:
Used – Pulled from Working Environment
Condition Notes:
Iwaki FE-110 Single Inverter inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Mount rack included. Shows typical surface wear. Photos available.
View AllClose
