Magnetek JBISO65N Universal Electric Motor 230V 50/60Hz 1/15HP 2500/3000RPM

Magnetek JBISO65N Universal Electric Motor 230V 50/60Hz 1/15HP 2500/3000RPM

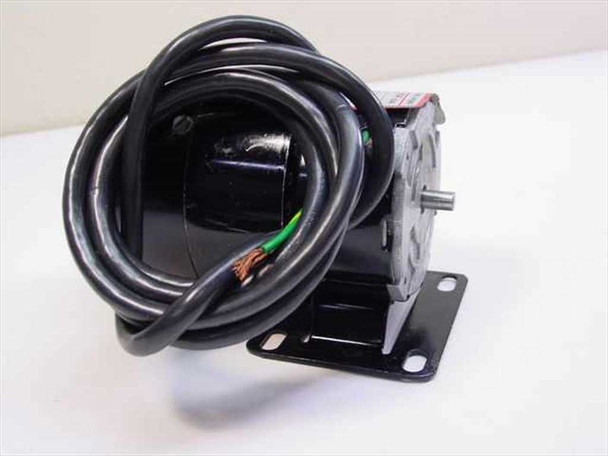

The Magnetek JBISO65N is a single-phase universal electric motor rated at 1/15 horsepower and designed to run on 230V at both 50Hz and 60Hz. Built by Magnetek Universal Electric in Owosso, Michigan, the JBISO65N is a compact, thermally protected motor mounted on a flat base bracket — suited for light-duty machine drive applications where a small, reliable fractional-horsepower motor is required.

Specifications & What's Included

• Model: JBISO65N (Sec. Part No. 130-049-00)
• Motor Series: 21CA
• Type: Universal Electric Motor (single-phase)
• Voltage: 230V
• Frequency: 50/60 Hz
• Current Draw: 1.05A (50Hz) / 0.9A (60Hz)
• Output Speed: 2500 RPM (50Hz) / 3000 RPM (60Hz)
• Horsepower: 1/15 HP
• Shaft Diameter: 0.3125 in (5/16")
• Insulation Class: Class B
• Maximum Ambient Temperature: 40°C
• Bearing Type: Ball Bearings (A.O.)
• Thermal Protection: Thermally Protected
• Mounting: Base mount bracket (included, attached)
• Lead wires: Attached power lead with bare wire ends (brown, blue, green visible)
• Country of Manufacture: United States (Owosso, MI)

Applications

Universal electric motors like the JBISO65N are used in a wide range of light-duty industrial and commercial equipment where a compact, low-horsepower drive is needed. Common applications include small conveyor drives, medical equipment drives, office and business machines, scientific instruments, vending machines, and specialty OEM machinery. The dual-frequency 50/60Hz rating makes this motor compatible with both North American and international equipment. The base-mount frame and small form factor suit installations where space is constrained and precise, low-torque rotation is the requirement. Fractional-horsepower universal motors of this type were widely designed into OEM equipment from the 1980s through the 2000s and remain in active use for maintenance and replacement purposes.
