ITM Systems ITM-141Q Dual RF Generator LPA Waveguide Rackmount Satcom

(No reviews yet) Write a Review
SKU:
31510
MPN:
ITM-141Q
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
31.00 LBS
Shipping:
Calculated at Checkout
  • ITM Systems ITM-141Q Dual RF Generator – front and right-side angled view showing front panel with dual LED watt meters, power switch, and schematic diagram
  • ITM Systems ITM-141Q – rear panel view showing four rectangular waveguide output ports with gold flanges and attached AC power cord
  • ITM Systems ITM-141Q model label closeup showing Model No. ITM-141Q and Serial No. 115
  • ITM Systems ITM-141Q front panel closeup showing dual LPA red LED watt meter displays reading 0.06 and 0.01 watts and power ON toggle switch
  • ITM Systems ITM-141Q right-side front panel detail showing LPA 1 and LPA 2 amplifier block diagram, GIF 15796 designation, Low RF Trip/Reset toggles, LCL/RMT/AUTO/MAN and ON LINE switches with LED indicators
  • ITM Systems ITM-141Q – interior view from left side showing dual LPA amplifier assemblies, ribbon cables, transformer, and internal wiring
  • ITM Systems ITM-141Q rear panel left section – two rectangular waveguide ports with gold copper flanges, labeled DUMMY
  • ITM Systems ITM-141Q rear panel right section – two waveguide ports (one gold, one dark), D-sub connector J1 and multi-pin connector J2, AC power cord
  • ITM Systems ITM-141Q – closeup of standard 3-prong AC power cord plug
  • ITM Systems ITM-141Q – top-down interior view showing dual LPA amplifier modules, waveguide hybrid combiner assembly, blue capacitor, control PCB, power transformer, and four waveguide output ports at bottom
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
  • ITM Systems ITM-141Q Dual RF Generator ~V - Rackmount
$500.00
Was: $1,000.00
Current Stock: 3

Sold Out

Description

ITM Systems ITM-141Q Dual RF Generator LPA Waveguide Rackmount Satcom

The ITM Systems ITM-141Q is a rackmount dual-channel RF generator and power amplifier system designed for satellite communications ground station applications. It houses two independent LPA (Low Power Amplifier) chains — LPA 1 and LPA 2 — each with its own front-panel LED watt meter display showing RF output in watts. A waveguide hybrid combiner on the rear allows the two amplifier outputs to be combined or switched for redundancy or increased power, feeding four rectangular waveguide output ports. The front panel includes a main power toggle switch, Low RF Trip and Reset controls for each LPA channel, and a set of mode switches for Local, Remote, Auto, and Manual operation, as well as an On-Line selector with LED status indicators.

Specifications & What's Included

  • Model: ITM Systems ITM-141Q
  • Configuration: Dual-channel RF generator / LPA amplifier
  • RF Output Channels: 2 (LPA 1 and LPA 2)
  • Output Measurement: Dual front-panel LED digital watt meters (RF Output, watts)
  • Output Connectors: 4 rectangular waveguide ports on rear panel (flanged, copper/gold-plated)
  • Internal Architecture: Dual LPA amplifier modules, waveguide hybrid combiner, power transformer, control PCB
  • Front Panel Controls: Power ON/OFF toggle, Low RF Trip/Reset (Ch 1 & Ch 2), LCL/RMT/AUTO/MAN mode switches, ON LINE selector (1/2)
  • Rear Control Connectors: D-sub J1 (DB-15), multi-pin J2 connector for remote control interface
  • Form Factor: Rackmount (rack ears installed)
  • AC Power: Standard 3-prong line cord (included)
  • Schematic diagram printed on front-panel fascia (GIF 15796)
  • Included: Unit and AC power cord

Applications

The ITM-141Q is a satellite ground station component used in satcom uplink chains, where redundant or combined RF drive power is needed ahead of a high-power amplifier (HPA) or traveling-wave tube amplifier (TWTA). Systems like this handle the low- to medium-power RF signal generation and amplification stage, with the waveguide outputs feeding directly into the uplink chain. The dual-LPA architecture with a waveguide combiner is a classic 1+1 redundancy arrangement: either amplifier can carry the load, and the hybrid combiner allows automatic or manual switchover if one LPA trips — a standard protection scheme in commercial and government satellite ground stations. The Local/Remote and Auto/Manual control modes allow the unit to be operated from a front-panel console or integrated into a remote monitoring and control system. ITM Systems produced specialized satcom and microwave RF hardware of this type primarily from the 1980s through the 1990s, and these units remain in service in legacy ground station installations worldwide.

Condition: Used
This ITM Systems ITM-141Q Dual RF Generator has been inspected and appears to be in good condition. The front panel shows light scratching and typical surface wear consistent with rack service use; the panel labels and LED watt meter windows are intact and legible. The chassis shows normal scuffing on the top and sides. The four rear waveguide ports are present with flanges intact; some oxidation is visible on the flange surfaces, which is typical for this type of connector. Both the J1 and J2 rear control connectors are present. The AC power cord is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ITM Systems
Model:
ITM-141Q
MPN:
ITM-141Q
Type:
Dual RF Generator / LPA Amplifier
SKU:
31510
Form Factor:
Rackmount
Number of Channels:
2 (LPA 1, LPA 2)
Output Type:
Waveguide RF Output
Output Indicator:
Dual LED watt meters (LPA 1, LPA 2)
Connector Type:
Waveguide (rectangular, flanged)
Control Interface:
Local / Remote / Auto / Manual (front panel)
Remote Interface:
DB-15 connector (J1), multi-pin connector (J2)
Power Connection:
Standard 3-prong AC line cord
Front Panel Controls:
Power switch, Low RF Trip/Reset, LCL/RMT/AUTO/MAN, ON LINE
Internal Components:
Dual LPA amplifier chains, waveguide combiner/hybrid, transformer, control PCB
Application:
Satellite uplink RF amplification, satcom ground station
Condition:
Used – Inspected
Seller Notes:
Includes AC power cord. Four waveguide ports on rear panel.
Country/Region of Manufacture:
United States
Condition Notes:
ITM Systems ITM-141Q Dual RF Generator, inspected and in good used condition. Light surface wear on chassis and front panel; waveguide flanges show typical oxidation. AC power cord included. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

Satellite Transmission Systems C14922 HPA Switching and Monitor Assembly — front panel and open chassis showing internal relay matrix and wiring C14922 HPA Switching Monitor Assembly — bottom/rear view of open chassis showing relay array, wiring harness, and rackmount ears
Add to Cart
Quick view

Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor Assembly

Satellite Transmission Systems

$150.00
Was: $300.00
Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor AssemblyRedundancy switching and monitoring assembly for high-power amplifiers in satellite ground stations. Routes signal between...
45325
SKU:
45325
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Brand:
Satellite Transmission Systems
Model:
HPA Switching & Monitor Assembly
MPN:
C14922
Secondary Model:
C14922 Rev B
Type:
HPA Redundancy Switching & Monitor Assembly
SKU:
45325
Revision:
Rev B
Form Factor:
Rackmount
Number of HPA Channels:
2 (HPA 1 / HPA 2)
Control Mode:
Auto / Manual
Indicators:
HPA 1 Norm, HPA 1 Fail, HPA 2 Norm, HPA 2 Fail; ON LINE / OFF LINE
Relay Type:
Electromechanical relay matrix (visible internal relays)
Application:
Satellite ground station HPA redundancy switching
Country/Region of Manufacture:
United States
Manufacturer Location:
Hauppauge, New York
Condition:
Used – Inspected
Condition Notes:
Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor Assembly. Inspected and in good used condition. Front panel indicators and pilot lights intact. Internal relay matrix and wiring harness complete.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

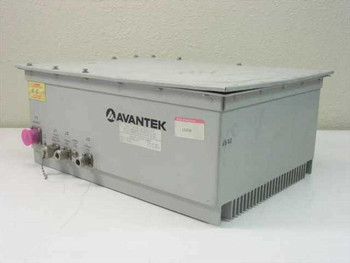

Avantek ASAT-1214-1004 RF Amplifier — front-left view showing Avantek logo, SMA coax ports J1–J3, P1 power connector, and aluminum enclosure with finned heat sink Avantek ASAT-1214-1004 RF Amplifier — rear view showing WR75 waveguide INPUT and OUTPUT ports and small indicator window
Add to Cart
Quick view

Avantek ASAT-1214-1004 4W RF Amplifier 70MHz WR75 Waveguide 305-037808-104

Avantek

$400.00
Was: $800.00
Avantek ASAT-1214-1004 4W RF Amplifier 70MHz WR75 Waveguide 305-037808-104The Avantek ASAT-1214-1004 is a 4-watt RF amplifier module housed in a sealed, finned aluminum enclosure designed for use in...
32000
SKU:
32000
Availability:
Usually ships within 1–2 business days.
Weight:
25.00 LBS
Brand:
Avantek
Model:
ASAT-1214-1004
MPN:
305-037808-104
Secondary Model:
305-037808-104
SKU:
32000
Type:
RF Amplifier
Output Power:
4 Watts
IF Frequency:
70 MHz
Waveguide Port Size:
WR75
Waveguide Ports:
INPUT and OUTPUT (WR75, rear panel)
IF Coax Ports:
J1: 70MHz Output Monitor; J2: 70MHz Out; J3: 70MHz In
IF Connector Type:
SMA (J1, J2, J3)
ALC:
Yes — ALC ADJ trimmer on front panel
Power Connector:
P1 Power connector (front panel)
Required Power Supply:
PS110-004 or P/N 310-037769-001 or 310-037769-002
Form Factor:
Enclosed RF Package / Benchtop
Enclosure Material:
Aluminum alloy, finned heat sink sides
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only — power supply (PS110-004) not included
Application:
Satellite uplink/downlink IF amplification, microwave RF systems
Condition Notes:
Used condition, pulled from service. Aluminum enclosure shows wear; SMA ports and power connector intact. Rear WR75 input flange has oxidation. Requires separate power supply (not included).
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

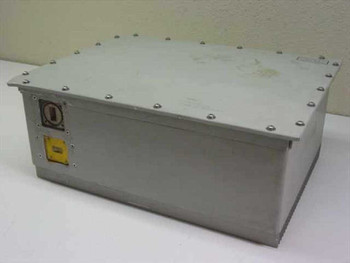

Avantek ASAT-1214-002 2W 70MHz RF Amplifier – front and right-side view showing Avantek branding label and connector panel Avantek ASAT-1214-002 RF Amplifier – top and left-side view showing sealed aluminum enclosure with bolt-down cover
