Description
Isra Vision Systems AG Smash Web Processor V1.0 ISA Machine Vision Card
The Isra Vision Systems AG Smash Web Processor V1.0 is a full-length ISA-bus image processing card designed for industrial web inspection and machine vision applications. Built by Isra Vision Systems AG, a German manufacturer specializing in automated surface inspection systems, this card serves as the processing engine within an Isra Smash web inspection platform. It interfaces with line-scan or area cameras to acquire, process, and analyze image data in real time for defect detection on continuous web materials such as film, paper, foil, and textiles.
Specifications & What's Included
- Manufacturer: Isra Vision Systems AG (Germany)
- Product: Smash Web Processor, Version 1.0
- PCB silkscreen designation: SMASH WEB PROCESSOR C V1.0 LB
- Bus interface: ISA (full-length card)
- External connectors (bracket-mounted): Centronics-style parallel connector + DB25 female connector
- On-board headers: Multiple IDC ribbon cable headers (front and rear of card)
- Main processor IC: Large quad-flat-pack IC (center of card — markings not fully legible in photos)
- Secondary controller IC: ALi-branded IC visible on reverse component side
- On-board memory: Multiple DRAM/SRAM ICs in array configuration
- Card only — no cables, documentation, or mounting accessories included
Applications
Isra Vision Systems AG is a German manufacturer of automated optical inspection (AOI) systems used widely in converting and printing industries. The Smash web inspection system was designed to inspect continuously moving web materials — such as plastic film, paper, aluminum foil, nonwovens, and printed substrates — at line speed for surface defects including holes, streaks, edge tears, and print anomalies. The Web Processor card is the central computation board that receives image data from camera hardware and runs the detection algorithms in real time. These ISA-bus cards date from the mid-to-late 1990s era of industrial PC-based machine vision, when ISA was the dominant expansion bus for real-time image capture and processing in industrial automation systems. They remain relevant today as replacement or spare boards for facilities still operating legacy Isra Smash inspection lines.

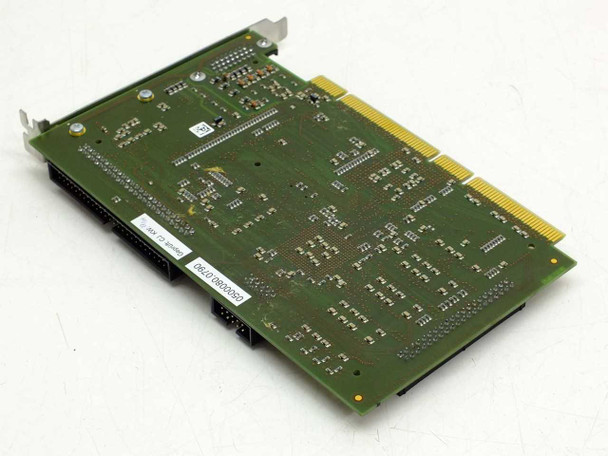

This Isra Vision Systems AG Smash Web Processor V1.0 ISA machine vision card has been pulled from a working industrial environment where it was previously in service. It has not been powered up or tested at our facility. The card appears to be in good used condition overall — the PCB is clean with no visible cracked traces or obvious physical damage. There are handwritten marker numbers ('2' and '3') on the bracket near the external connectors, consistent with lot or slot labeling in a production setting. The ISA edge connector gold fingers show normal oxidation expected from a used card. Please review all photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Isra Vision Systems AG |
Model: |
Smash Web Processor V1.0 |
MPN: |
Smash Web Processor V1.0 |
SKU: |
47112 |
Type: |
Machine Vision ISA Processor Card |
Form Factor: |
ISA Full-Length Card |
Bus Interface: |
ISA |
Application: |
Web Inspection / Machine Vision |
Connector Types: |
Centronics-style parallel, DB25 female, IDC ribbon headers |
Number of External Connectors: |
2 (bracket-mounted: Centronics + DB25) |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
Card only — no cables, documentation, or mounting accessories included. |
Condition Notes: |
This Isra Vision Systems AG Smash Web Processor V1.0 ISA card was pulled from a working industrial environment. Not powered or tested at our facility. PCB is clean with no visible damage; handwritten slot labels on bracket. |
