ISRA Vision 4-Camera Surface Defect Inspection System Solar Panel QC w/ Accessories

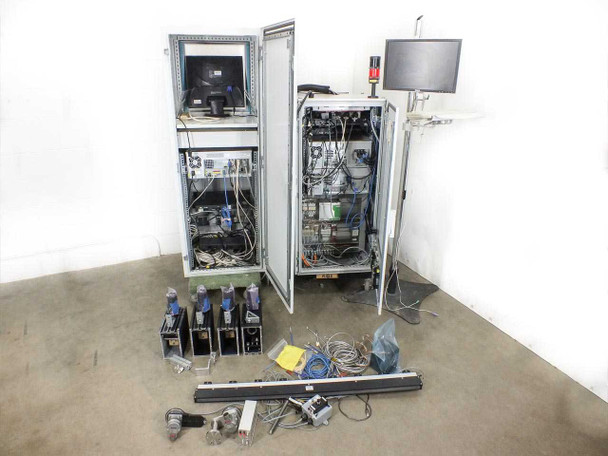

This is a complete ISRA Vision automated machine vision system configured for surface defect inspection of solar panels and solar cells. The system comprises two floor-standing industrial control cabinets housing ISRA Vision rackmount image processing units, a rackmount PC/server assembly, a PCM rackmount UPS, Phoenix Contact DIN rail I/O modules, terminal block arrays, and associated power and signal wiring. Four enclosed camera units with lens assemblies interface with the processing cabinets to capture surface imagery for defect detection across manufactured panel surfaces.
Specifications & What's Included
- Brand: ISRA Vision
- System type: 4-camera automated surface defect inspection (machine vision / AOI)
- Application: Solar panel and solar cell topical quality control inspection
- Taller cabinet dimensions: 27" W x 25" D x 63" H
- Shorter cabinet dimensions: 25" W x 24" D x 55" H
- Includes: 2 floor-standing rackmount control cabinets

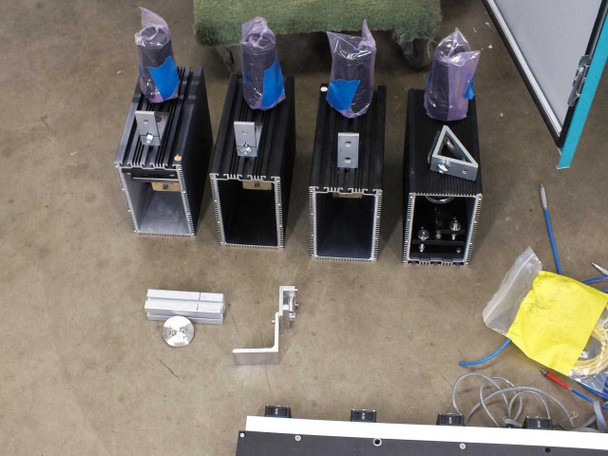

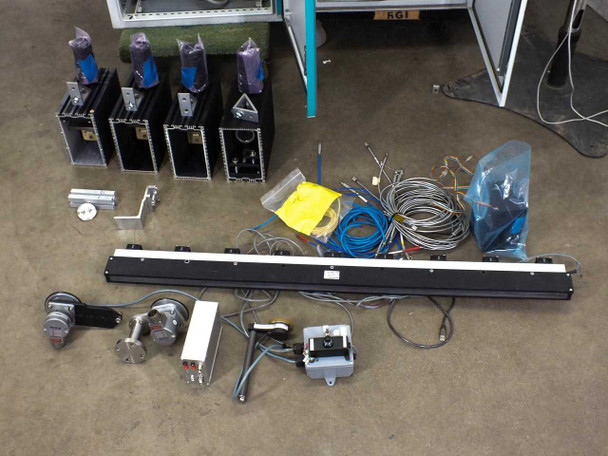

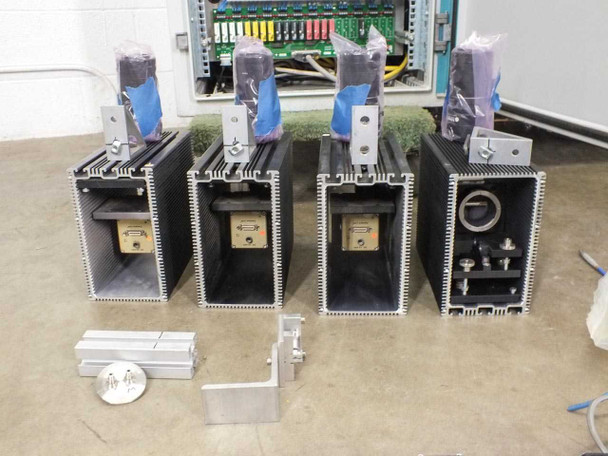

- Includes: 4 enclosed aluminum camera units with lens assemblies (lens caps installed)

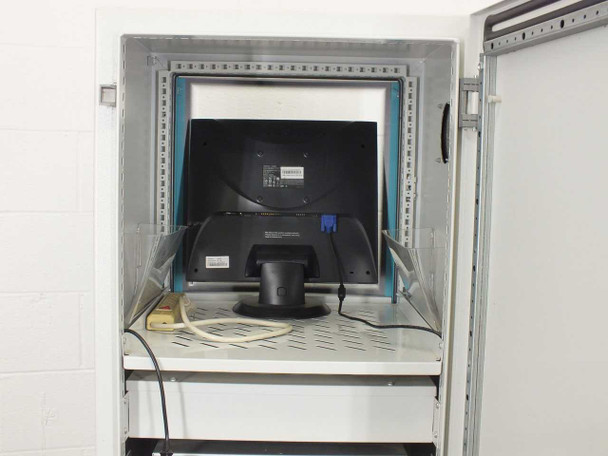

- Includes: Flat-panel LCD monitor on articulating floor stand
- Includes: Linear illumination bar assembly

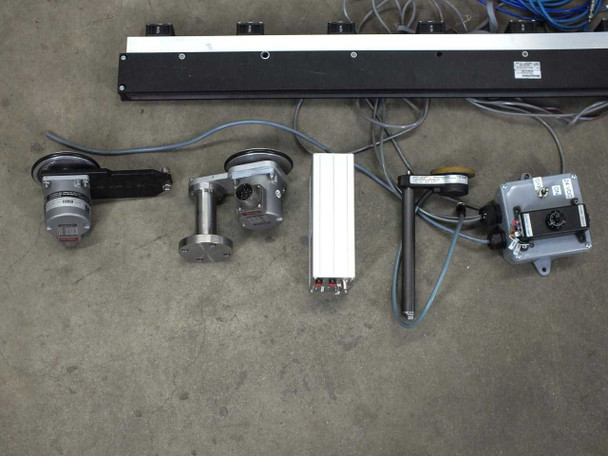

- Includes: Assorted peripheral sensors (rotary encoders, linear transducer, scanner unit)
- Includes: Mounting brackets and hardware

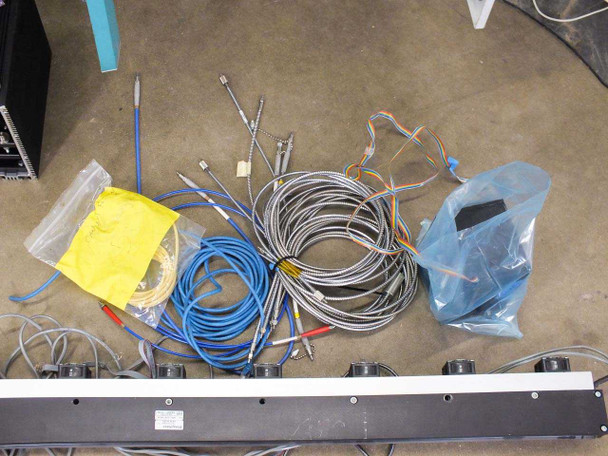

- Includes: Substantial collection of interconnecting cables (Ethernet, multi-conductor shielded, pneumatic tubing)

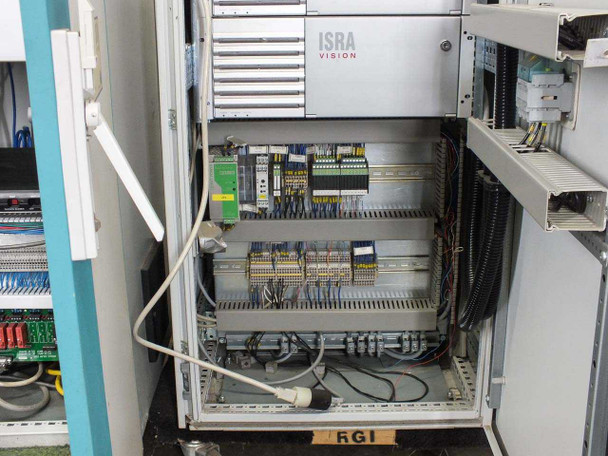

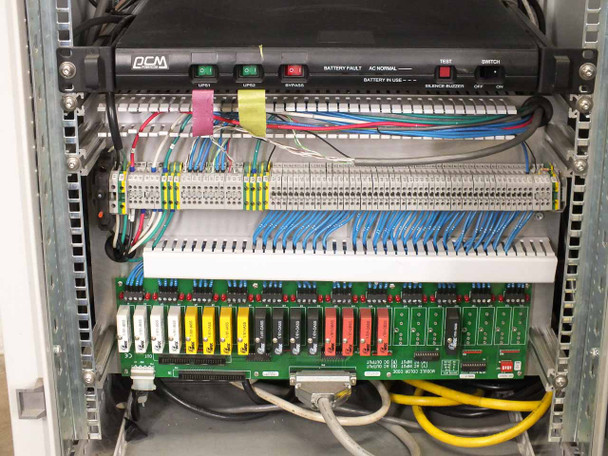

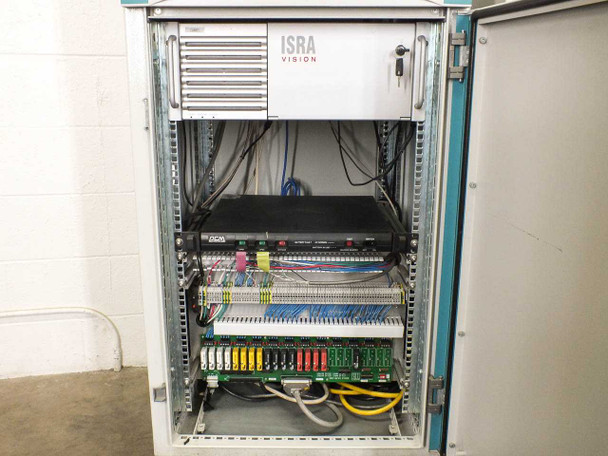

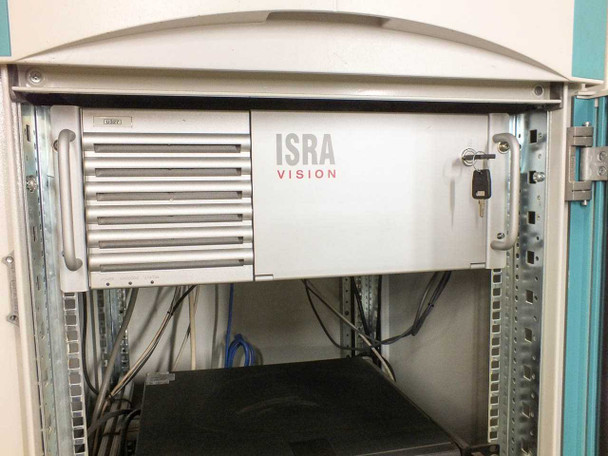

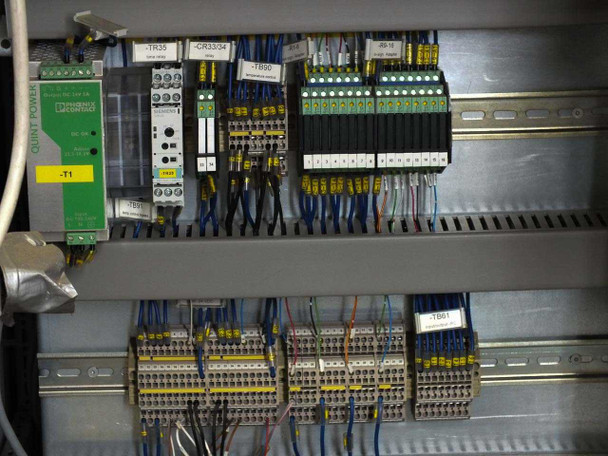

- Cabinet 1 internal components: ISRA Vision rackmount processing unit, PCM rackmount UPS, DIN rail terminal blocks, relay and I/O modules

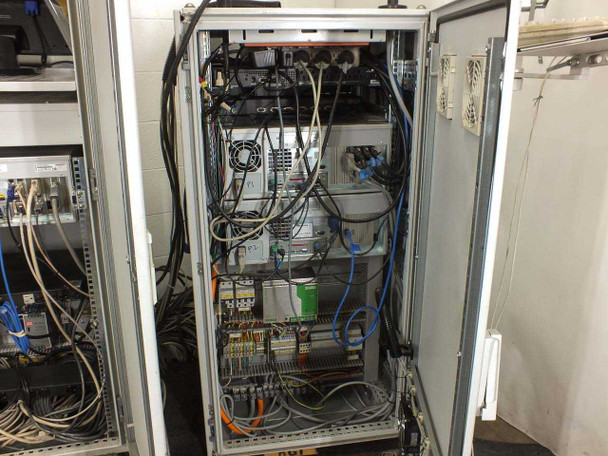

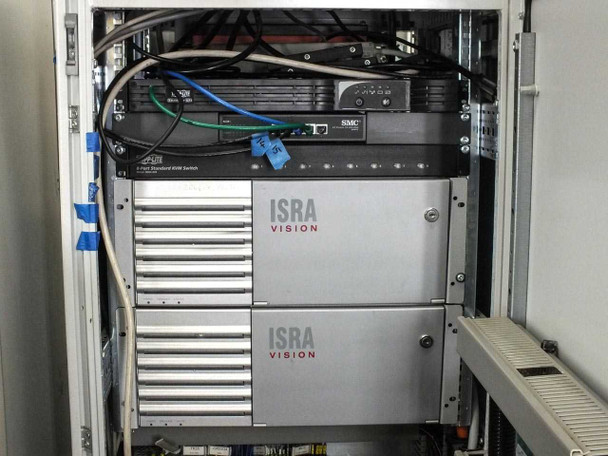

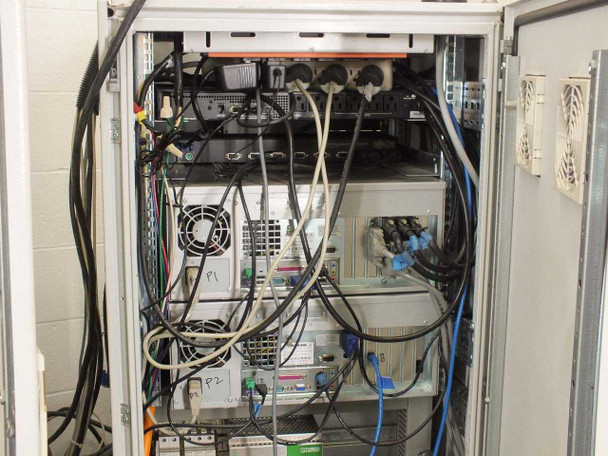

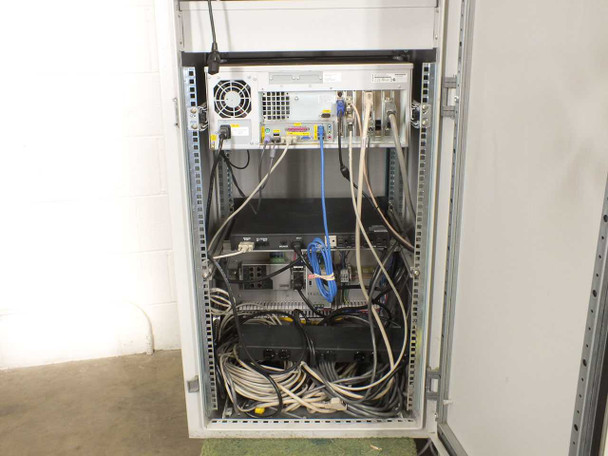

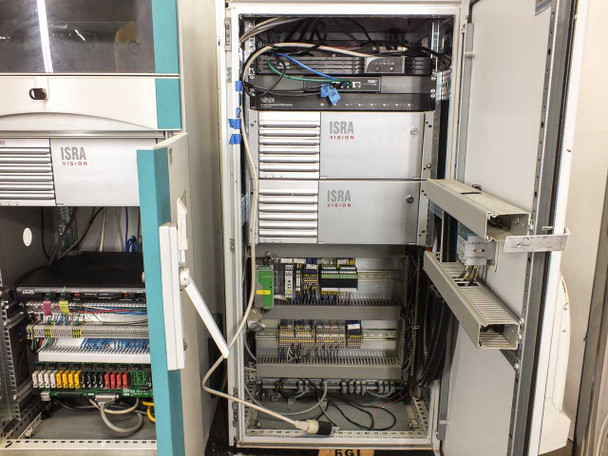

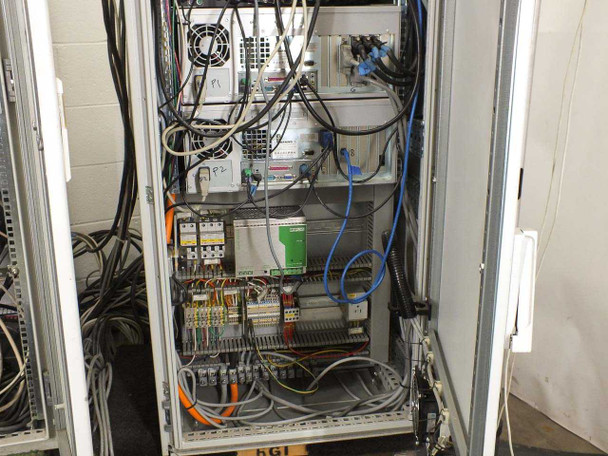

- Cabinet 2 internal components: Two ISRA Vision rackmount processing units, rackmount PC units (P1/P2), network switch, Phoenix Contact DIN rail components, circuit breakers
- Everything photographed is included in this listing
Applications
ISRA Vision is a German manufacturer specializing in industrial machine vision and surface inspection systems. Systems of this type are deployed in photovoltaic manufacturing lines to perform automated optical inspection (AOI) of solar cells and panels, detecting surface defects such as cracks, scratches, contamination, and coating irregularities that would affect panel efficiency or structural integrity. This class of system typically integrates with the production line conveyor or handling system, using structured illumination and multi-camera imaging to scan panel surfaces at production speed and flag defective units for rejection or rework. Beyond solar manufacturing, ISRA Vision surface inspection platforms have been used in glass, web, film, and display panel production. This system represents a significant capital investment and would be of interest to solar manufacturers, machine vision integrators, or research facilities working with photovoltaic quality control processes.
ISRA Vision 4-Camera Surface Defect Inspection System in used condition, originating from a solar cell and panel manufacturing facility. This professional-grade machine vision system includes two floor-standing control cabinets (taller: 27" x 25" x 63", shorter: 25" x 24" x 55"), four enclosed camera units with lens assemblies, flat-panel LCD monitor on articulating stand, linear illumination bar, sensors, mounting brackets, and comprehensive interconnecting cables. Interior components include ISRA Vision rackmount processing units, PCM rackmount UPS, Phoenix Contact DIN rail I/O modules, terminal blocks, and rackmount PC/server units. Cosmetic condition is consistent with industrial use with no significant visible damage. Suitable for buyers with expertise in complex machine vision equipment evaluation and deployment.
