The Integral Vision OMNI LD.400MM is an automated machine vision quality control inspection system manufactured by Integral Vision (a division of MEDAR, Inc.) in Farmington Hills, Michigan. The system consists of two main components: a rackmount controller/processing unit and a separate enclosed camera head unit housing a Rodenstock lens assembly, working together to perform automated optical inspection (AOI) and dimensional quality control in industrial manufacturing environments. The system is rated 100/240 VAC, 50/60 Hz, 5 kVA and is made in the USA.

Specifications & What's Included

• Brand: Integral Vision, a Division of MEDAR, Inc. — Farmington Hills, MI
• Model: OMNI LD.400MM

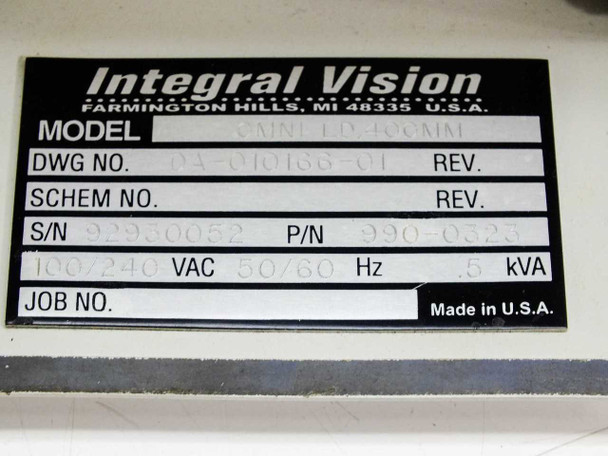

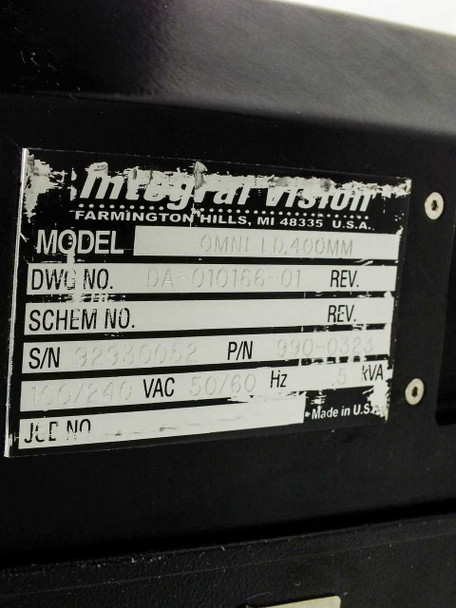

• Drawing (DWG) No.: DA-010166-01
• Part Number (P/N): 990-0323
• Power: 100/240 VAC, 50/60 Hz, 5 kVA
• Country of Manufacture: Made in USA

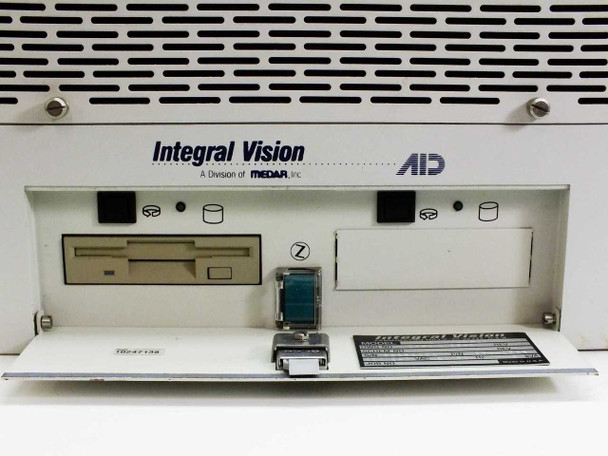

• Controller unit: benchtop/rackmount enclosure with internal floppy drive and Zip-style removable media drive

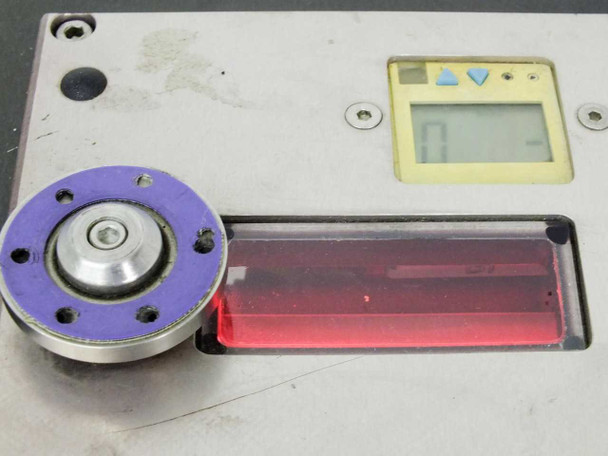

• Camera enclosure: enclosed black housing with Rodenstock lens mount (purple-ring lens assembly), red filter window, and small digital display/keypad on top
• Rear panel connectors: DB15, DB9, DB25, and high-density multi-pin SCSI-style connectors; IEC AC inlet; cooling fan; multiple expansion card slot covers
• Internal camera enclosure: Rodenstock lens assembly, wiring harnesses (orange, red, multi-conductor), and internal sub-assembly including a BIAS-labeled module

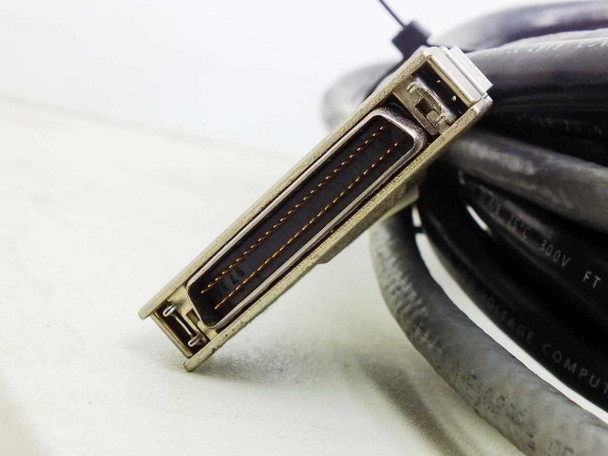

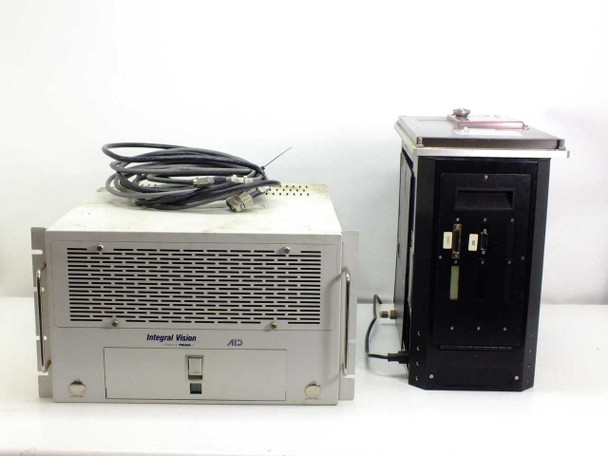

• Included: controller unit, camera enclosure unit, and multi-pin interconnect cable (DB15 and high-density SCSI-style connectors)
• Ships in two separate boxes — contact us for an accurate freight rate before ordering
