Intel P8279-5 Display Driver Board 31-710011-001 Rev X1 1976 Vintage PCB
This is a vintage Intel Display Driver Board built around the Intel P8279-5 keyboard and display controller IC, dated 1976. The board carries Intel assembly number 31-710011-001 (also referenced as 31-710011-00), revision X1. The 8279 was Intel's dedicated programmable keyboard and display interface controller, introduced in the mid-1970s to offload keyboard scanning and multiplexed display management from the host CPU in early microcomputer and industrial control designs.
Specifications & What's Included
- Board designation: Display Driver Board
- Assembly part number: 31-710011-001 (also listed as 31-710011-00)
- Assembly reference: 01238
- Board revision: Rev X1
- Main controller IC: Intel P8279-5 (8279 Programmable Keyboard/Display Interface)
- IC date code: L9500585 — manufactured 1976
- Additional ICs: multiple DIP-package logic and support chips visible on board
- Connectors: edge connector and red DIP header connector visible on board
- Form factor: bare PCB module (no chassis or enclosure)
- Board only — no additional accessories included
Applications
The Intel 8279 (P8279-5) is a programmable peripheral interface chip designed specifically to handle keyboard scanning and multiplexed seven-segment or LED display driving in early microprocessor systems. It was widely used in 8080- and 8085-based systems from the mid-1970s through the early 1980s, relieving the host CPU of the repetitive task of scanning a keyboard matrix and refreshing a multiplexed display. Systems built around Intel's MCS-48 and MCS-51 families, early industrial terminals, process controllers, and scientific instruments of the era commonly incorporated the 8279 for front-panel keyboard and numeric display interfaces. This display driver board would have served as the interface between a host processor and a front-panel numeric or alphanumeric display assembly in an instrument or industrial control system of the 1976 period. Today, these boards are sought by technicians maintaining vintage Intel-based equipment, engineers studying early microprocessor peripheral design, and collectors of 1970s-era computing hardware.

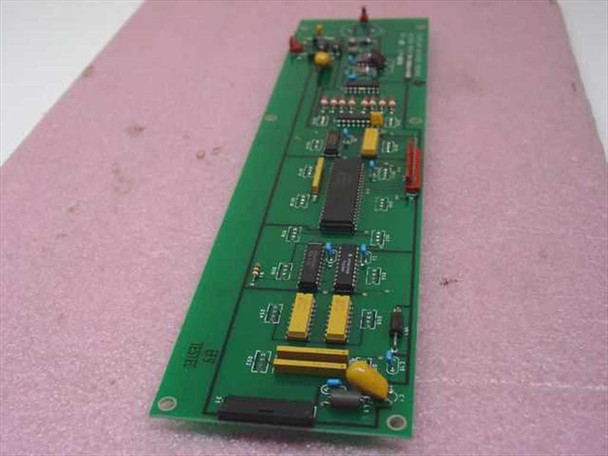

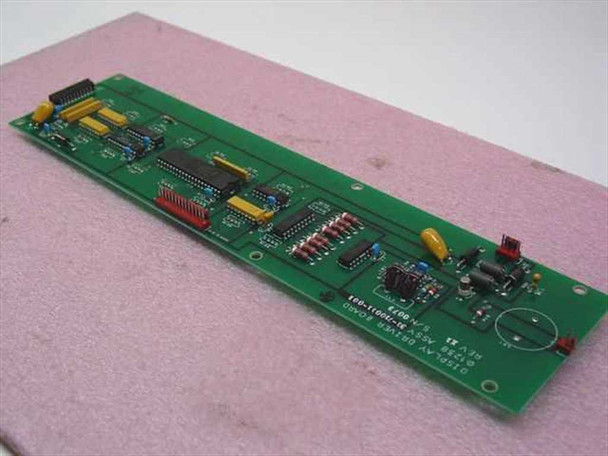

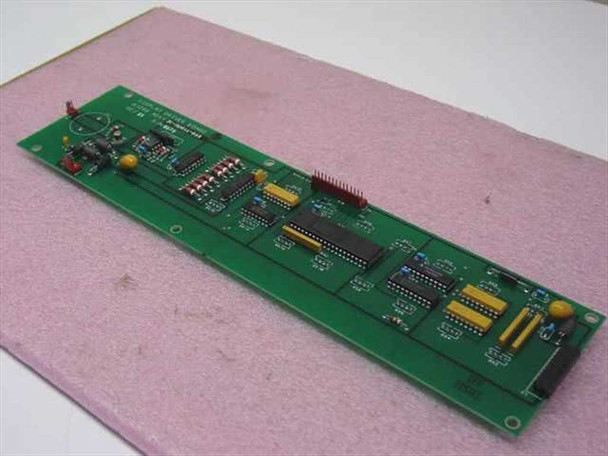

This Intel P8279-5 Display Driver Board (ASSY 31-710011-001, Rev X1) has been inspected and appears to be in good condition. The board shows normal aging consistent with its 1976 manufacture date — light oxidation on component leads is typical and expected for a board of this era. The PCB itself is intact with no visible cracks, broken traces, or missing components. The Intel P8279-5 IC and surrounding DIP components are all present and seated. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
P8279-5 |
MPN: |
31-710011-001 |
Secondary Model: |
31-710011-00 |
Type: |
Display Driver Board / Keyboard-Display Controller PCB |
SKU: |
34453 |
Chipset / Main IC: |
Intel P8279-5 (8279 Keyboard/Display Controller) |
Board Revision: |
Rev X1 |
Date Code / Year: |
1976 |
Assembly Number: |
01238 |
Form Factor: |
Bare PCB / Card Module |
Condition: |
Used – Inspected and Pulled from Working Environment |
Seller Notes: |
Board only; no chassis or enclosure included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Intel P8279-5 Display Driver Board 31-710011-001 Rev X1 (1976) has been inspected and is in good condition. Board is intact, all ICs present. Normal aging for a 1976-era PCB. Please contact us with any questions. |
