Description
Intel LDS48GPB StorageExpress Peripheral Network Backup DAT Drive AS-IS
The Intel LDS48GPB is a StorageExpress Peripheral — an external network-attached backup unit built around a DAT (Digital Audio Tape) drive. Designed as part of Intel's StorageExpress network backup system from the mid-1990s, this unit serves as the peripheral storage enclosure that pairs with a host controller board to provide automated tape backup over a network. This unit contains its DAT drive but is missing the controller board, and is being sold AS-IS for parts or repair.
Specifications & What's Included
- Model: Intel LDS48GPB
- Product Line: Intel StorageExpress
- Serial Number: A05284092 (internal reference)
- Manufacture Date: 09/17/1996
- Drive Type: DAT (Digital Audio Tape) — drive present and installed
- Controller Board: Missing — not included

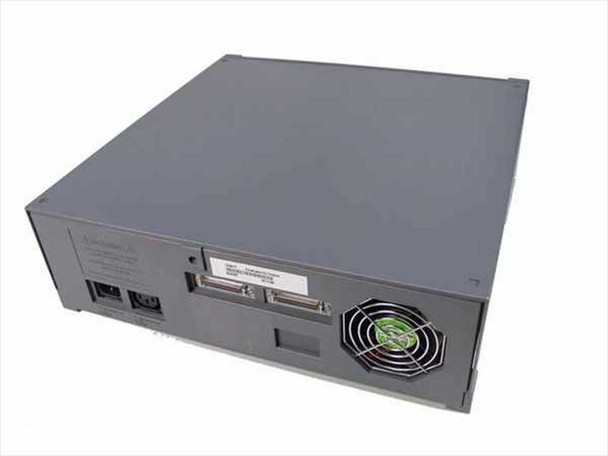

- Rear Interface: Two 50-pin SCSI Centronics connectors (visible on rear panel)
- Rear: AC power inlet and cooling fan

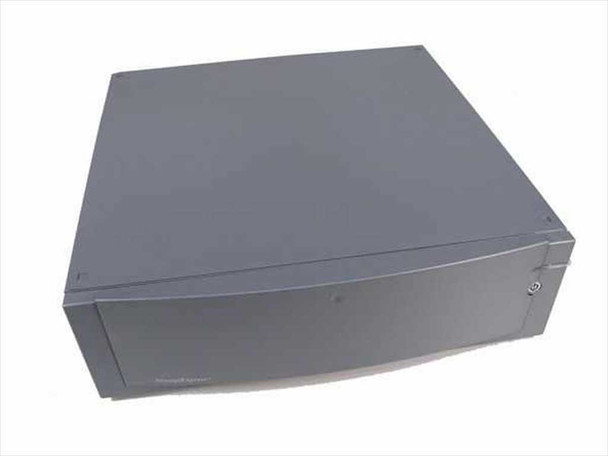

- Enclosure: Gray desktop/external form factor with front DAT drive bay and key lock

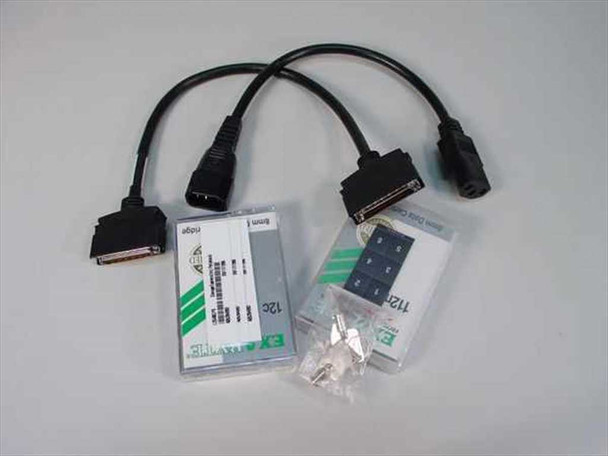

- Includes: SCSI cables and small accessory packs as shown in photos

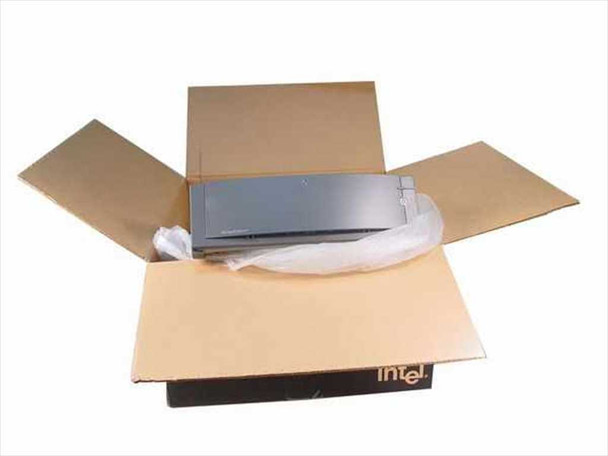

- Original Intel-branded shipping box included
Applications
The Intel StorageExpress system was a mid-1990s network backup solution aimed at small-to-medium business environments running Intel-based servers. The peripheral unit housed the DAT tape drive while a separate controller board (installed in the server) handled scheduling, network communication, and tape management. DAT tape backup was the dominant affordable backup medium of the era, offering gigabytes of capacity on compact cassettes at a time when hard drives were far smaller than today. This peripheral would connect via SCSI to a host system equipped with the matching StorageExpress controller. Today, units like this are sought primarily for parts, repair, or vintage computer restoration projects.
This Intel LDS48GPB StorageExpress Peripheral network backup unit contains its DAT drive but is missing the controller board. The unit powers up; however, we were unable to fully test it due to the missing controller. It is being sold AS-IS for parts or repair only, with no guarantee of full functionality. Accessories shown in the photos (SCSI cables and small accessory packs) are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
LDS48GPB |
MPN: |
LDS48GPB |
Secondary Model: |
A05284092 |
SKU: |
15722 |
Type: |
Network Backup Peripheral / DAT Tape Drive Unit |
Product Line: |
Intel StorageExpress |
Drive Type: |
DAT (Digital Audio Tape) |
Controller Board: |
Missing — not included |
Manufacture Date: |
09/17/1996 |
Interface: |
SCSI (50-pin Centronics connectors visible on rear) |
Form Factor: |
Desktop / External Peripheral |
Seller Notes: |
Includes DAT drive, cables, and accessories shown in photos. Controller board is missing. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Intel LDS48GPB StorageExpress Peripheral: DAT drive present, controller board missing. Powers up but could not be fully tested. Sold AS-IS for parts or repair only — no functionality guarantee. Cables and accessories shown in photos included. |
