Intel III514B Series IV In-Circuit Emulation System I2ICE IPAT 164132-006

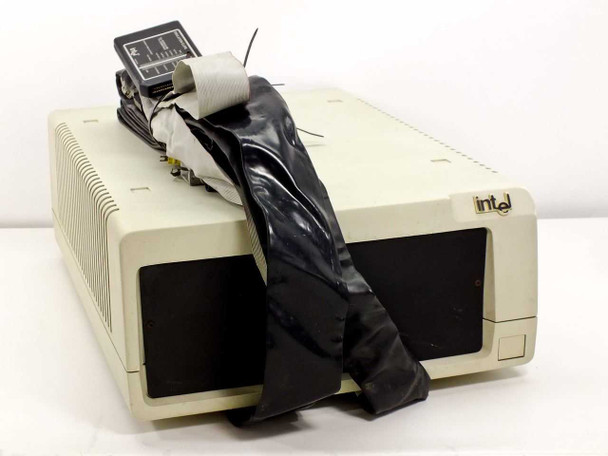

The Intel III514B Series IV is a desktop in-circuit emulation (ICE) system manufactured in 1985 for real-time debugging and development of Intel processor-based embedded systems. This benchtop unit provides hardware emulation capabilities and connects to development hosts via ICE-LINK interfaces for program execution control, breakpoint setting, and trace data collection during embedded system development and testing.
Specifications & What's Included
- Model: III514B Series IV EMUL (Secondary model: 108020-001)

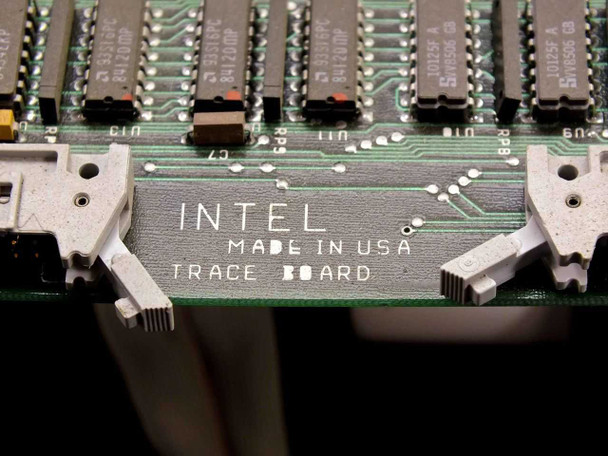

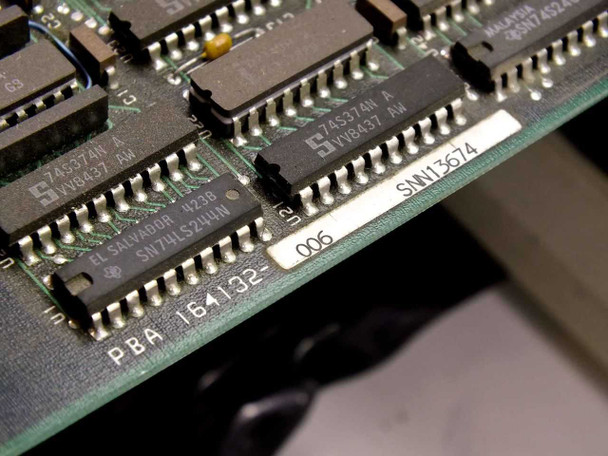

- Trace Board: PBA 164132-006
- I2ICE/IPAT Target Interface: ECB #01415, Assy #01416
- Map Board: PBA 163229-005

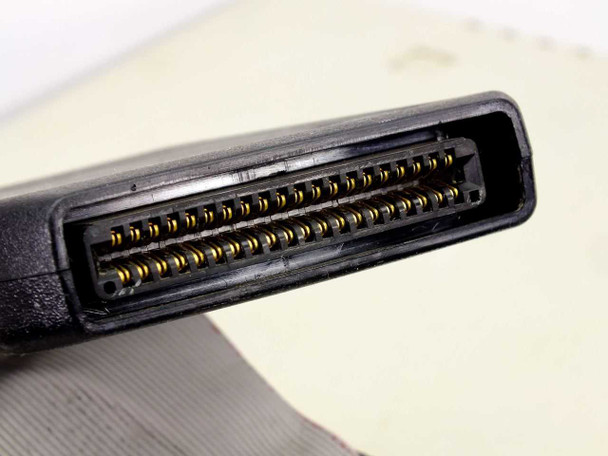

- Emulation Clips: 164070-001 (included)

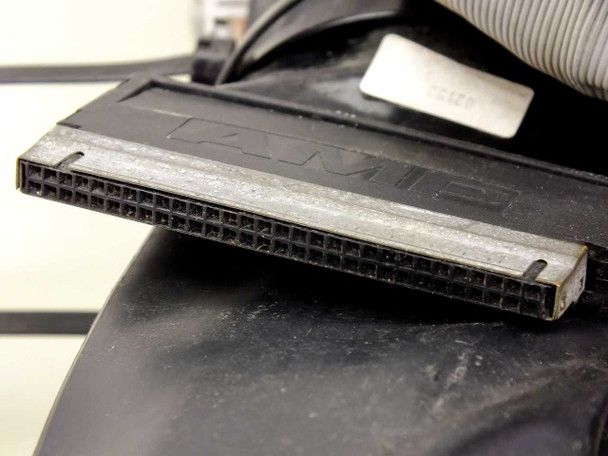

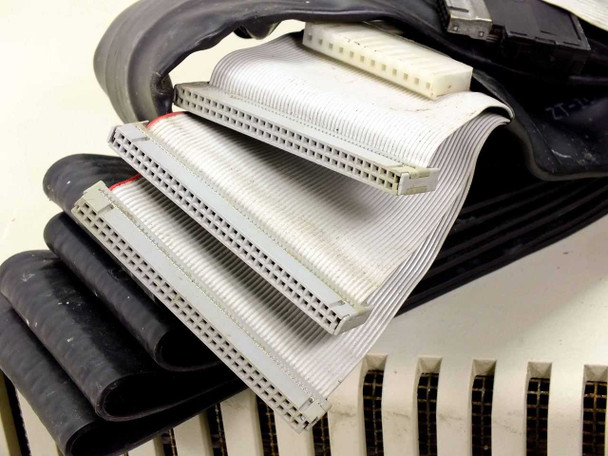

- Ribbon Cable Assemblies: 163155-003 (included)
- Power Requirements: 120VAC, 50/60Hz, 12A

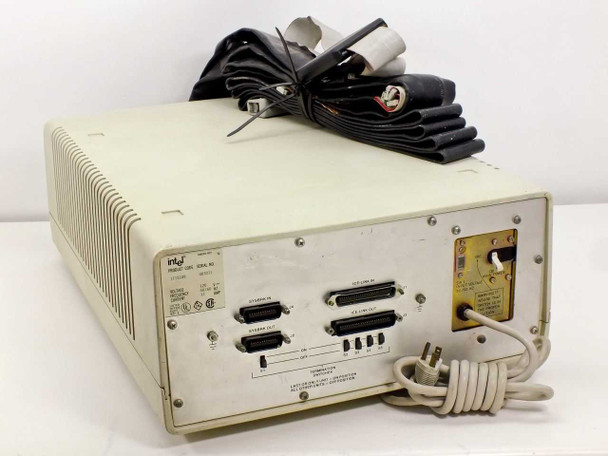

- Interface Connectors: ICE-LINK IN/OUT, SYSBRK IN/OUT
- Signal Compatibility: TTL compatible

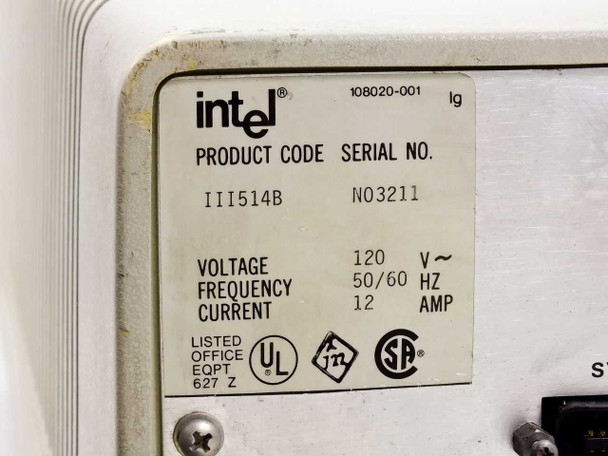

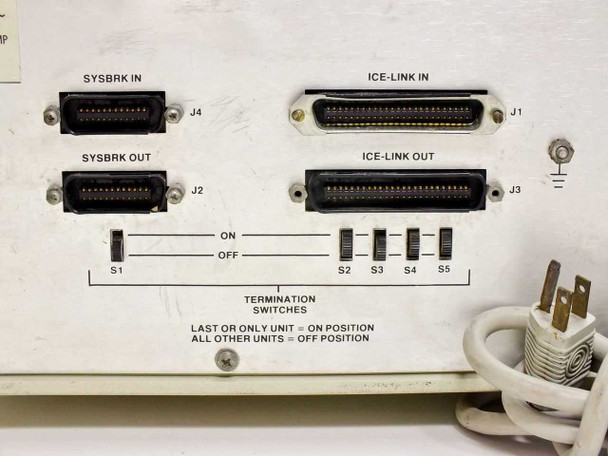

- Termination Switches: S1-S5 (rear panel)
- Form Factor: Desktop/benchtop with rear panel termination
- Certifications: UL Listed, CSA Certified
- Year of Manufacture: 1985
- Country of Origin: United States
Applications
In-circuit emulators like the III514B were essential tools for firmware and embedded systems development in the mid-1980s and early 1990s. These systems supported Intel microprocessor-based targets and were used for real-time program debugging, execution control, and hardware-software co-verification on industrial control systems, telecommunications platforms, and other embedded applications of that era. The ICE-LINK interface allowed developers to connect the emulator to their development host computers for interactive debugging, setting breakpoints, stepping through code execution, and capturing trace data. This type of emulation equipment was standard in embedded systems laboratories, OEM development centers, and industrial automation facilities during the 1980s, before modern in-circuit debuggers and software simulation tools became the dominant approach.

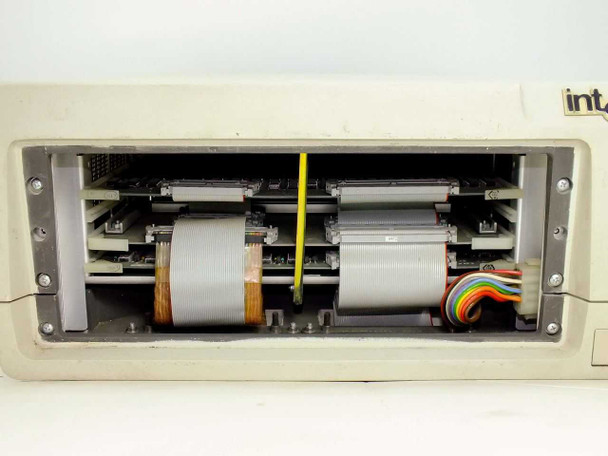

This Intel III514B Series IV In-Circuit Emulation System is being sold as-is for parts or repair. It has not been powered up or tested at our facility and is not guaranteed to be functional. The system is cosmetically intact with age-appropriate patina consistent with vintage 1985 equipment. All included components are present: Trace Board (PBA 164132-006), I2ICE/IPAT Target Interface (ECB #01415 / Assy #01416), Map Board (PBA 163229-005), emulation clips (164070-001), and ribbon cable assemblies (163155-003). Connectors and contacts show normal vintage wear. Please view our photo set and contact us if you have any questions.
