Intel DQ82536EP 56K V.92 PCI Data Fax Modem RJ-11 Phone Line Card

Intel DQ82536EP 56K V.92 PCI Data Fax Modem RJ-11 Phone Line Card

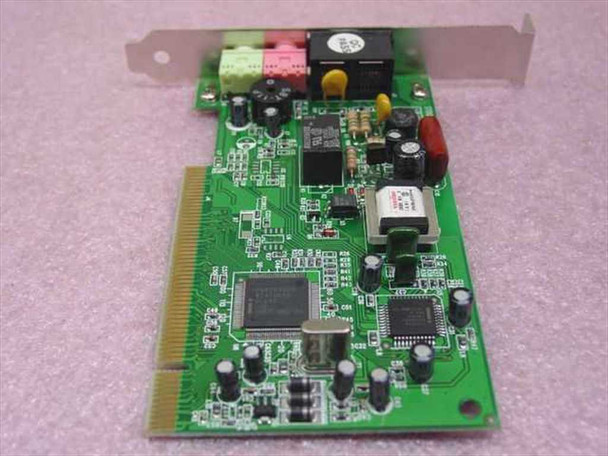

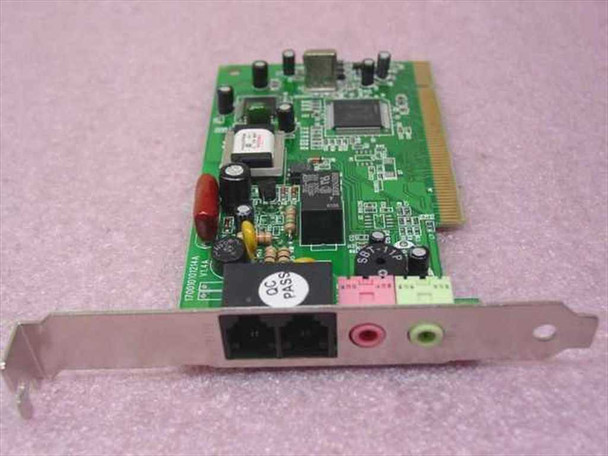

The Intel DQ82536EP is a 56K V.92 internal PCI modem card supporting both data and fax communications over standard analog phone lines. Built around Intel's own DQ82536EP controller chipset, it installs in any standard PCI slot and connects via RJ-11 to a phone line, with a second RJ-11 pass-through port for a telephone handset. The card also includes 3.5mm audio in and out jacks for voice/answering machine functionality. Board revision V1.4A is visible on the PCB.

Specifications & What's Included

• Model: Intel DQ82536EP

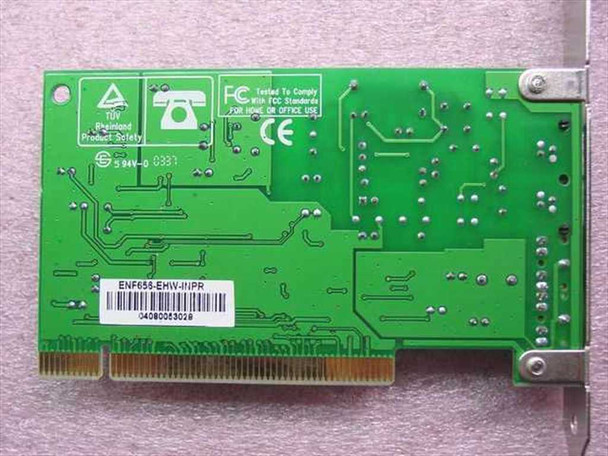

• Secondary part number: ENF655-EMW-IIPR
• Controller chipset: Intel DQ82536EP (LQFP, Intel-marked)
• Modem standard: V.92 / V.90 (56K)
• Fax standard: V.34 fax capable
• Interface: Standard PCI (32-bit)
• Line connector: RJ-11 (LINE)
• Phone pass-through: RJ-11 (PHONE)
• Audio jacks: 3.5mm stereo out (green), 3.5mm mic/audio in (pink)
• PCB revision: V1.4A
• FCC certified for home and office use
• Includes: Card only — no driver disc, cables, or documentation

Applications

The Intel DQ82536EP is a dial-up modem card from the early-to-mid 2000s, designed for desktop PCs with a free PCI slot. V.92 was the final major upgrade to the V.90 56K dial-up standard, adding faster upstream speeds (up to 48 Kbps vs. the previous 33.6 Kbps) and the "modem-on-hold" feature that allowed a dial-up connection to be paused while taking a phone call. These cards were widely used in home and small-office PCs during the dial-up era and were compatible with Windows 98, ME, 2000, and XP. Today they still see use in niche applications such as fax-over-POTS lines, remote site dial-up access, legacy point-of-sale or alarm-panel communications, and systems that require an analog modem connection where broadband is unavailable or impractical.
