Description
Intel 350020-001 EtherExpress 16-Bit ISA LAN Adapter 308431-001 AUI RJ45
16-bit ISA Ethernet network adapter for legacy PC systems. Features Intel 82586 controller and supports both AUI (10BASE5) and RJ45 (10BASE-T) connections at 10 Mbps.
Specifications & What's Included
- Intel 350020-001 / 308431-001
- 16-bit ISA half-length card
- Intel 82586 chipset
- Connectors: AUI (DB15) and RJ45
- 10 Mbps Ethernet (10BASE-T, 10BASE5)
- Compatible with IBM PC/AT, 286, 386, 486, and Pentium ISA systems
- 20 MHz oscillator
- Card only; no accessories or software included
Applications
This adapter was used to add Ethernet networking to older personal computers and workstations from the 1980s and early 1990s. It supports both thick coaxial cable (AUI) and twisted-pair (RJ45) connections, allowing integration into existing 10 Mbps Ethernet networks. Typical applications include networked IBM PC/AT systems and early Intel-based servers requiring legacy ISA slot compatibility.
Condition: Used
This Intel 350020-001 EtherExpress 16-Bit ISA LAN Adapter has been visually inspected and appears to be in good used condition. The PCB is clean with no obvious physical damage, cracked traces, or bent pins. The bracket is intact and the AUI and RJ45 ports appear undamaged. Normal light wear consistent with removal from a PC system is present. This card has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Intel 350020-001 EtherExpress 16-Bit ISA LAN Adapter has been visually inspected and appears to be in good used condition. The PCB is clean with no obvious physical damage, cracked traces, or bent pins. The bracket is intact and the AUI and RJ45 ports appear undamaged. Normal light wear consistent with removal from a PC system is present. This card has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Intel |
Model: |
350020-001 |
MPN: |
350020-001 |
Secondary Model: |
308431-001 |
Type: |
16-Bit ISA Ethernet LAN Adapter |
SKU: |
13268 |
Series: |
EtherExpress 16 |
Bus Type: |
ISA (16-bit) |
Interface Type: |
ISA 16-bit |
Network Controller Chipset: |
Intel 82586 / 201969-221 |
Connector Type: |
AUI (DB15), RJ45 |
Compatible With 1: |
IBM PC/AT and compatible 286 systems |
Compatible With 2: |
386, 486, and Pentium ISA-based PCs |
Form Factor: |
Half-Length ISA Card |
Network Standard: |
Ethernet (10BASE-T, 10BASE5 AUI) |
Data Rate: |
10 Mbps |
FCC Class: |
Class B |
Oscillator Frequency: |

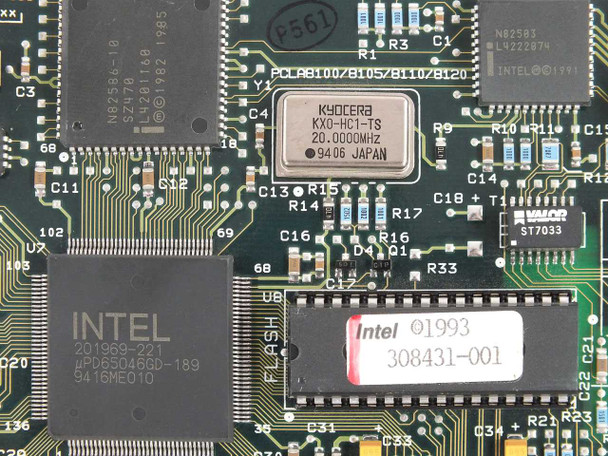

20.0000 MHz (Kyocera KXO-HC1-TS) |
Transformer: |

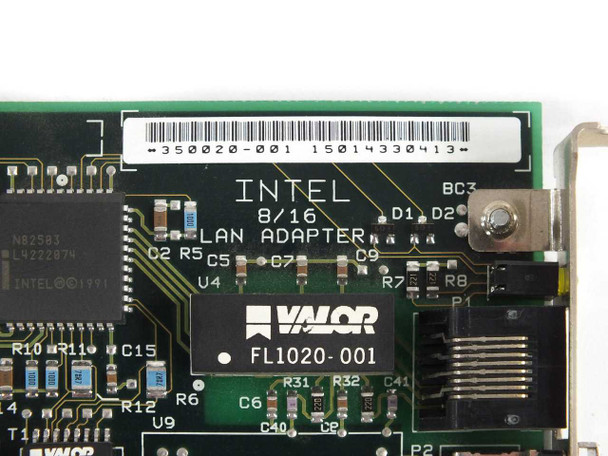

Valor FL1020-001 |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Card only; no accessories or software included. |
Condition Notes: |
Intel 350020-001 EtherExpress 16-bit ISA LAN adapter in good used condition. PCB clean, bracket intact, AUI and RJ45 ports undamaged. Not bench-tested. Please contact us with any questions. |
