Indexing Drive Table 25.180.1SRBH2 3HP 2.2KW 3-Phase Motor CD DVD Carousel
Rotary indexing drive table with integrated 3-phase induction motor, removed from CD/DVD silkscreen printer carousel equipment. Designed to position and rotate work platens during automated printing operations.
Specifications & What's Included

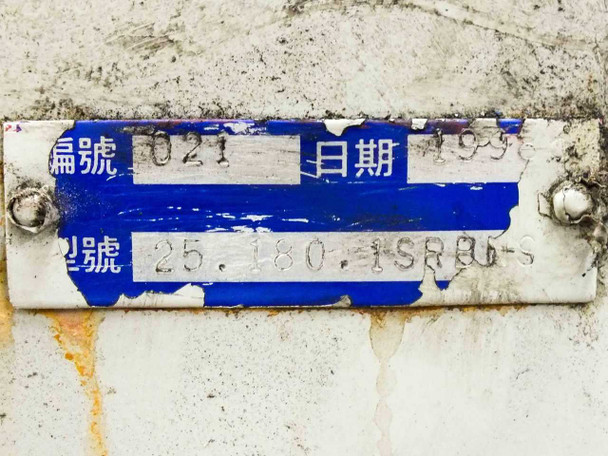

- Model: 25.180.1SRBH2 (Taiwan manufacture, 1998)
- Motor: 3HP / 2.2KW, 3-phase induction, 220/380V, 50/60Hz
- Output: 1430 RPM (50Hz) / 1720 RPM (60Hz), 4-pole, Frame 100L
- Bearings: 6206ZZ, 6305ZZ; IP-44 rated; Insulation Class E
- Motor amperage: 9.0/5.2A (Delta) / 8.0/4.6A (Star)
Applications
Indexing tables with 3-phase motors were standard in automated CD/DVD printing and labeling systems, providing repeatable positioning for carousel-based workflows. This unit operated in multi-station silkscreen printer setups common in optical media manufacturing from the 1990s-2000s. Compatible with systems requiring 220/380V 3-phase power and 50/60Hz operation.
Condition: Used

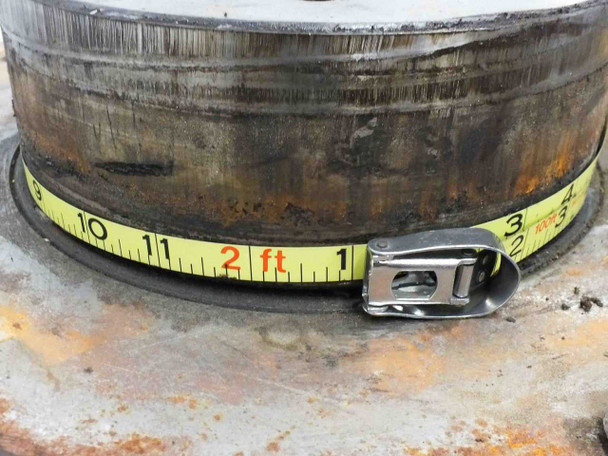

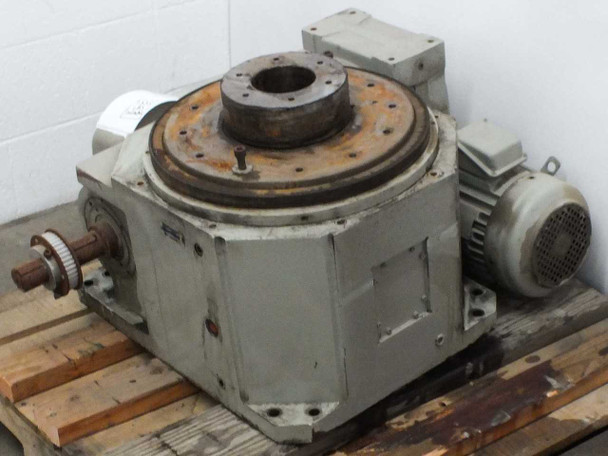

This Indexing Drive Table, model 25.180.1SRBH2, is a heavy-duty industrial rotary indexing unit with an attached 3HP/2.2KW 3-phase induction motor (Type AEVF, 220/380V, Frame 100L, 1998). The unit has been tested and verified operational. Cosmetically, the rotary output table and surrounding flange display surface rust and corrosion consistent with industrial use; the gearbox housing retains its gray paint with expected wear and minor scuffing. The motor housing appears intact with no obvious damage. An auxiliary output shaft is present on the side of the gearbox. Please review our photo set for detailed condition reference.
This Indexing Drive Table, model 25.180.1SRBH2, is a heavy-duty industrial rotary indexing unit with an attached 3HP/2.2KW 3-phase induction motor (Type AEVF, 220/380V, Frame 100L, 1998). The unit has been tested and verified operational. Cosmetically, the rotary output table and surrounding flange display surface rust and corrosion consistent with industrial use; the gearbox housing retains its gray paint with expected wear and minor scuffing. The motor housing appears intact with no obvious damage. An auxiliary output shaft is present on the side of the gearbox. Please review our photo set for detailed condition reference.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unknown / Label Partially Obscured |
Model: |
25.180.1SRBH2 |
MPN: |
25.180.1SRBH2 |
Type: |
Rotary Indexing Drive Table with Motor |
SKU: |
51699 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold AS-IS for parts or repair; pulled from CD/DVD silkscreen printer carousel |
Motor Type: |
3-Phase Induction Motor |
Motor Model / Type Code: |
AEVF |
Motor Output: |
3 HP / 2.2 KW |
Motor Frame: |
100L |
Voltage: |
220/380V |
Amperage: |
9.0/5.2A (Delta) / 8.0/4.6A (Star) |
Phase: |
3-Phase |
Frequency: |
50/60 Hz |
Motor RPM: |
1430 (50Hz) / 1720 (60Hz) |
Motor Poles: |
4 |
Service Factor: |
1.0 |
Rotor Class: |
C |
Insulation Class: |
E |
IP Rating: |
IP-44 |
Motor Bearings: |
6206ZZ, 6305ZZ |
Motor Design Standard: |
JIS-C4010 |
Motor Date: |
1998 |
Application: |
CD/DVD Silkscreen Printer Carousel; Rotary Indexing |
Country/Region of Manufacture: |
Taiwan (nameplate in Chinese/Traditional script) |
Condition Notes: |
Tested & working. Heavy-duty indexing drive table w/ 3HP 3-phase motor. Surface rust/corrosion on rotary table; paint wear on gearbox housing. Industrial-grade unit. |
