IMES SA2-40P Acoustic Sound Test Chamber Enclosure HDD SA2-80P Tester ver5.0
The IMES SA2-40P is a benchtop acoustic sound test chamber designed for measuring and qualifying the noise output of hard disk drives (HDDs) during manufacturing and quality assurance testing. The system consists of the foam-lined acoustic enclosure — which sits on blue vibration-isolating mounts to decouple ambient floor vibration from the measurement — and the companion Acoustic Tester ver5.0 power and control unit. This listing includes the complete system as photographed.
Specifications & What's Included
- Manufacturer: IMES Co., Ltd. — Made in Japan
- Chamber model: SA2-40P acoustic sound test enclosure
- Companion unit: Acoustic Tester ver5.0 power/control unit

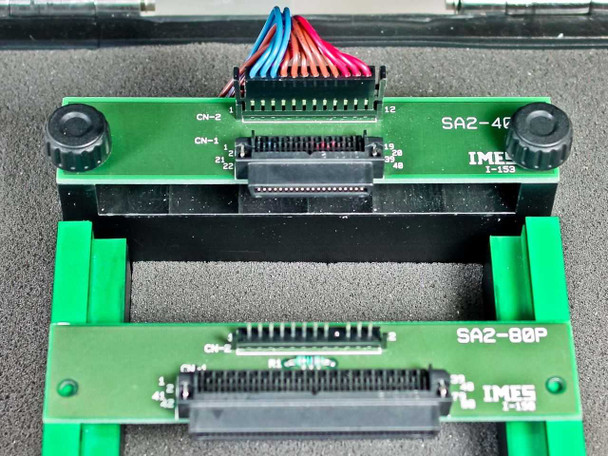

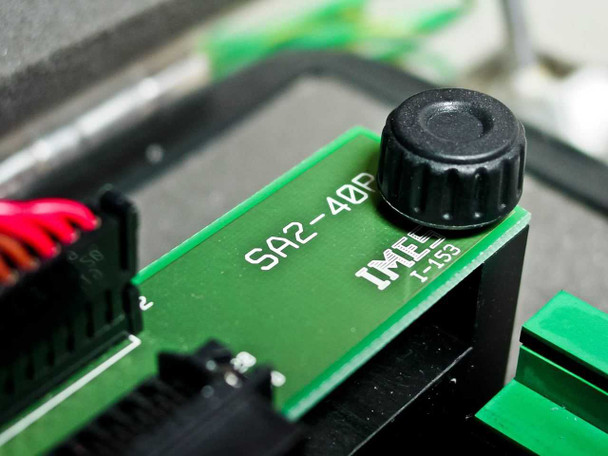

- HDD interface boards included: SA2-40P (40-pin interface) and SA2-80P (80-pin interface)
- Acoustic Tester power supply: AC100V, 50/60Hz input
- DC output voltages: +12V and +5V (for HDD under test)

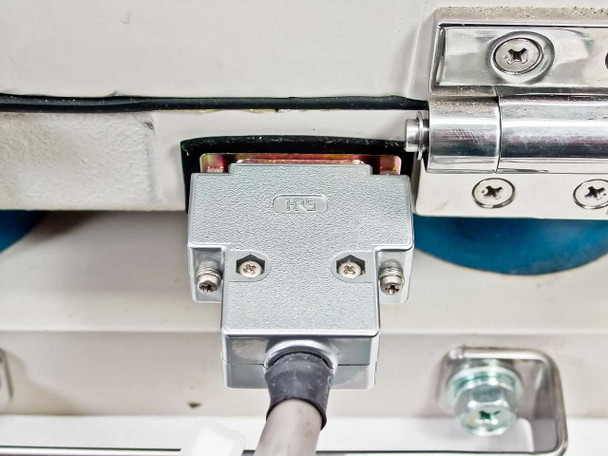

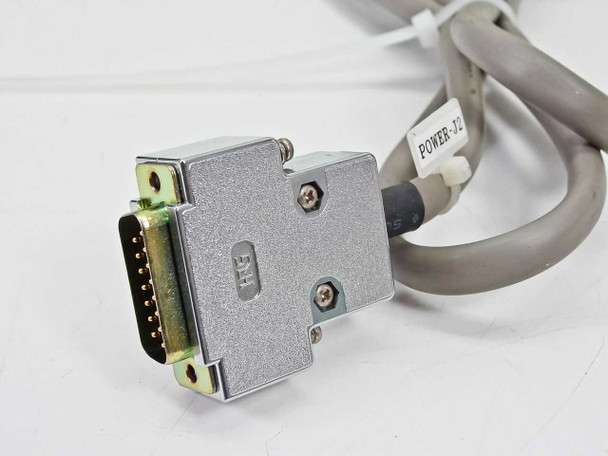

- Front-panel connectors on Acoustic Tester: J1 (DB-25), J2 (DB-15), J3 (IDC parallel)
- DC power indicator LEDs: +12V and +5V status
- ESD ground jack on front panel
- Fuse positions (rear of Acoustic Tester): F1 (2.5Asb), F2 (1.25Asb), F3 (5Amb), F4 (5Amb), F5 (0.3Amb), F6 (Spare)
- Rear AC inlet: IEC standard, AC100V 50/60Hz

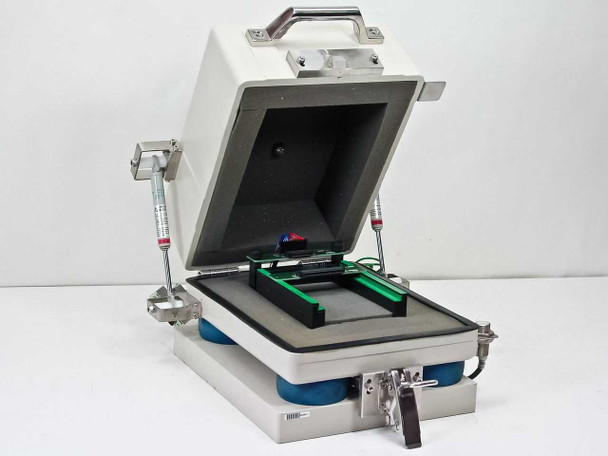

- Acoustic isolation: foam-lined chamber lid and base tray

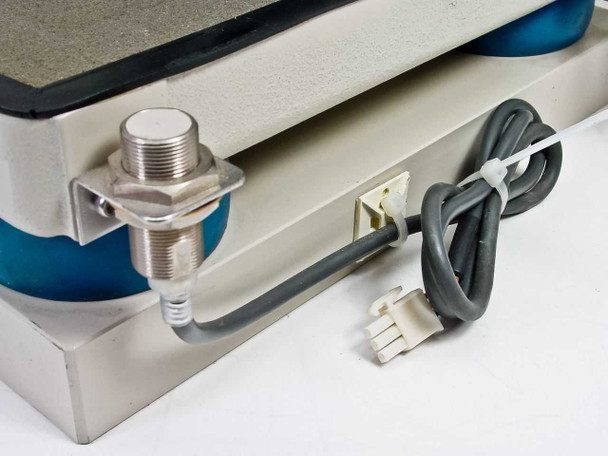

- Vibration isolation: blue gel/pneumatic isolator feet under base platform

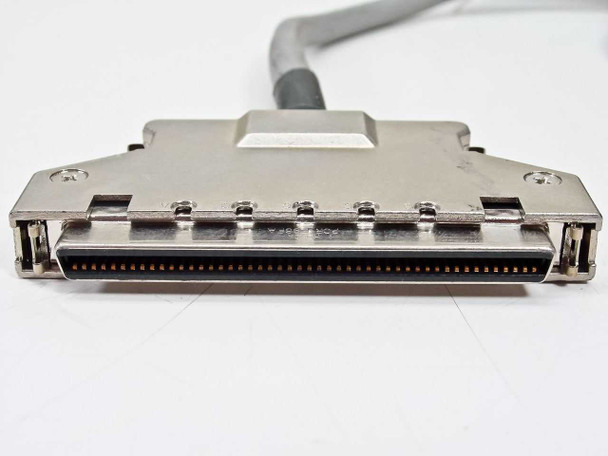

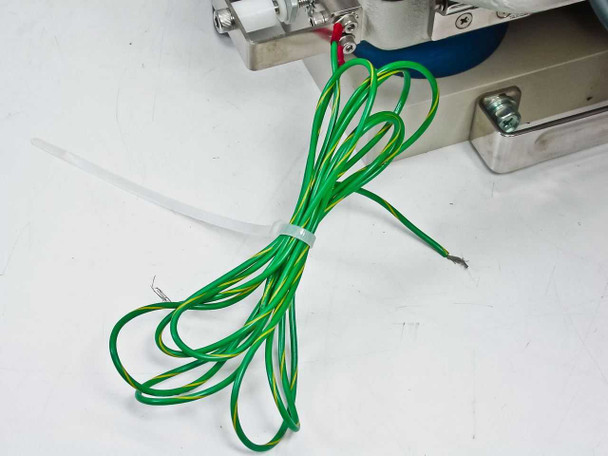

- Included cables: gray multi-conductor sensor cable with locking circular connector (red ring), ESD ground cable (green/yellow)

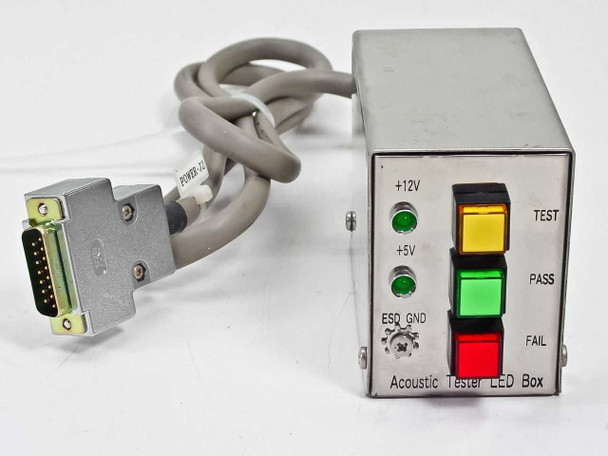

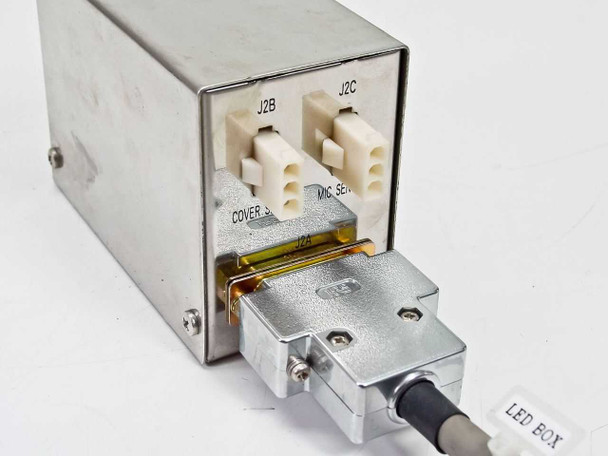

- Small external LED indicator/control box (3 LEDs — red, yellow, green) included
- Form factor: benchtop
- Country of manufacture: Japan
Applications
Acoustic sound test chambers like the IMES SA2-40P are used in hard disk drive manufacturing and incoming quality inspection to measure spindle and head actuator noise against manufacturer and OEM acoustic specifications. During testing, a drive is seated on the interface board inside the foam-lined, vibration-isolated enclosure; the Acoustic Tester unit provides regulated +12V and +5V power to the drive under test while microphone or accelerometer sensors capture acoustic and vibration signatures. The two interface boards — SA2-40P (40-pin) and SA2-80P (80-pin) — allow the system to accommodate different HDD connector generations. Systems of this type were standard equipment in HDD production lines and receiving inspection benches at drive manufacturers and large OEM storage integrators through the late 1990s and 2000s. Today they are also used by vintage HDD collectors, data recovery technicians, and research labs that require controlled acoustic measurements on rotating media.
This IMES SA2-40P Acoustic Sound Test Chamber has been inspected, cleaned, and tested at our facility and is in very good condition. The foam-lined chamber interior is intact with no tears or compression damage, the vibration isolators are present and functional, and both the SA2-40P and SA2-80P interface PCBs are installed. The Acoustic Tester ver5.0 control unit and all associated cables — including the sensor cable with locking circular connector and the ESD ground cable — are included. Normal cosmetic wear consistent with lab use is present on the exterior panels. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IMES |
Model: |
SA2-40P |
MPN: |
SA2-40P |
Type: |
Acoustic Sound Test Chamber |
SKU: |
42464 |
Application: |
Hard Disk Drive (HDD) Acoustic Noise Testing |
Includes: |
Acoustic Tester ver5.0, SA2-40P & SA2-80P interface boards |
Also Includes: |
Vibration isolators, sensor cables, ESD ground cable |
Interface Connectors: |
DB25 (J1), DB15 (J2), IDC parallel (J3) |
HDD Interface Boards: |
SA2-40P (40-pin) and SA2-80P (80-pin) |
Power Requirements: |
AC100V, 50/60Hz |
DC Output Voltages: |
+12V and +5V |
Fuse Configuration: |
F1: 2.5Asb, F2: 1.25Asb, F3: 5Amb, F4: 5Amb, F5: 0.3Amb, F6: Spare |
Vibration Isolation: |
Blue pneumatic/gel vibration isolators |
Acoustic Isolation: |
Foam-lined chamber lid and base |
Form Factor: |
Benchtop |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Includes Acoustic Tester ver5.0, SA2-40P and SA2-80P interface boards, vibration isolators, sensor and ground cables |
Condition Notes: |
This IMES SA2-40P Acoustic Sound Test Chamber has been inspected, cleaned, and tested and is in very good condition. Includes Acoustic Tester ver5.0, SA2-40P and SA2-80P boards, and all cables. |
