IFM Electronic VS 0200 SY 0101 Fluid Gas Flow Controller DIN Rail 115V AC

IFM Electronic VS 0200 SY 0101 Fluid Gas Flow Controller DIN Rail 115V AC

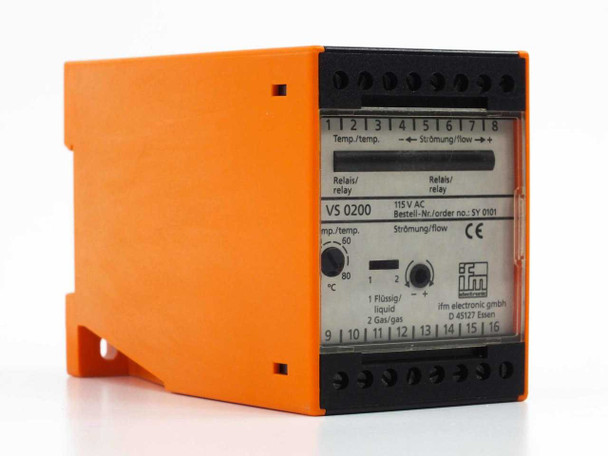

The IFM Electronic VS 0200 (order no. SY 0101) is a DIN rail-mount flow and temperature monitoring controller designed for use with both liquid and gas media. It provides dual relay outputs — one for temperature monitoring and one for flow (Strömung) monitoring — allowing integration into industrial process control systems that require automated switching based on flow or thermal thresholds. The unit operates on 115V AC and mounts directly on standard DIN rail.

Specifications & What's Included

• Manufacturer: IFM Electronic GmbH, D-45127 Essen, Germany
• Model: VS 0200
• Order / Part Number: SY 0101
• Supply Voltage: 115V AC (nominal 110V AC per terminal label)
• Media Compatibility: Liquid (Flüssig) and Gas (Gas/gas) — selector on front panel
• Relay Outputs: 2 (Relais/relay — one for temperature, one for flow)
• Temperature Monitoring Range: 20°C – 80°C (adjustable via front-panel dial)

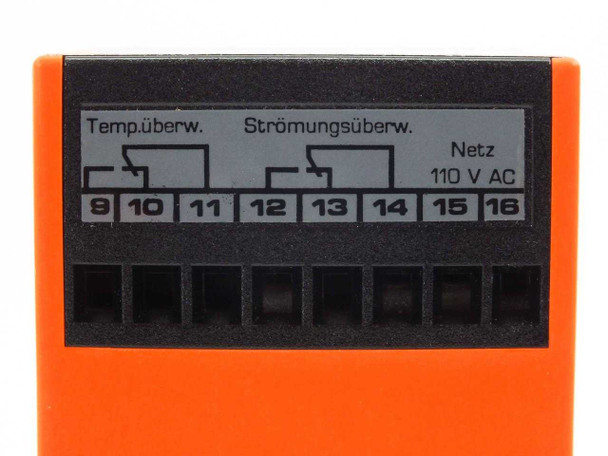

• Terminal Connections: Screw terminals, 16-pin total (pins 1–8 top rail, pins 9–16 bottom rail)

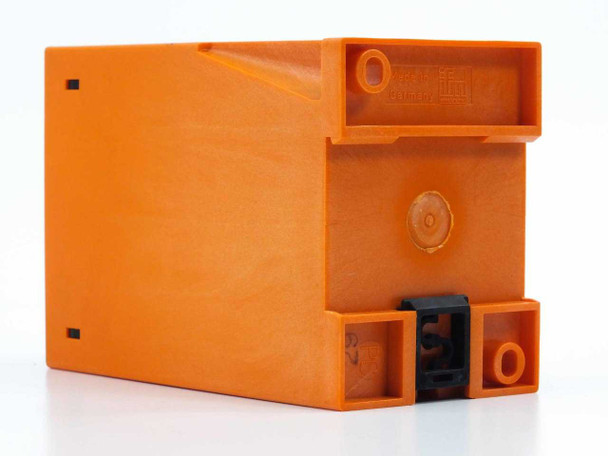

• Mounting: Standard DIN rail (clip present)
• Enclosure: Orange DIN rail housing (IFM standard)
• Certifications: CE marked
• Included: Controller unit with DIN rail clip

Applications

The IFM VS 0200 / SY 0101 belongs to IFM Electronic's calorimetric and thermal flow monitoring product family. These controllers are commonly used in industrial process systems to detect the presence, absence, or interruption of fluid or gas flow through a pipe or channel, triggering relay switching for alarms, shutoffs, or interlocks. Typical applications include coolant flow monitoring in machine tools and hydraulic systems, cooling water supervision for compressors and industrial motors, and gas flow confirmation in pneumatic or process-gas lines. The dual-relay architecture allows independent setpoints for temperature and flow conditions — useful in systems where both parameters must be within range before a process step can proceed. IFM Electronic, headquartered in Essen, Germany, has been a leading manufacturer of industrial sensors and control technology since the 1960s, and their VS-series flow monitors are well established in European and international factory automation environments.
