Description
SMC PSE100-B DIN Rail Pressure Switch 0-1 MPa 0-101 kPa 2-Ch NPN 30V
Digital pressure switch and sensor controller designed for DIN rail mounting in industrial pneumatic and hydraulic systems. Monitors pressure levels and outputs digital signals via two independent NPN channels.
Specifications & What's Included
- Pressure range: 0-1 MPa (0-101 kPa)
- Dual channels (CH.A and CH.B) with 2 NPN outputs
- Output rating: NPN 30V, 80mA max per channel
- Analog inputs: 1-5V and 4-20mA compatible
- Display units: kPa, MPa, mmHg, kgf/cm², bar, InHg
- DIN rail mount module, Japan manufactured
- Unit only; wiring diagram label present on base
Applications
Pressure switches of this type function in pneumatic control circuits, compressed air systems, and low-pressure hydraulic monitoring. Commonly integrated into industrial automation equipment, air compressor controls, and process monitoring systems. The dual-channel design allows simultaneous pressure monitoring with independent relay outputs for alarm or equipment control functions.
Condition: Used

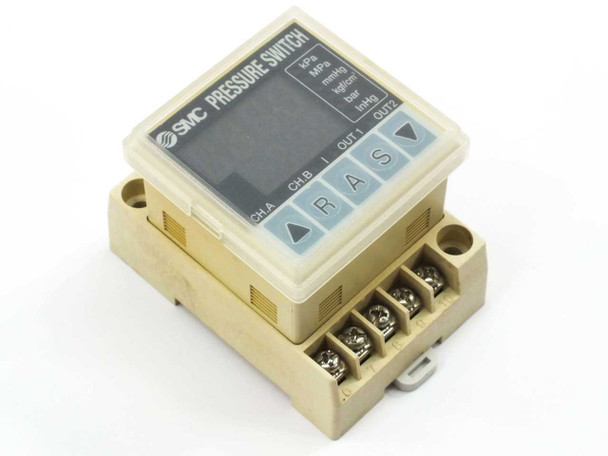

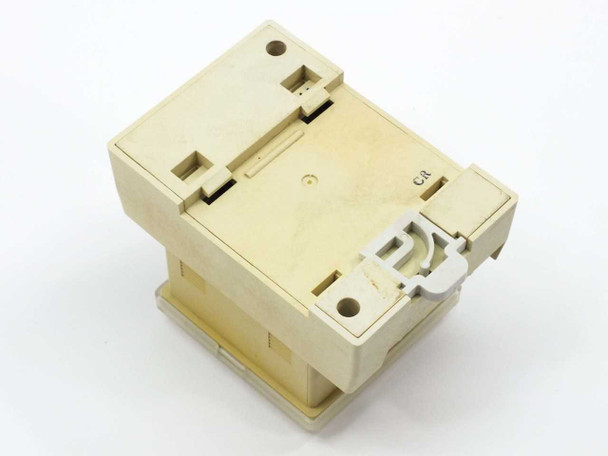

This SMC PSE100-B DIN Rail Pressure Switch has been inspected and appears to be in good used condition. The housing shows light surface yellowing typical of older Japanese-made industrial components, visible on the rear and base panels. The front display cover is intact and the front-panel buttons and indicator labels are clear and legible. The wiring terminal block and DIN rail clip are present and in good shape. The wiring diagram label on the base is fully intact and readable. Please view our photo set and contact us if you have any questions.
This SMC PSE100-B DIN Rail Pressure Switch has been inspected and appears to be in good used condition. The housing shows light surface yellowing typical of older Japanese-made industrial components, visible on the rear and base panels. The front display cover is intact and the front-panel buttons and indicator labels are clear and legible. The wiring terminal block and DIN rail clip are present and in good shape. The wiring diagram label on the base is fully intact and readable. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
SMC |
Model: |
PSE100-B |
MPN: |
PSE100-B |
Type: |
Digital DIN Rail Pressure Switch / Sensor Controller |
SKU: |
47877 |
Pressure Range: |
0-1 MPa / 0-10.2 kgf/cm² / 0-101 kPa / 0-760 mmHg / 0-100 kPa |
Number of Channels: |
2 (CH.A and CH.B) |
Output Type: |
NPN |
Output Rating: |
NPN 30V 80mA Max |
Number of Outputs: |
2 (OUT 1, OUT 2) |
Analog Input 1: |
1-5V |
Analog Input 2: |
4-20mA |
Pressure Units Displayed: |
kPa, MPa, mmHg, kgf/cm², bar, InHg |
Mounting Type: |
DIN Rail |
Country/Region of Manufacture: |
Japan |
Manufacturer: |
SMC Corporation |
Form Factor: |
DIN Rail Mount Module |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; no accessories included. Wiring diagram label intact on base. |
Condition Notes: |
SMC PSE100-B DIN rail pressure switch. Inspected, good used condition. Housing shows light yellowing typical of age. Display cover intact, buttons and terminals good. DIN rail clip present. |
