ICP DAS XPAC XP-8741 PLC Embedded Industrial PC AMD LX800 500MHz 7-Slot

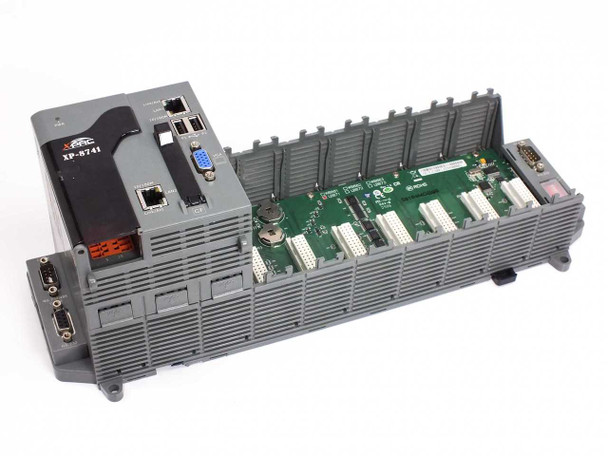

The ICP DAS XPAC XP-8741 is a compact, ruggedized embedded industrial PC built around the AMD LX800 500MHz 32-bit processor and running Windows Embedded Standard 2009. Part of ICP DAS's XP-8000 series, it combines a real-time-capable CPU module with a 7-slot I/O backplane, allowing users to install a range of ICP DAS I/O modules for data acquisition, motion control, and machine automation applications. It is designed for demanding industrial environments where a wide operating temperature range and compact form factor are required.
Specifications & What's Included
- Make / Model: ICP DAS XPAC XP-8741
- Series: XP-8000
- CPU: AMD LX800, 32-bit, 500MHz
- System RAM: 1 GB
- Storage: 4 GB Compact Flash (CF) Card
- Operating System: Windows Embedded Standard 2009
- Bundled Software: SQL Server 2005 Express Edition
- I/O Expansion Slots: 7 open slots (XP-8000 series compatible I/O modules)
- Operating Temperature: -25°C to +75°C
- Front Connectivity (CPU module): Ethernet (RJ-45), USB ports, VGA output
- Serial Ports: Two DB9 serial ports (COM1/COM2 — RS-232/RS-485 per label)
- Backplane: 7-slot XP-8000 series I/O backplane PCB, RoHS compliant
- Unit only — no I/O modules, cables, or power adapter included
Applications
The XP-8000 series embedded industrial PCs are used in factory automation, machine monitoring, SCADA edge nodes, and data acquisition systems where a Windows-based controller with modular I/O is needed in a compact, DIN-rail or panel-mount footprint. The 7-slot backplane accepts ICP DAS XP-8000-compatible I/O modules covering analog input/output, digital I/O, motion control, and communications, making the platform flexible across a wide range of industrial control tasks. The AMD LX800 CPU and Windows Embedded Standard 2009 combination was a common choice in the mid-to-late 2000s for applications requiring a deterministic, low-power x86 controller with a familiar OS and SQL-capable local data logging — the bundled SQL Server 2005 Express supports on-machine historian functionality. These controllers are still found in legacy automation lines, test stands, and embedded SCADA applications where XP-8000 I/O module investments are already in place.
This ICP DAS XPAC XP-8741 PLC Embedded Industrial PC has been partially tested. The Windows Embedded Standard 2009 operating system is currently locked and will need to be reset before the unit can be put into normal use — the end user should have the knowledge and tools to perform this reset. The hardware itself powered up during our partial testing. The unit shows typical used wear consistent with industrial service; the 7-slot backplane and CPU module appear intact and complete. Please review our photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
ICP DAS |
Model: |
XP-8741 |
MPN: |
XP-8741 |
Type: |
PLC Embedded Industrial PC |
SKU: |
49496 |
Series: |
XP-8000 |
Product Line: |
XPAC |
Processor: |
AMD LX800 500MHz (32-bit) |
System RAM: |
1 GB |
Storage: |
4 GB CF Card (Compact Flash) |
Expansion Slots: |
7 Open I/O Slots |
Software Included: |
SQL Server 2005 Express Edition |
Form Factor: |
DIN Rail / Desktop Industrial |
Backplane: |
7-slot XP-8000 series I/O backplane |
Connectivity: |
Ethernet, USB, VGA, RS-232, RS-485 |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Partially Tested |
Seller Notes: |
Windows OS is locked; end user must reset. Unit partially tested. |
Condition Notes: |
ICP DAS XP-8741 XPAC industrial PC partially tested. Windows OS is locked and must be reset by end user before use. Hardware powered up. Shows typical used wear. Unit only; please contact us with questions. |
