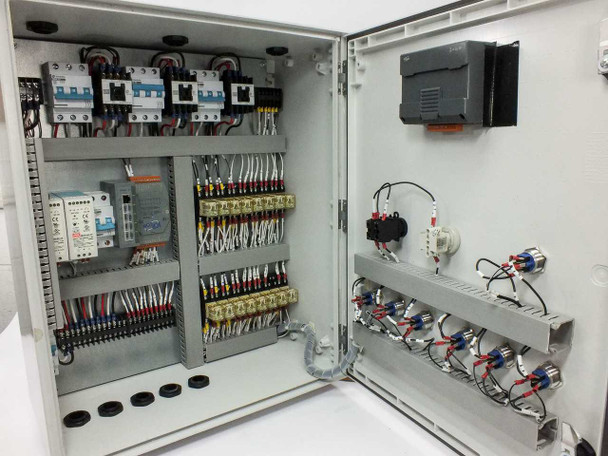

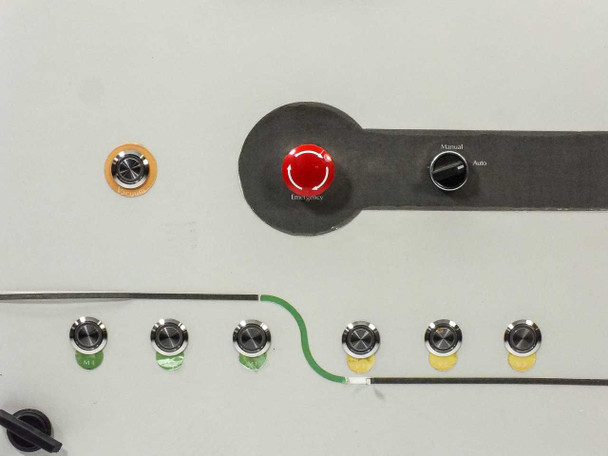

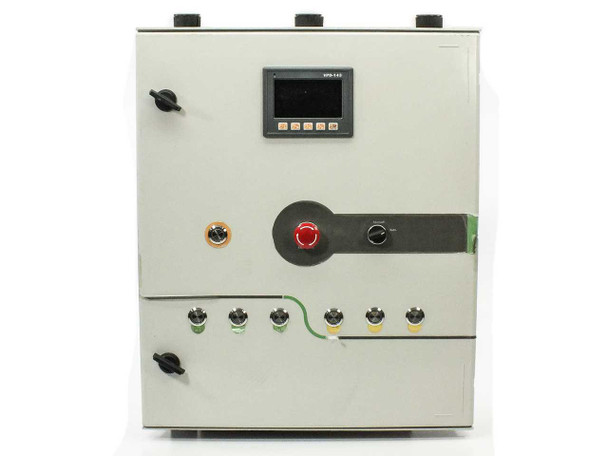

This is a custom-built industrial control panel housed in an IDE POL605023 IP66-rated polyester enclosure. The enclosure is pre-wired and fully populated with ICP DAS and Shihlin industrial automation components, including an ICP DAS VPD-143 4.3" color touchscreen HMI, DIN-rail mounted circuit breakers, magnetic contactors, 24VDC relays, a discrete I/O module, an unmanaged industrial Ethernet switch, and dual Mean Well DIN-rail power supplies. The front door features an emergency stop button, a Manual/Auto rotary selector, and six indicator pilot lights for operator control.

Specifications & What's Included

• Enclosure: IDE POL605023 Polyester Enclosure — IP66 rated
• Backing Plate: IDE PML6050 Metal Backing Plate

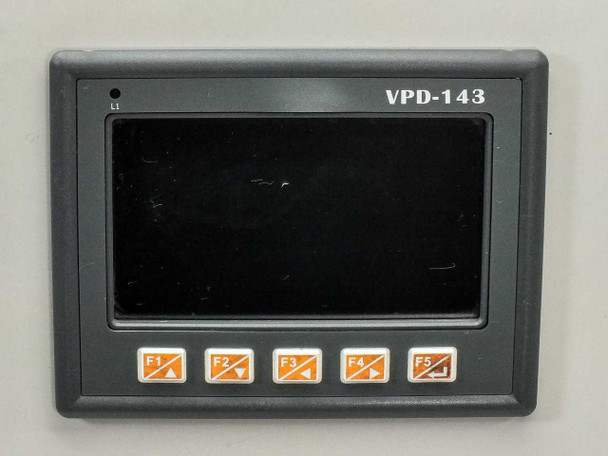

• HMI Touchscreen: ICP DAS VPD-143 4.3" high-resolution color touch screen LCD with 5 function keys (F1–F5)

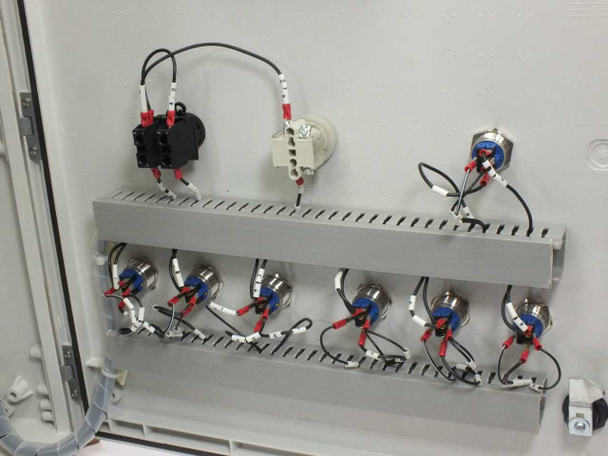

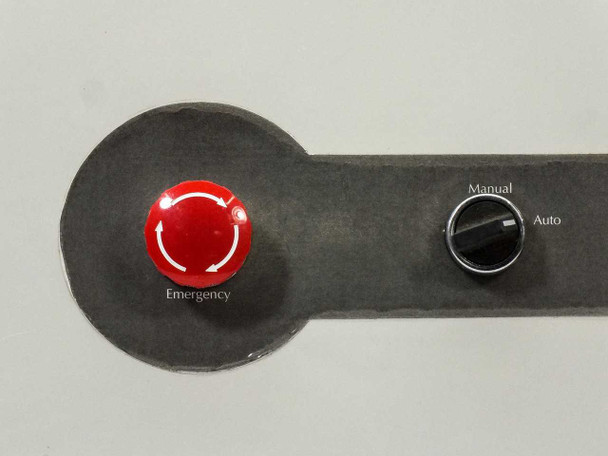

• Front Panel Controls: Emergency stop mushroom button (twist-to-release), Manual/Auto rotary selector switch
• Front Panel Indicators: 6x pilot indicator lights (green and yellow)
• Circuit Breakers: 2x Shihlin BHA 32
• Circuit Breakers: 3x Shihlin BHA 33
• Magnetic Contactors: 3x Shihlin S-P11

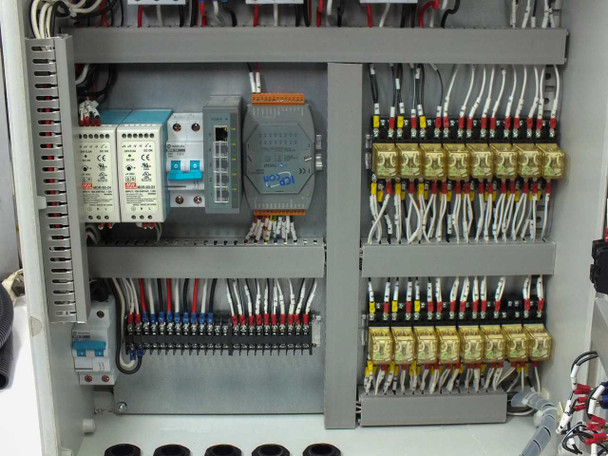

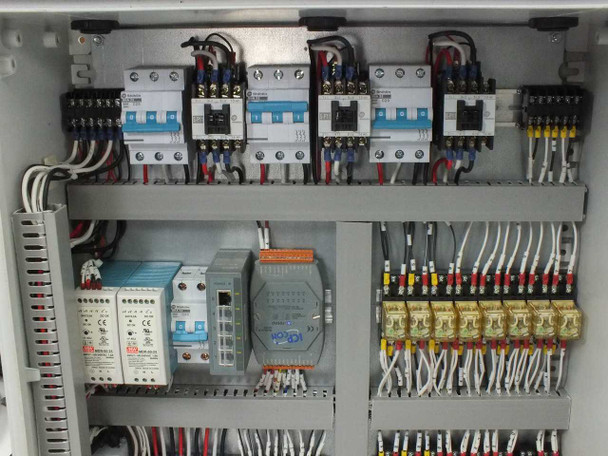

• Relays: 16x ETR2HN 24VDC (mounted on DIN rail, right side of enclosure)
• I/O Module: ICP DAS M-7055D — 8-channel isolated digital input, 8-channel isolated digital output, 16-bit counters with LED display
• Ethernet Switch: ICP DAS unmanaged 5-port industrial 10/100 Mbps Ethernet switch

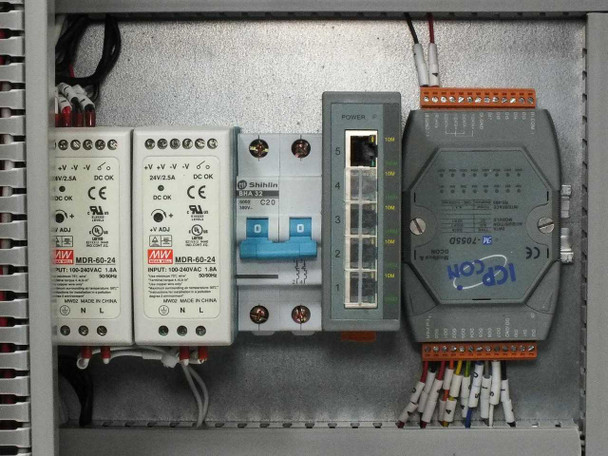

• Power Supplies: 2x Mean Well MDR-60-24 — 60W, 24VDC, 2.5A, DIN-rail mount, input 100–240VAC 50/60Hz

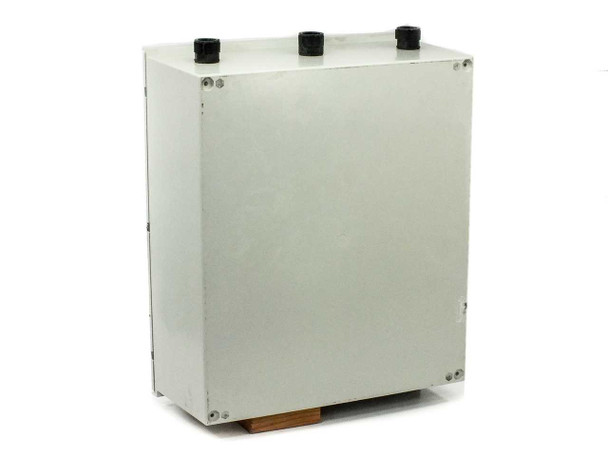

• Cable entry glands: 3x on enclosure top, plus cable duct for internal wire management
• Overall Enclosure Dimensions: 26" x 20" x 11"

Applications

Pre-wired industrial control enclosures of this type are used across a wide range of industrial automation and process control applications. The combination of an HMI touchscreen, discrete I/O module, circuit protection, relay outputs, and an industrial Ethernet switch makes this panel suited for machine control, conveyor systems, pump and motor control, HVAC automation, and general factory floor automation where local operator control with remote network monitoring is required. The ICP DAS VPD-143 HMI provides a graphical operator interface for monitoring and control, while the M-7055D I/O module handles field device signal interfacing. The Shihlin BHA circuit breakers provide branch circuit protection, and the ETR2HN relay bank provides isolated output switching for field devices. IP66-rated enclosures are specified for environments where protection against dust ingress and powerful water jets is required — common in food processing, outdoor installations, and washdown-duty industrial environments. The Mean Well MDR-60-24 DIN-rail power supplies convert AC mains power to regulated 24VDC for the control logic and field devices.
