ICP DAS

ICP DAS i-2541 RS-232/422/485 to Fiber Optic Converter DIN-Rail 300-115200 bps

(No reviews yet) Write a Review
SKU:
52540
MPN:
i-2541
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • ICP DAS i-2541 RS-232/422/485 fiber optic converter — angled front-left view showing ST fiber port and orange terminal block

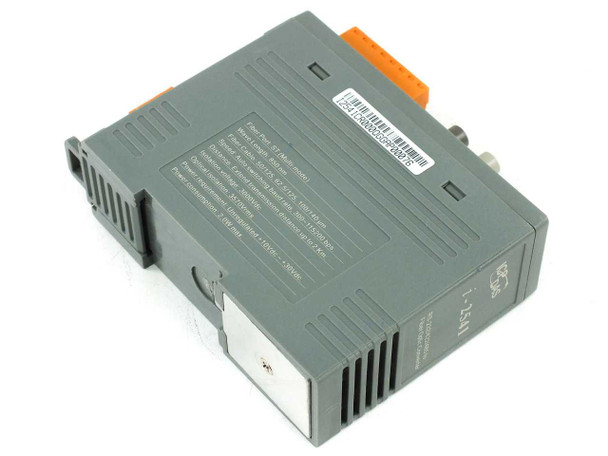

  • ICP DAS i-2541 fiber optic converter — rear label view showing specs and barcode sticker
  • ICP DAS i-2541 fiber optic converter — front face showing brand label and 'RS-232/422/485 to Fiber Optic Converter' text
  • ICP DAS i-2541 — right side panel showing POWER, TD, RD LEDs, TxD and RxD fiber ports, and labeled RS-422/485 and RS-232 screw terminals
  • ICP DAS i-2541 — top view showing 3-position orange power terminal block labeled F.G., GND, +VS and DIN-Rail clip
  • ICP DAS i-2541 — bottom label panel showing fiber port specs, wavelength, baud rate, distance, isolation, and power requirements
  • ICP DAS i-2541 — side panel showing RS-232, RS-422, and RS-485 wiring diagram and CE/RoHS markings
$130.00
Was: $250.00
Current Stock: 1

Sold Out

Description

ICP DAS i-2541 RS-232/422/485 to Fiber Optic Converter DIN-Rail 300-115200 bps

Industrial serial-to-fiber converter that bridges RS-232, RS-422, and RS-485 devices to fiber optic networks. Converts electrical serial signals to optical signals for long-distance transmission over multimode fiber with ST connectors.

Specifications & What's Included

  • Fiber Port: ST connector, multimode (50/125, 62.5/125, 100/140 µm)
  • Serial Interface: RS-232/422/485 with auto-switching
  • Data Rate: 300–115200 bps
  • Transmission Distance: Up to 2 km
  • Wavelength: 850 nm
  • Power: +10 to +30 VDC unregulated, 2.0 W max
  • Isolation: 3000 Vdc, 3570 Vrms optical
  • Operating Temperature: -25°C to +75°C
  • Form Factor: DIN-rail mount
  • Includes: Unit only, no accessories

Applications

Used in industrial automation, telecom, and SCADA systems requiring extended-distance serial communication. Supports point-to-point RS-232/422 and multipoint RS-485 networks. Common in manufacturing facilities, utility monitoring, and remote equipment installations where fiber isolation and noise immunity are required.

Condition: Used
This ICP DAS i-2541 RS-232/422/485 Fiber Optic Converter has been inspected and is in good condition. It was pulled from a working environment where it was in use and functional. The housing is intact with normal light wear consistent with industrial use. The orange terminal blocks and ST fiber port appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ICP DAS
Model:
i-2541
MPN:
i-2541
SKU:
52540
Type:
RS-232/422/485 to Fiber Optic Converter
Interface Type:
RS-232, RS-422, RS-485
Fiber Port Type:
ST (Multi-mode)
Fiber Cable Type:
50/125, 62.5/125, 100/140 µm
Wavelength:
850 nm
Data Rate:
300 – 115200 bps (auto-switching)
Transmission Distance:
Up to 2 km (6,600 ft)
Power Requirements:
Unregulated +10 VDC to +30 VDC
Power Consumption:
2.0 W max
Isolation Voltage:
3000 Vdc
Optical Isolation:
3570 Vrms
Operating Temperature:
-25°C to +75°C
Form Factor:
DIN-Rail Mount
ESD Protection:
Yes — RS-232/422/485 data lines
LED Indicators:
Power, TD, RD
Serial Terminals:
8-position screw terminal block (orange)
Power Terminals:
3-position screw terminal block (F.G., GND, +VS)
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
Taiwan
Compatible With:
RS-232/422/485 point-to-point and RS-485 multi-drop systems
Seller Notes:
Unit only — no accessories included. Pulled from a working environment.
Condition Notes:
ICP DAS i-2541 fiber optic converter — inspected, in good used condition. Pulled from a working environment where it was in use and functional. Terminal blocks and fiber port intact. Normal light wear.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
