Description
IBM DHEA-36480 6440MB 3.5 IDE Hard Drive P/N 09J1194 DELL 89659 HDD

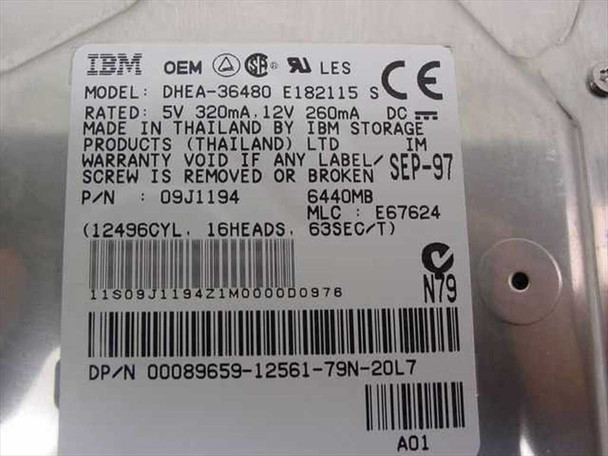

The IBM DHEA-36480 is a 3.5-inch IDE (PATA) hard disk drive with a 6440MB (approximately 6.44GB) storage capacity, manufactured by IBM Storage Products (Thailand) Ltd. and dated September 1997. It carries IBM part number 09J1194 and Dell OEM DPN 89659, indicating it was sourced for use in Dell desktop systems of the era. The drive uses a standard 40-pin IDE interface and draws power via a standard 4-pin Molex connector.
Specifications & What's Included
- Manufacturer: IBM (IBM Storage Products Thailand Ltd.)
- Model: DHEA-36480
- Secondary Model / FRU: E182115
- P/N: 09J1194
- Dell DPN: 89659 (00089659-12561-79N-20L7)
- MLC: E67624
- Capacity: 6440MB (6.44GB)
- Form Factor: 3.5-inch
- Interface: IDE (PATA) — 40-pin connector
- Geometry: 12,496 cylinders / 16 heads / 63 sectors per track
- Power: 5V DC at 320mA / 12V DC at 260mA
- Manufacture Date: September 1997
- Country of Manufacture: Thailand
- Drive only — no IDE cable, power cable, or mounting hardware included
Applications
The DHEA series drives were IBM's mid-range desktop IDE hard drives of the mid-to-late 1990s, widely used in DOS, Windows 95, and Windows 98 desktop PCs. With a 6.4GB capacity, the DHEA-36480 was a mainstream drive size for systems of that generation, compatible with any PC or workstation featuring a standard 40-pin IDE (ATA) interface. This particular unit carries a Dell OEM part number, meaning it originally shipped inside a Dell desktop — models such as the OptiPlex and Dimension lines of that era commonly used IBM DHEA-series drives. Today these drives are sought after for restoring or maintaining period-correct late-1990s PCs, vintage computing projects, and replacement purposes in systems that still run legacy IDE storage.
This IBM DHEA-36480 6440MB 3.5" IDE hard drive (P/N 09J1194) has been inspected, cleaned, and tested at our facility and is in good working condition. The drive shows normal cosmetic wear consistent with prior use — the case and label are intact with no significant damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
DHEA-36480 |
MPN: |
09J1194 |
Secondary Model: |
E182115 |
Dell DPN: |
89659 |
Type: |
Internal Hard Disk Drive (HDD) |
SKU: |
25254 |
Storage Capacity: |
6440MB (6.44GB) |
Interface: |
IDE (PATA) |
Form Factor: |
3.5" |
Cylinders: |
12496 |
Heads: |
16 |
Sectors per Track: |
63 |
MLC: |
E67624 |
Power Requirements: |
5V 320mA / 12V 260mA DC |
Country/Region of Manufacture: |
Thailand |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Drive only; no cables or accessories included. |
Condition Notes: |
IBM DHEA-36480 6440MB IDE hard drive inspected, cleaned, and tested — in good working condition. Normal cosmetic wear. P/N 09J1194, Dell DPN 89659. |
