Description
IBM 5699358 Dual Fan Assembly 3274 Nidec TA450 ETRI 125LG 115VAC 50/60Hz
Dual fan cooling assembly designed for the IBM 3274 Series Server Chassis. This chassis-mount panel assembly contains two independent fans with integrated wiring harness and connector, operating on 115V AC at 50/60 Hz.
Specifications & What's Included

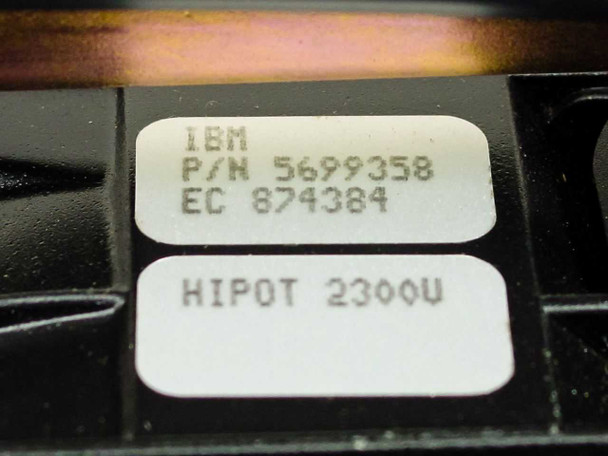

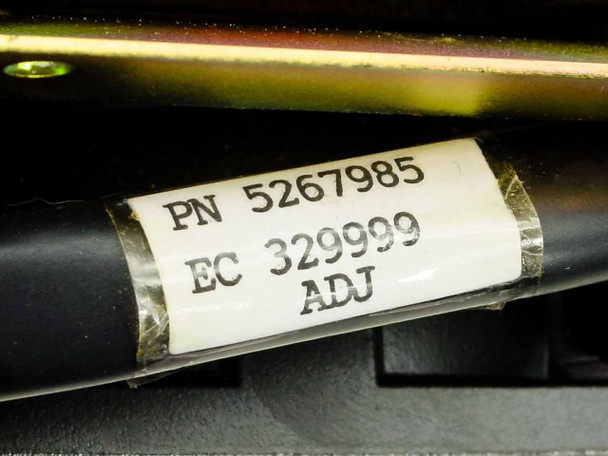

- IBM Model: 5699358 (Secondary: 5267985)

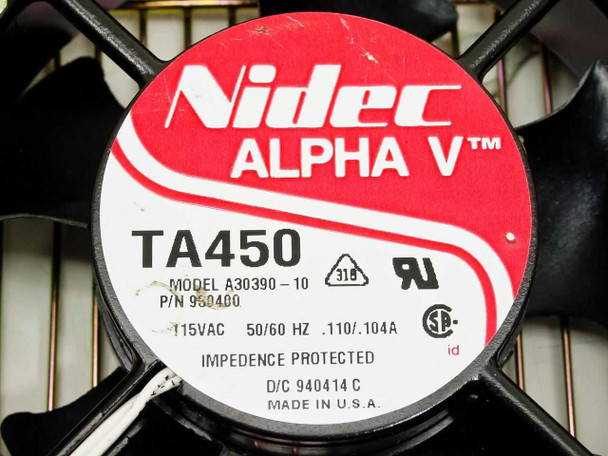

- Fan 1: Nidec Alpha V TA450 (P/N 950400), 0.110/0.104 A
- Fan 2: ETRI 125LG (125LG-0282-019), 16/13 W, 200/160 mA
- Voltage: 115V AC, 50/60 Hz

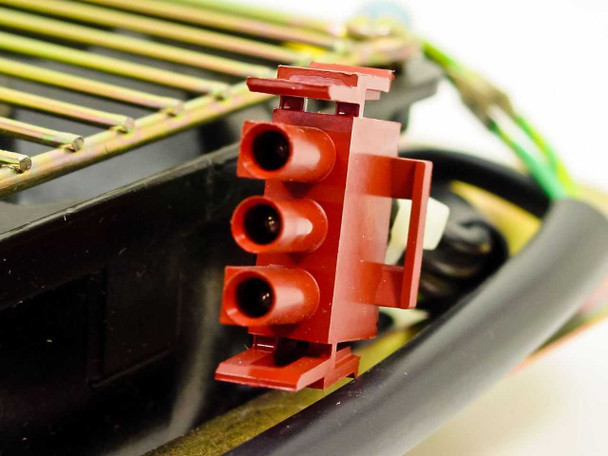

- Connector: 3-pin red multi-connector
- Certifications: UL, CSA (Nidec); UL, CSA, CE (ETRI)
- Includes: Both fans, assembled tray, wiring harness, connector
Applications
This dual fan assembly was used in IBM 3274 Series server chassis to provide system cooling in telecom and data center environments. The assembly supplied replacement cooling capacity for legacy IBM server platforms that required redundant or upgraded fan configurations. Components carry industrial certifications suitable for continuous operation in controlled facility settings.
Condition: Used
This IBM 5699358 Dual Fan Assembly has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. Both the Nidec Alpha V TA450 and ETRI 125LG fans are present, and the wiring harness and red multi-pin connector are intact. The metal chassis tray shows typical light wear consistent with normal service use. Please view our photo set and contact us if you have any questions.
This IBM 5699358 Dual Fan Assembly has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. Both the Nidec Alpha V TA450 and ETRI 125LG fans are present, and the wiring harness and red multi-pin connector are intact. The metal chassis tray shows typical light wear consistent with normal service use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
IBM |
Model: |
5699358 |
MPN: |
5699358 |
Secondary Model: |
5267985 |
EC Number: |
874384 |
Secondary EC Number: |
329999 |
Type: |
Dual Fan Assembly |
Compatible With: |
IBM 3274 Series Server Chassis |
Number of Fans: |
2 |
Fan 1 Brand / Model: |
Nidec Alpha V TA450 (A30390-10, P/N 950400) |
Fan 2 Brand / Model: |
ETRI 125LG (125LG-0282-019) |
Voltage: |
115V AC |
Frequency: |
50/60 Hz |
Fan 1 Current Draw: |
0.110 / 0.104 A |
Fan 2 Power Rating: |
16/13 W |
Fan 2 Current Draw: |
200/160 mA |
Connector Type: |
3-pin red multi-connector |
Protection: |
Impedance Protected (Nidec TA450) |
Country/Region of Manufacture: |
United States (Nidec TA450) |
Certifications: |
UL, CSA (Nidec); UL, CSA, CE (ETRI) |
Form Factor: |
Chassis-mount panel assembly |
SKU: |
40224 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes assembled fan tray with both fans and wiring harness intact. |
Condition Notes: |
IBM 5699358 Dual Fan Assembly inspected and in good used condition. Pulled from a working environment. Both fans (Nidec TA450 and ETRI 125LG) present; wiring harness and connector intact. Normal light wear. |
