IBM

IBM 330W Desktop Power Supply 01K9858 API-7506 FRU 100-240V ATX PC

(No reviews yet) Write a Review
SKU:
17285
MPN:
01K9858
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

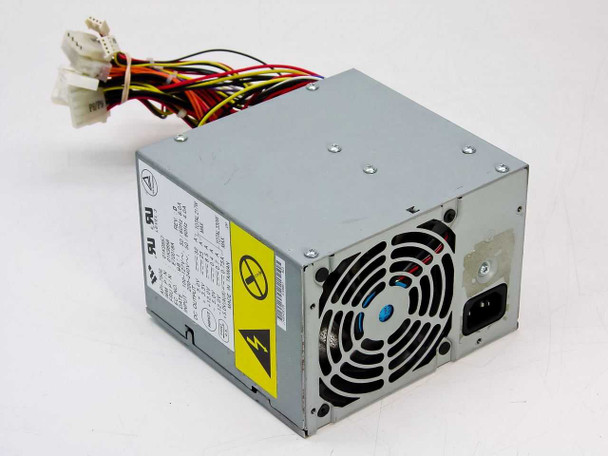

  • IBM API-7506 330W desktop power supply – front panel view showing fan grille and AC inlet connector
  • IBM API-7506 330W desktop power supply – rear and side view showing ventilation slots and output cable harness
  • IBM API-7506 power supply label showing FRU 01K9858, IBM P/N 01K9857, input 100-240V specs, and DC output ratings
  • IBM API-7506 power supply output connectors – Molex 4-pin peripheral, Berg floppy, and ATX motherboard connectors
$27.20
Was: $45.00
Current Stock: 2

Sold Out

Description

IBM 330W Desktop Power Supply 01K9858 API-7506 FRU 100-240V ATX PC

This is a 330W ATX desktop power supply designed for IBM desktop systems. It converts AC input to regulated DC outputs for powering computer components.

Specifications & What's Included

  • Model: API-7506 | MPN: 01K9858 | FRU: 01K9858
  • Power Output: 330W Max Total
  • Input: 100–127V AC / 200–240V AC, 50/60Hz
  • DC Outputs: +5V (32A), +3.3V (25A), +12V (8.5A), -5V (0.4A), -12V (0.7A), +5VSB (0.75A)
  • Form Factor: Desktop ATX
  • Certifications: UL, cUL, TÜV Rheinland Level 3
  • Manufactured in Taiwan | Revision D
  • Power supply only; no cables or accessories included

Applications

This supply was used in IBM desktop computers from the late 1990s through early 2000s. It fits standard ATX form factor systems and provides adequate power for systems with moderate processor and expansion card requirements. Suitable for users seeking replacement power supplies for legacy IBM desktop systems or those building or repairing computers compatible with this FRU specification.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This IBM 330W Desktop Power Supply (FRU 01K9858 / API-7506) has been inspected and is in good used condition. The unit is cosmetically clean with only minor surface wear consistent with normal use. All output connectors — including the ATX motherboard connector, 4-pin Molex peripheral connectors, and auxiliary leads — are present and appear intact with no visible damage to pins or wiring. The label is clearly legible and the fan grille is undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IBM
Model:
API-7506
MPN:
01K9858
Secondary Model:
01K9857
SKU:
17285
Condition:
Used – Inspected
Seller Notes:
Power supply only; no additional accessories included.
Form Factor:
Desktop / ATX
Power Output:
330W Max Total
Input Voltage:
100–127V AC / 200–240V AC, 50/60Hz
Input Current:
8.0A @ 100–127V; 4.0A @ 200–240V
DC Output +5V:
+5.0V, 32A
DC Output +3.3V:
+3.3V, 25A
DC Output +12V:
+12.0V, 8.5A
DC Output -5V:
-5.0V, 0.4A
DC Output -12V:
-12.0V, 0.7A
DC Output +5VSB:
+5.0V (AUX), 0.75A
EC Number:
E72018A
Revision:
Rev D
Certifications:
UL, cUL, TÜV Rheinland Level 3
Country of Manufacture:
Taiwan
Compatible With:
IBM desktop PCs using FRU 01K9858 / P/N 01K9857
Condition Notes:
This IBM 330W Desktop Power Supply FRU 01K9858 (API-7506) has been inspected and is in good used condition. Minor surface wear only. All output connectors present and intact. Please contact us with any questions.
View AllClose

Related Products

Related Products

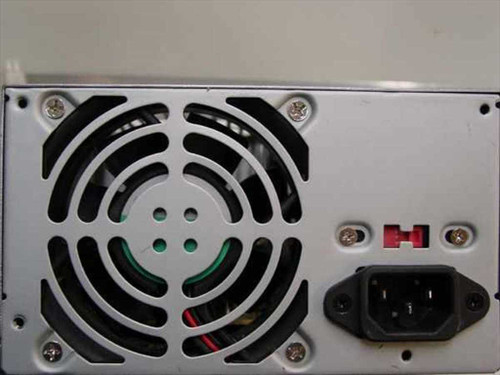

Enhance Electronics ATX-1123B 230W ATX power supply – top and side view showing ventilation grille and output wiring harness Enhance Electronics ATX-1123B – rear panel view showing 80mm cooling fan, IEC C14 AC inlet, voltage selector switch, and power switch
Add to Cart
Quick view

Enhance Electronics ATX-1123B 230W ATX Desktop PC Power Supply 100-240V

Enhance Electronics

$50.00
Was: $125.00
Enhance Electronics ATX-1123B 230W ATX Desktop PC Power Supply 100-240V ATX form factor power supply for desktop computers. Supplies regulated DC power to motherboards and peripherals via multiple...
13606
SKU:
13606
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Enhance Electronics
Model:
ATX-1123B
MPN:
ATX-1123B
SKU:
13606
Condition:
Used – Inspected
Seller Notes:
Includes attached output harness with 20-pin ATX, Molex, and floppy connectors
Form Factor:
ATX
Power Output:
230W (120W total combined output)
Input Voltage:
100-127V / 6A 60Hz or 200-240V / 3.5A 50Hz
Output Voltages:
+3.3V, +5V, +12V, -12V, -5V, +5VSb
Output Currents:
+3.3V/14A, +5V/22A, +12V/8A, -12V/0.8A, -5V/0.5A, +5Vsb/1A
Connector Type:
IEC C14 AC inlet; 20-pin ATX motherboard connector
Compatible With:
ATX form factor desktop PC cases and motherboards
Certifications:
UL E166947, CE, FCC
Country of Manufacture:
Taiwan
Manufacture Date:
December 1999 (label date code 99.12)
Condition Notes:
Enhance Electronics ATX-1123B 230W ATX Desktop Power Supply. Good used condition with minor cosmetic wear. All connectors present & intact. Bench-tested, working condition.

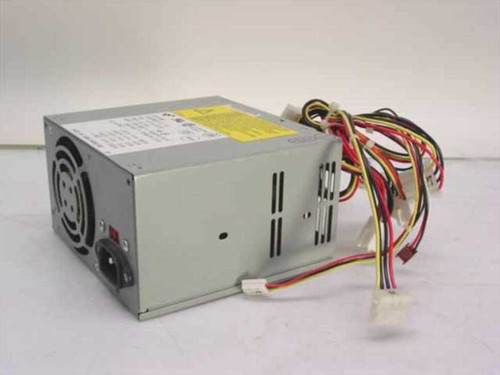

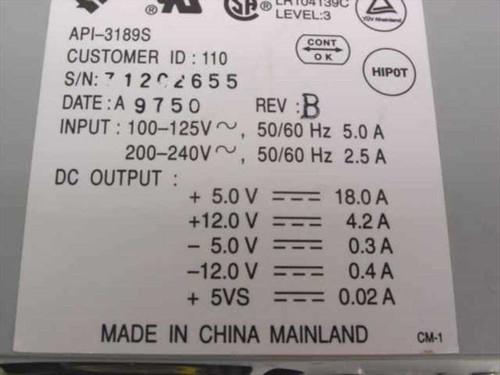

NCR IBM API-3189S AT desktop power supply – front and side view showing fan vent, yellow warning label, and power output cables API-3189S power supply specification label – showing model, input voltage 100-240V, DC output rails, revision B, date code A9750, and certifications
