Description
Enhance Electronics ATX-1123B 230W ATX Desktop PC Power Supply 100-240V
ATX form factor power supply for desktop computers. Supplies regulated DC power to motherboards and peripherals via multiple voltage rails and connector types.
Specifications & What's Included
- Model: ATX-1123B | Power Output: 230W (120W combined)
- Input: 100-127V / 6A 60Hz or 200-240V / 3.5A 50Hz
- Output Voltages: +3.3V/14A, +5V/22A, +12V/8A, -12V/0.8A, -5V/0.5A, +5Vsb/1A
- Connectors: 20-pin ATX motherboard, Molex, floppy (attached harness); IEC C14 AC inlet
- Manufactured: Taiwan, December 1999
- Certifications: UL E166947, CE, FCC
Applications
This ATX power supply was designed for standard desktop PC builds from the late 1990s and early 2000s. Compatible with ATX form factor cases and motherboards requiring 20-pin connectors and legacy peripheral power. Historically used in commercial and consumer desktop systems from that era.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

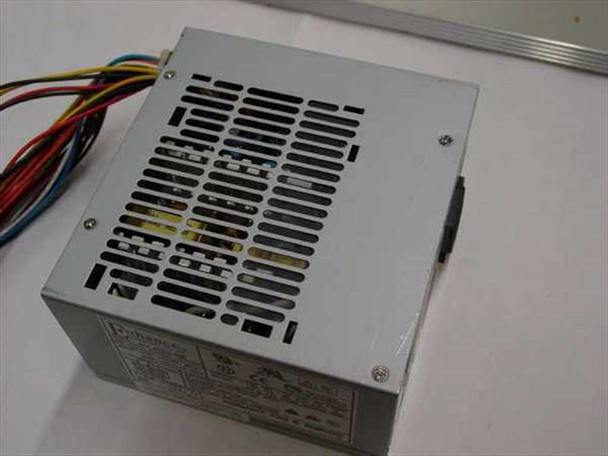

This Enhance Electronics ATX-1123B 230W ATX Power Supply for Desktop PC has been inspected and is in good used condition. The unit displays normal cosmetic wear from prior use, including minor surface marks on the metal housing. All components are present and intact, including the 20-pin ATX motherboard connector, Molex drive connectors, floppy connector, rear IEC C14 AC inlet, cooling fan, voltage selector switch, and power switch. The unit was bench-tested at our facility and is in good working condition. Please review the photo set for additional details, and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Enhance Electronics |
Model: |
ATX-1123B |
MPN: |
ATX-1123B |
SKU: |
13606 |
Condition: |
Used – Inspected |
Seller Notes: |
Includes attached output harness with 20-pin ATX, Molex, and floppy connectors |
Form Factor: |
ATX |
Power Output: |
230W (120W total combined output) |
Input Voltage: |
100-127V / 6A 60Hz or 200-240V / 3.5A 50Hz |
Output Voltages: |
+3.3V, +5V, +12V, -12V, -5V, +5VSb |
Output Currents: |
+3.3V/14A, +5V/22A, +12V/8A, -12V/0.8A, -5V/0.5A, +5Vsb/1A |
Connector Type: |
IEC C14 AC inlet; 20-pin ATX motherboard connector |
Compatible With: |
ATX form factor desktop PC cases and motherboards |
Certifications: |
UL E166947, CE, FCC |
Country of Manufacture: |
Taiwan |
Manufacture Date: |
December 1999 (label date code 99.12) |
Condition Notes: |
Enhance Electronics ATX-1123B 230W ATX Desktop Power Supply. Good used condition with minor cosmetic wear. All connectors present & intact. Bench-tested, working condition. |
