Huntington Stainless 90° Elbow DN50KF NW-50 Vacuum Flange w/ 1/8" NPT

Huntington Stainless 90° Elbow DN50KF NW-50 Vacuum Flange w/ 1/8" NPT Feedthrough

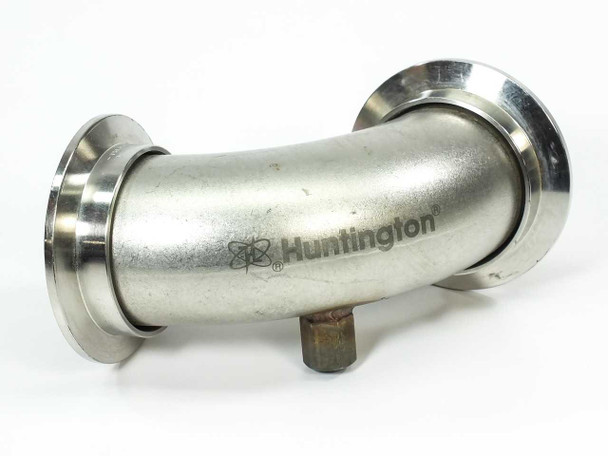

This Huntington Mechanical Labs stainless steel 90-degree radius elbow is a DN50KF (NW-50) vacuum flange fitting with an integrated 1/8" female NPT electrical feedthrough port welded into the elbow body. It is designed for use in high-vacuum plumbing runs where a 90-degree direction change is needed between two DN50KF-flanged components, and where an electrical or instrumentation signal must pass through the vacuum boundary via the NPT feedthrough port.

Specifications & What's Included

• Brand: Huntington Mechanical Labs — Mt. View, CA — Made in USA
• Flange standard: DN50KF / NW-50 (ISO-KF quick-flange)
• Elbow angle: 90 degrees (radius elbow)
• Flange outer diameter (OD): 75 mm

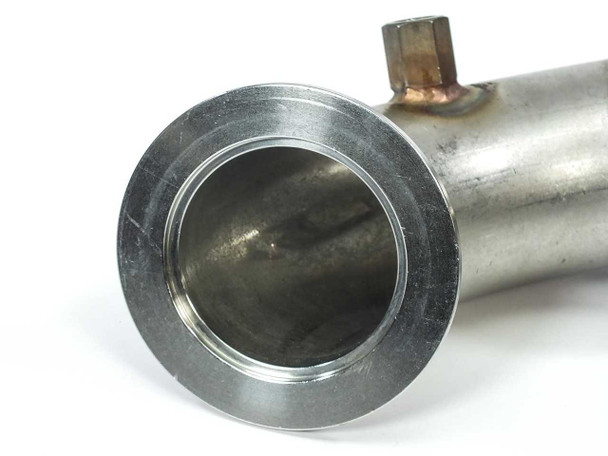

• Tube inner diameter (bore ID): 52 mm
• Tube inner bore: 47 mm
• Body material: Stainless steel

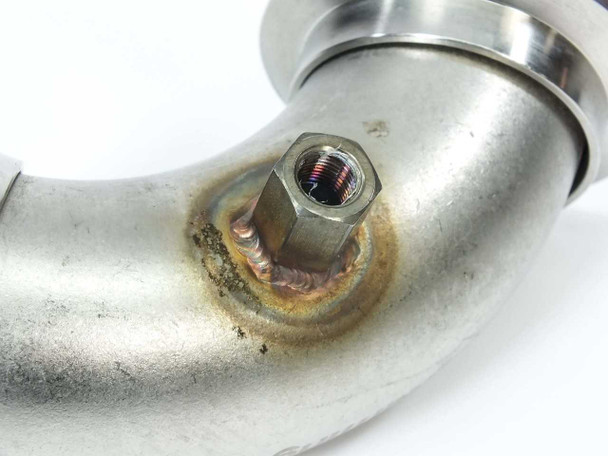

• Feedthrough port: 1/8" female NPT, welded into elbow body
• Feedthrough type: Electrical / instrumentation feedthrough port

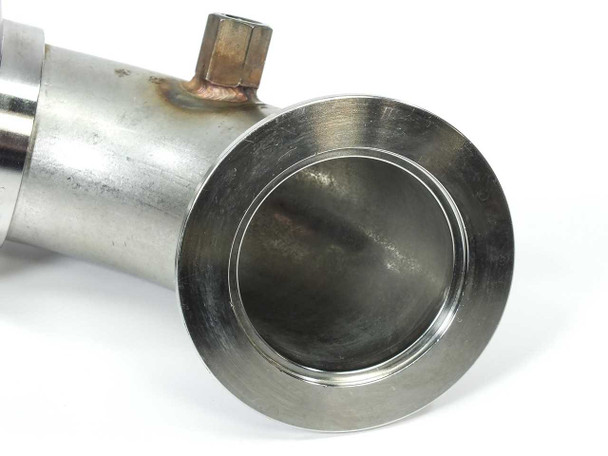

• Both DN50KF flange faces present and intact
• No additional accessories, centering rings, or clamps included

Applications
