HP Z2220A Z2220-61601 Breakout Cable for Agilent E1467A VXI Switch Matrix BNC

(No reviews yet) Write a Review
SKU:
51817
MPN:
Z2220-61601
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

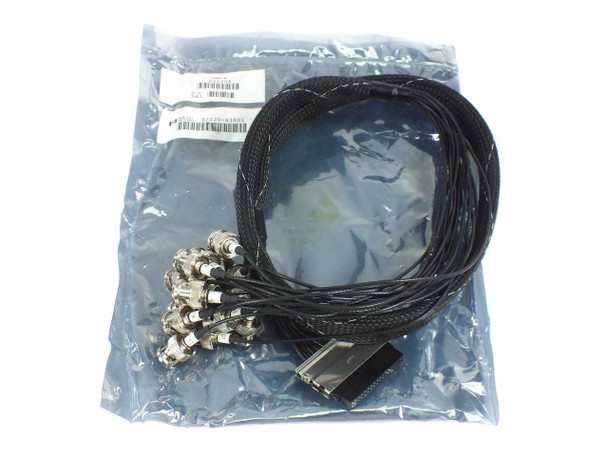

  • HP Z2220A Z2220-61601 BNC breakout cable assembly in anti-static bag, full bundle view
  • HP Hewlett-Packard product labels showing Z2220A product number, Option 543, and Z2220-61601 part number

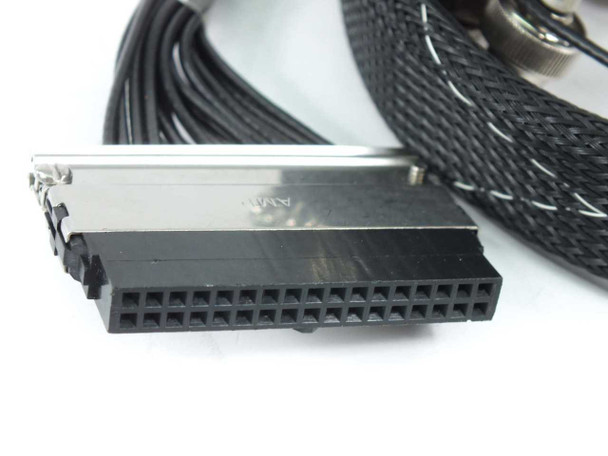

  • HP Z2220A breakout cable — close-up of ribbon/IDC connector end with braided cable sleeving
  • HP Z2220A breakout cable — close-up of multiple numbered BNC connectors at fanout end
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

HP Z2220A Z2220-61601 Breakout Cable for Agilent E1467A VXI Switch Matrix BNC

The HP Z2220A (part number Z2220-61601, Option 543) is a multi-BNC breakout cable harness designed to interface with the Agilent (Hewlett-Packard) E1467A VXI Switch Matrix Module. The cable routes signals from the module's ribbon/IDC connector and fans them out to a set of individually numbered BNC connectors, allowing direct coaxial connections to instruments or devices under test in a VXI switching system.

Specifications & What's Included

  • Manufacturer: Hewlett-Packard (Agilent)
  • Product Number: Z2220A
  • Part Number: Z2220-61601
  • Option: 543
  • Type: BNC Breakout / Fanout Cable Harness
  • Compatible Module: Agilent / HP E1467A VXI Switch Matrix Module
  • Connector — module end: ribbon/IDC-style connector (visible in photos)
  • Connector — instrument end: multiple individually numbered BNC connectors
  • Cable: braided black sleeving over individual coaxial runs
  • Includes: complete Z2220A cable harness assembly

Applications

The E1467A is a VXI-bus switch matrix module used in automated test equipment (ATE) systems, where it routes analog signals between instruments and devices under test under software control. The Z2220A breakout cable is the physical interface that connects the module's internal switching paths to external BNC-terminated instruments — such as oscilloscopes, signal generators, DMMs, or stimulus/response test gear — on the bench or in a rack-based test system. VXI (VME eXtensions for Instrumentation) was the dominant high-throughput ATE bus standard from the late 1980s through the 2000s, used extensively in defense, aerospace, semiconductor, and commercial electronics test environments. Replacement and spare breakout cables for established VXI switch matrix installations remain in demand for system maintenance and expansion.

Condition: New
This HP Z2220A (Z2220-61601) BNC Breakout Cable for the Agilent E1467A VXI Switch Matrix Module is new and unused — open box condition. The cable assembly appears uninstalled and in original factory condition, still in its anti-static bag. Please view our photo set and contact us if you have any questions.
