Description
HP Z2220-61602 Z2220A Breakout Cable Agilent E1467A VXI Switch Matrix BNC
BNC breakout cable set for the Agilent E1467A VXI Switch Matrix module. Connects the matrix card-edge interface to eight BNC connectors via braided multi-conductor harness.
Specifications & What's Included
- Model: Z2220-61602 (Z2220A); Revision B, Option 446

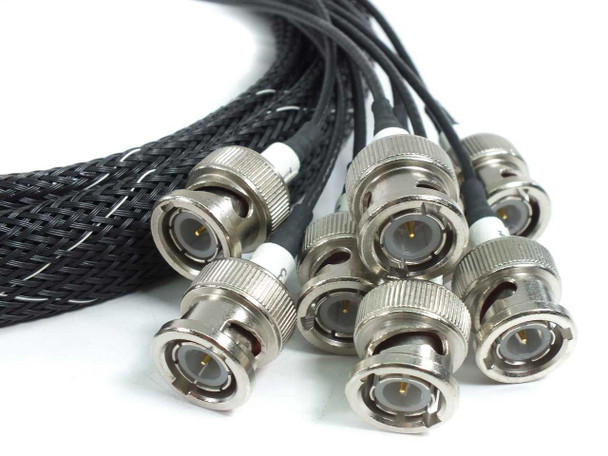

- 8 BNC male connectors on braided sleeved harness

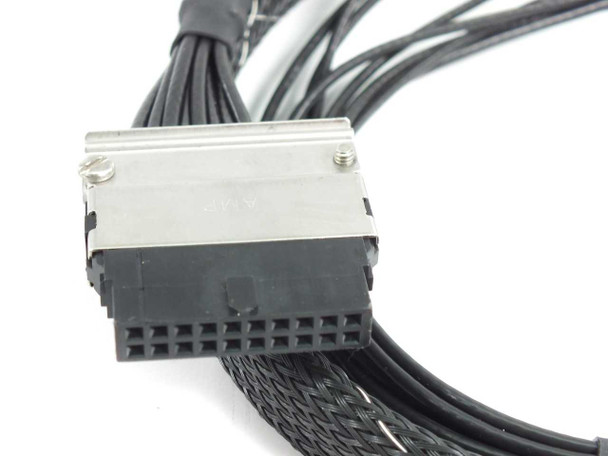

- Card-edge connector to VXIbus interface
- Manufactured October 1994, USA

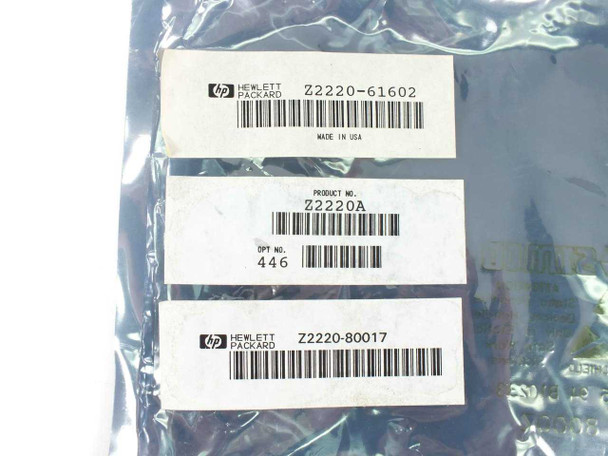

- Includes original HP labels
Applications
This cable interfaces with the E1467A VXI Switch Matrix module in VXI test and measurement systems. The E1467A was used for signal routing and switching in automated test equipment (ATE) and laboratory environments. The breakout cable enables direct BNC connections to RF and analog signal lines, commonly deployed in telecommunications testing, component characterization, and bench instrumentation setups from the 1990s forward.
Condition: New
This HP Z2220-61602 (Z2220A) BNC Breakout Cable set for the Agilent E1467A VXI Switch Matrix Module is new and unused. It is open-box condition — the item is new and uninstalled but the original packaging may be open. The cable harness and all HP labels are present and intact as shown in our photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This HP Z2220-61602 (Z2220A) BNC Breakout Cable set for the Agilent E1467A VXI Switch Matrix Module is new and unused. It is open-box condition — the item is new and uninstalled but the original packaging may be open. The cable harness and all HP labels are present and intact as shown in our photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Hewlett-Packard |
Model: |
Z2220-61602 |
Secondary Model: |
Z2220A |
MPN: |
Z2220-61602 |
Also Known As / Alt Part No.: |
Z2220-80017, Z222061602, Z222080017 |
Option: |
446 |
Revision: |
Rev B |
Manufacture Date: |
10/94 (October 1994) |
Country/Region of Manufacture: |
United States |
Type: |
BNC Breakout Cable Set |
Compatible With: |
Agilent / HP E1467A VXI Switch Matrix Module |
Connector Type: |
BNC (male) to multi-pin card-edge connector |
Number of BNC Connectors: |
8 |
Cable Style: |
Braided sleeved multi-conductor breakout harness |
Interface: |
VXIbus |
SKU: |
51816 |
Condition: |
New – Open Box |
Seller Notes: |
New open-box. Includes cable harness with 8 BNC connectors and all HP labels. Rev B, Option 446. |
Condition Notes: |
HP Z2220-61602 Z2220A BNC breakout cable for Agilent E1467A VXI Switch Matrix. New open-box — unused, all labels intact. Original packaging may be open. Please view photos and contact us with any questions. |
