HP QEDS-9500 Rotary Position Encoder Assembly Optical Incremental 6-Pin

(No reviews yet) Write a Review
SKU:
31595
MPN:
QEDS-9500
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
0.40 LBS
Shipping:
Calculated at Checkout

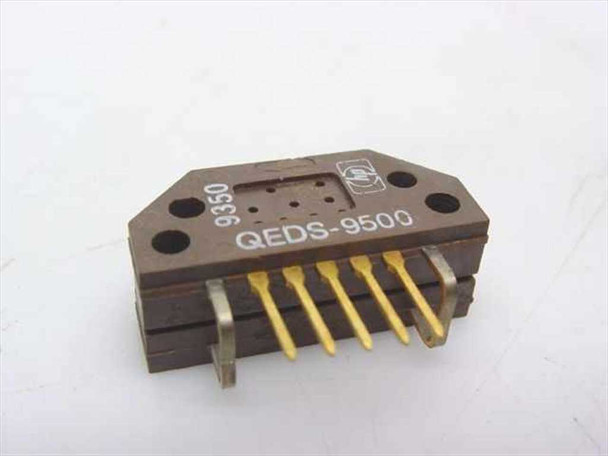

  • HP QEDS-9500 rotary optical encoder assembly — top and front view showing model label and 6 gold-plated PCB pins

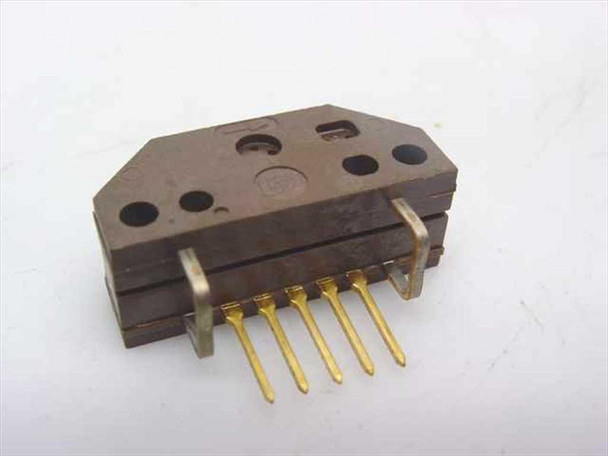

  • HP QEDS-9500 encoder assembly — angled rear view showing pin leads and mounting holes on brown housing

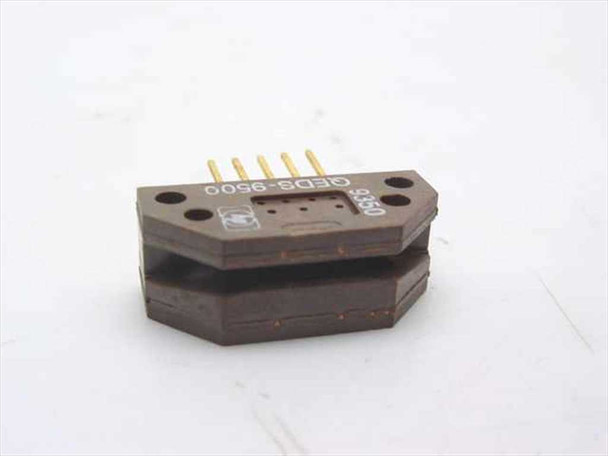

  • HP QEDS-9500 rotary position encoder — opposite side view showing optical aperture slot and model marking on housing
$38.00
Was: $80.00
Current Stock: 14

Sold Out

Description

HP QEDS-9500 Rotary Position Encoder Assembly Optical Incremental 6-Pin

Optical incremental rotary encoder for position and motion sensing applications. Outputs incremental position data via 6-pin PCB mount connection with gold-plated contacts.

Specifications & What's Included

  • Brand: HP (Hewlett-Packard)
  • Model: QEDS-9500
  • Type: Rotary Optical Encoder Assembly
  • Sensing Technology: Optical
  • Output Type: Incremental
  • Pins: 6, gold-plated contacts
  • Mounting: PCB Mount
  • Manufactured in Japan

Applications

This encoder type is used in motion control systems, robotics, and automation equipment to track rotational position and speed. Commonly integrated into industrial machinery, printing systems, and positioning equipment that require continuous position feedback. Compatible with motion control subsystems and robotic automation platforms that accept incremental encoder inputs.

Condition: Open Box
This HP QEDS-9500 Rotary Position Encoder Assembly is new open-box stock. It is new from the manufacturer but may have been stored for an extended period, could be past its shelf date, or may no longer be in its original packaging. The housing and gold-plated pin contacts appear intact and undamaged in our photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HP (Hewlett-Packard)
Model:
QEDS-9500
MPN:
QEDS-9500
Type:
Rotary Optical Encoder Assembly
SKU:
31595
Sensing Technology:
Optical
Output Type:
Incremental
Number of Pins:
6
Contact Material:
Gold-plated
Mounting Type:
PCB Mount
Encoder Type:
Rotary Position Encoder
Application:
Motion Control, Position Sensing
Seller Notes:
Sold individually. New open-box stock — new from manufacturer, may have been stored or out of original packaging.
Country/Region of Manufacture:
Japan
Compatible With:
Motion control systems, robotics, automation equipment
Condition Notes:
HP QEDS-9500 Rotary Encoder — new open-box. New from manufacturer but may have been stored long-term, past shelf date, or removed from original packaging. Pins and housing appear intact. Contact us with questions.
