HP E1326B E1411B 75000 Series B/C 5.5-Digit Multimeter User's Manual E1326-90003

HP E1326B E1411B 75000 Series B/C 5.5-Digit Multimeter User's Manual E1326-90003

This is the original Hewlett-Packard User's Manual for the HP E1326B and E1411B 5.5-digit VXI multimeters, covering both the Series B and Series C configurations of the HP 75000 VXI instrument family. Publication part number E1326-90003, August 1990, Edition 1. The manual is printed and bound in a 3-ring binder with tabbed sections for easy reference.

Specifications & What's Included

• Publication Part Number: E1326-90003
• Microfiche Part Number: E1399-99003
• Print Date: August 1990
• Edition: Edition 1
• Covers: HP E1326B and HP E1411B 5.5-Digit Multimeters
• Instrument Family: HP 75000 Series B/C
• Interface Covered: VXI / VME bus, IEEE-488.2, SCPI command set
• Format: Printed 3-ring binder with tabbed section dividers
• Language: English

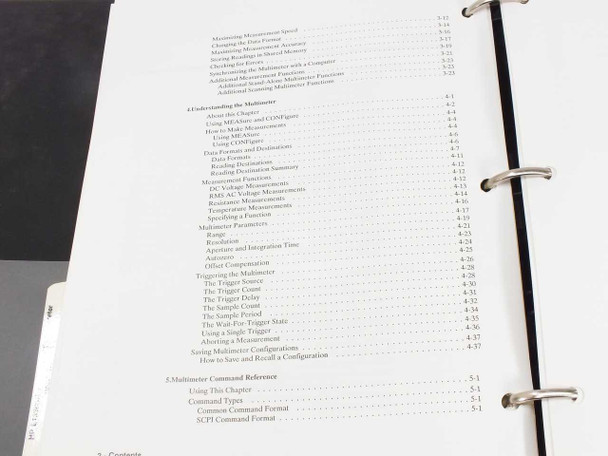

• Chapters include: Getting Started, Configuring the Multimeter, Using the Multimeter, Understanding the Multimeter (MEASure/CONFigure, measurement functions, parameters, triggering), Multimeter Command Reference (SCPI, IEEE-488.2)
• Appendices include: Specifications, Error Messages, Register-Based Programming (register descriptions, program timing, stand-alone and scanning measurements, throughput comparisons), Useful Tables (command opcodes, power-on settings, aperture change times, VME interrupts)
• Manual only — no instrument included
