This is the original HP (Agilent Technologies) User's Manual for the E1326B and E1411B VXIbus Multimeters, presented in a white Agilent-branded tabbed 3-ring binder. The manual covers the complete operation of both instruments — from installation and initial configuration through advanced SCPI programming, register-based control, and measurement optimization. All content is printed in English and organized with tabbed dividers for quick reference.

Specifications & What's Included

• Manual covers: HP / Agilent E1326B Multimeter and E1411B Multimeter
• Instrument type: VXIbus (VME-based) precision multimeter modules
• Format: Printed pages in tabbed Agilent Technologies white 3-ring binder
• Language: English

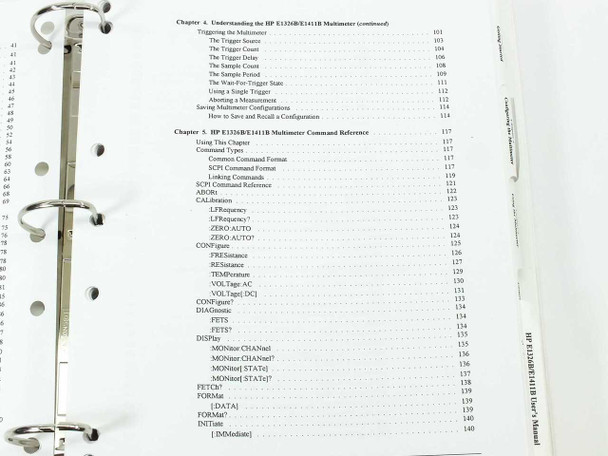

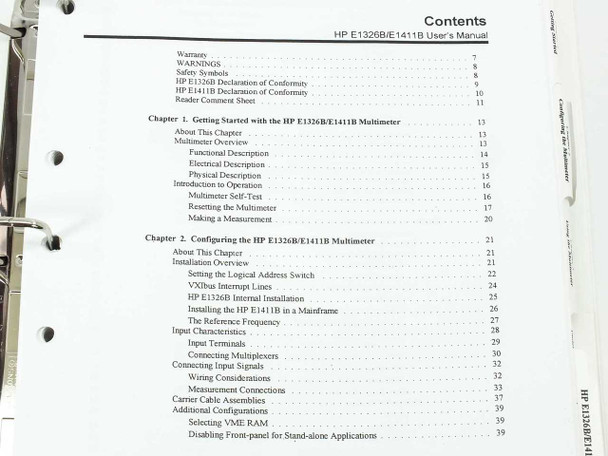

• Chapters: Getting Started, Configuration, Using the Multimeter, Understanding the Multimeter, SCPI Command Reference
• Appendices: Multimeter Specifications (Appendix A), Error Messages (Appendix B), Register-Based Programming (Appendix C), Measurement Speed & Accuracy Tradeoffs (Appendix D)
• SCPI commands covered: MEASure, VOLTage AC/DC, RESistance, TEMPerature, SCANs, TRIGger, SAMPle, READ, FETCh, INITiate, SYSTem, and IEEE 488.2 common commands
• Additional topics: VXIbus interrupt lines, HP-IB (HP 82133) interface card usage, PC C-language programming, logical address switch settings, VME RAM selection, switchbox channel scanning (E1326B, E1460A), multiplexer connections
• Condition: All pages present and legible; tabbed binder with minor shelf wear on cover
