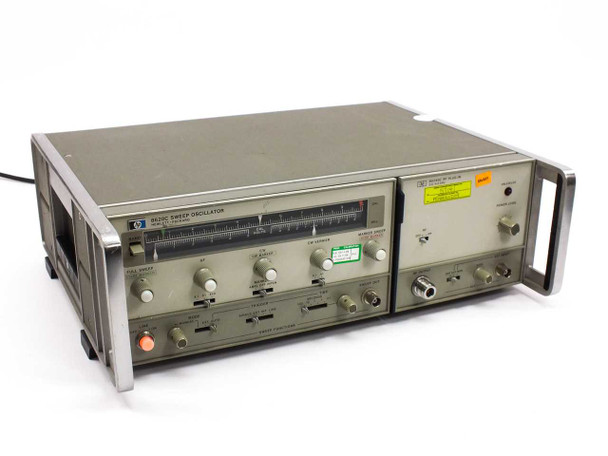

HP 8620C Sweep Oscillator 86240C RF Plug-In 3.6-8.6GHz Rackmount Hewlett-Packard
The HP 8620C is a solid-state multiband sweep oscillator mainframe designed to accept interchangeable RF plug-ins for flexible microwave frequency coverage. This unit is fitted with the 86240C RF plug-in, which provides a continuous sweep range of 3.6 to 8.6 GHz. The complete assembly is housed in a 19-inch rack-mount chassis with integrated handles.
Specifications & What's Included
- Mainframe Model: HP 8620C Sweep Oscillator
- RF Plug-In Model: HP 86240C
- Frequency Range: 3.6 to 8.6 GHz
- Form Factor: 19-inch rackmount with integral rack handles
- Front Panel: Band selector switch, frequency sweep scale, Full Sweep / Start Marker control, ΔF control, sweep function controls
- Rear Panel: GPIB (IEEE-488) parallel interface connector
- Rear Panel: BNC connectors — Pulse In, Ext ALC In, MLA, Norm, FM, Freq Ref, RF Out
- Rear Panel: Switch panel with RF blanking, display blanking, trigger, Z-axis/marker, pen lift, and AM controls
- Power Input: LINE V = 5–10%, 48–440 Hz, 250VA Max (visible on rear label)
- Cooling: Rear-mounted fan with filter
Applications
The HP 8620C sweep oscillator mainframe was developed by Hewlett-Packard as the signal source component of scalar and vector network analyzer systems. Paired with plug-ins covering various microwave frequency bands, the 8620C provided swept RF stimulus for measuring the transmission and reflection characteristics of two-port microwave components such as filters, amplifiers, mixers, and attenuators. It was commonly used with HP scalar network analyzers such as the HP 8757 series and HP 8410 vector network analyzer systems in RF and microwave component test laboratories, defense electronics, and telecommunications development environments. The 8620 series remains sought after by labs maintaining legacy HP network analyzer setups and by technicians testing microwave components in the C- through X-band frequency range.
This HP 8620C Sweep Oscillator with 86240C RF plug-in is being sold as-is for parts or repair. The unit does power on; however, it has not been tested for full RF functionality at our facility, and we cannot confirm whether all functions operate as intended or whether any internal components may be missing. Buyers should plan to evaluate or repair the unit upon receipt. The chassis and front panel show typical wear consistent with lab use, including light scuffing on the enclosure. The rear fan filter shows dust accumulation. Please view our complete photo set for a full visual assessment and contact us with any questions before purchasing.
