HP 8620B Sweep Oscillator Mainframe Hewlett-Packard 86220A Plug-In Slot RF
Benchtop sweep oscillator mainframe from Hewlett-Packard's 8620 series. This unit generates swept RF signals for measurement and testing applications and accepts compatible plug-in modules for operation across multiple frequency bands.
Specifications & What's Included
- Model: HP 8620B; one empty plug-in slot (plug-in module not included)
- Compatible plug-in modules: HP 86220A, 86222A, 86230A, 86240A, 86245A
- Sweep modes: Manual Sweep, Slow/Fast, CW, Trigger (Line/Auto/Ext/Single)
- Power: 115V/230V AC, 50/60Hz, 440V; 180VA maximum

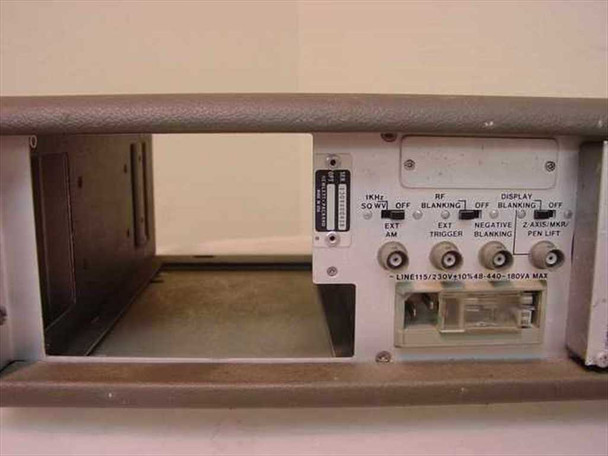

- Rear panel: BNC connectors, IEC-style AC inlet, large ventilation grille
Applications
The 8620B mainframe was used in RF and microwave laboratories for swept frequency measurements, component characterization, and system testing. It serves as the control and power base for the 86220A and compatible RF plug-in modules, which determine the operating frequency range. Widely deployed in telecommunications, radar, and general RF test environments through the 1980s and 1990s.
Condition: Used

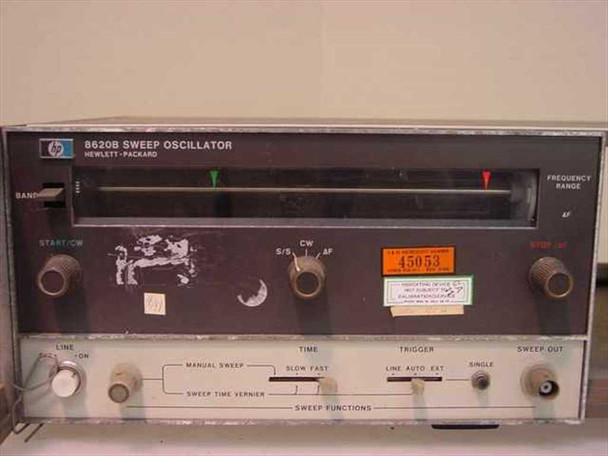

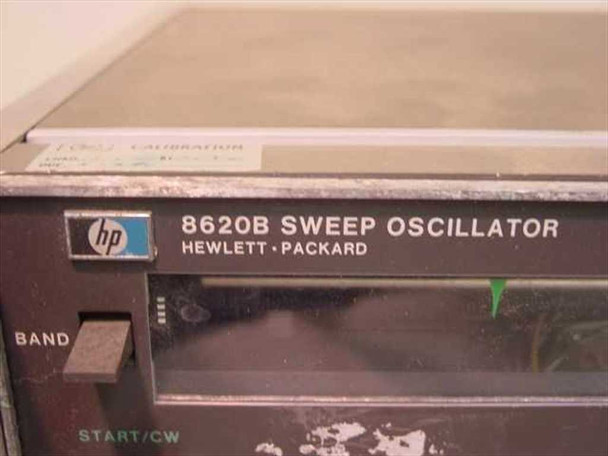

This HP 8620B Sweep Oscillator Mainframe by Hewlett-Packard has been inspected and appears to be in good condition. The mainframe houses one installed plug-in module and one empty plug-in slot, as seen in the photos. The front panel shows normal wear and surface soiling typical of lab use, including some darkening around the knobs and controls. A calibration sticker is visible on the front panel. The rear panel and ventilation grille appear intact. Please view our photo set and contact us if you have any questions.
This HP 8620B Sweep Oscillator Mainframe by Hewlett-Packard has been inspected and appears to be in good condition. The mainframe houses one installed plug-in module and one empty plug-in slot, as seen in the photos. The front panel shows normal wear and surface soiling typical of lab use, including some darkening around the knobs and controls. A calibration sticker is visible on the front panel. The rear panel and ventilation grille appear intact. Please view our photo set and contact us if you have any questions.
