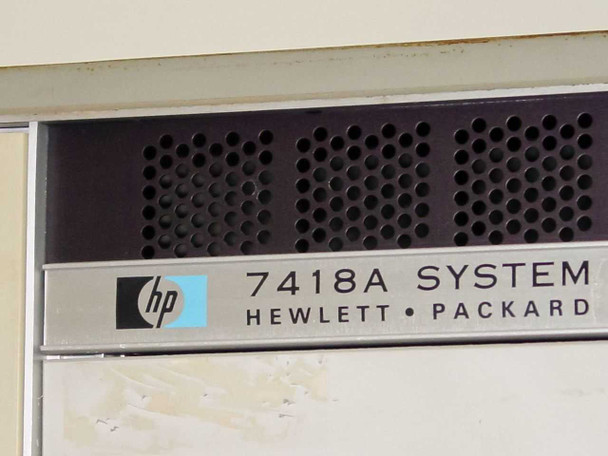

  • HP 7418A System nameplate closeup – Hewlett-Packard logo and model designation on top vent panel
  • Eight HP 8801A low-gain DC amplifier plug-in modules installed in the HP 7418A recorder chassis – front panel controls visible
  • HP 7418A rack cabinet exterior – front door closed, full-height tan steel enclosure with ventilation grill and caster base
  • HP rear label showing 115V ±10%, 12A Max, 50-60Hz power specs and Model 1065A serial number plate – Made in USA
  • HP 7418A rack cabinet interior – door open showing internal wiring, ribbon cables, and mounted components on rack rails
  • Internal power/signal distribution assembly inside HP 7418A rack – large capacitors, circular multi-pin connectors J16–J18, and wiring harness
  • Closeup of internal connector panel – circular multi-pin connectors labeled J18, J17, J16, J28, J27, J26 with wiring attached
  • Internal rear panel showing DB-9 connectors J34 (Signal Output) and J33 (Recorder Input), plus labeled fuse/oscillator controls F2–F5
  • Interior rack rail outlet strip – two IEC outlets labeled 6A max per outlet, 12A combined, 10V-210V
  • Accessories lot included with HP 7418A system – cables, thermal stylus supplies, connectors, hardware bags, and documentation envelope
  • Closeup of HP 8801A DC amplifier plug-in front panels showing Range V/Div, Gain, Position, and Cal & Zero Suppr Volts controls
$500.00
Was: $1,000.00
Current Stock: 1

Sold Out

Description

HP 7418A 8-Channel Chart Recorder System 8x 8801A DC Amplifier Plug-In Rack

Thermal tip strip chart recorder system in full-height rack cabinet configuration. Equipped with 8 HP 8801A low-gain DC amplifier plug-in modules for multi-channel signal recording and data acquisition.

Specifications & What's Included

  • 8-channel thermal tip strip chart recorder
  • 8x HP 8801A DC amplifier plug-ins (low gain)
  • HP 1065A rack enclosure (full-height cabinet)
  • Power: 115V ±10%, 50-60Hz, 12A max
  • Includes cables, connectors, thermal stylus accessories, hardware
  • Multi-pin circular and DB-9 connectors

Applications

This recorder type was used in laboratory measurement, signal recording, and data acquisition applications. Compatible with HP 7400 Series chart recorder systems. Commonly found in test and measurement environments where simultaneous recording of multiple analog signals was required for analysis and documentation purposes.

Condition: For Parts or Not Working
This HP 7418A 8-Channel Thermal Tip Chart Recorder System is being sold as-is for parts or repair. The system is not guaranteed functional and has not been tested at our facility. It includes the full-height HP 1065A rack cabinet with eight HP 8801A low-gain DC amplifier plug-in modules installed, along with a substantial accessories lot — cables, thermal stylus supplies, connectors, and miscellaneous hardware visible in the photos. The cabinet shows surface-level wear and grime consistent with lab use; the plug-in module faceplates show yellowing, soiling, and some paint loss on several panels. Internal wiring and the power/signal distribution assembly are intact and visible. This is a for-parts listing — buyers should plan to evaluate and service components individually. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hewlett-Packard
Model:
7418A
MPN:
7418A
Secondary Model:
8801A
Type:
Thermal Tip Strip Chart Recorder System
SKU:
9074
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes 8x 8801A DC plug-in amplifiers and accessories lot
Country/Region of Manufacture:
United States
Form Factor:
Full-Height Rack Cabinet
Cabinet Model:
HP 1065A Rack Enclosure
Power Requirements:
115V ±10%, 50-60Hz, 12A Max
Number of Channels:
8
Plug-In Type:
HP 8801A Low Gain DC Amplifier
Number of Plug-Ins:
8
Amplifier Gain:
Low Gain DC
Recorder Type:
Thermal Tip Strip Chart Recorder
Application:
Data Acquisition, Signal Recording, Lab Measurement
Included Accessories:
Cables, connectors, thermal stylus accessories, misc hardware
Compatible With:
HP 7400 Series Chart Recorder System
Internal Connectors Visible:
Multi-pin circular (J16–J18, J26–J28), DB-9 (J34, J33)
Outlet Strip:
6A max per outlet, 12A combined, 10V-210V
Condition Notes:
HP 7418A 8-Ch Chart Recorder System sold as-is for parts or repair. Not tested or guaranteed functional. Includes 8x HP 8801A DC plug-ins and accessories lot. Cabinet and modules show wear. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

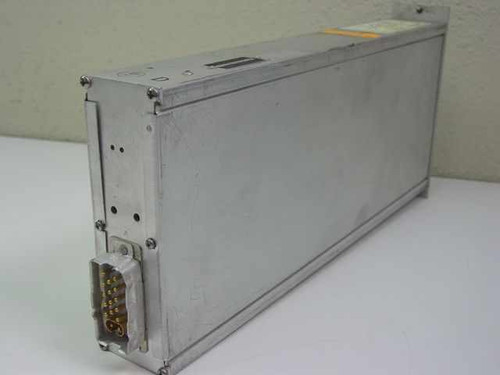

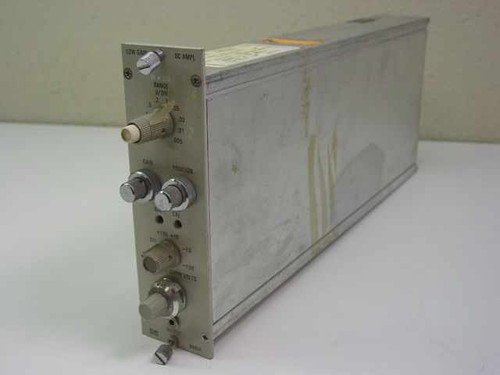

HP 8801A Low Gain DC Amplifier plug-in module — angled front and right-side view showing front panel controls and aluminum chassis with staining on side HP 8801A DC Amp plug-in module — left-side and rear view showing aluminum enclosure and multi-pin gold-contact rear connector
