Gould 13-4615-10 DC Amplifier Plug-In Module Chart Recorder 13461510 w/ Cable
The Gould 13-4615-10 is a DC amplifier plug-in module made by Gould Inc.'s Instruments Division in Cleveland, Ohio. It is designed to plug into compatible Gould chart recorder mainframes and provides signal conditioning for low-level DC signals before they are sent to the recorder's pen drive circuitry. The module includes a BNC output cable terminating in a circular multi-pin connector for interfacing with the host system.
Specifications & What's Included
- Model: 13-4615-10 (also referenced as 13461510)
- Manufacturer: Gould Inc., Instruments Division, Cleveland, Ohio, USA
- Type: DC Amplifier Plug-In Module
- Form Factor: Plug-in module (card/module chassis mount)
- Volts Full Scale selector: Off, 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5 V
- Sensitivity control: rotary knob with 1 and 10 positions
- Multiplier toggle switch: x1 / x100
- Zero suppression: ±1V / Off / ±10V toggle with vernier fine-adjust dial
- Filter settings: Off, 5 Hz, 15 Hz
- Balance trimmer: front-accessible adjustment
- Output connector: BNC (via included cable)

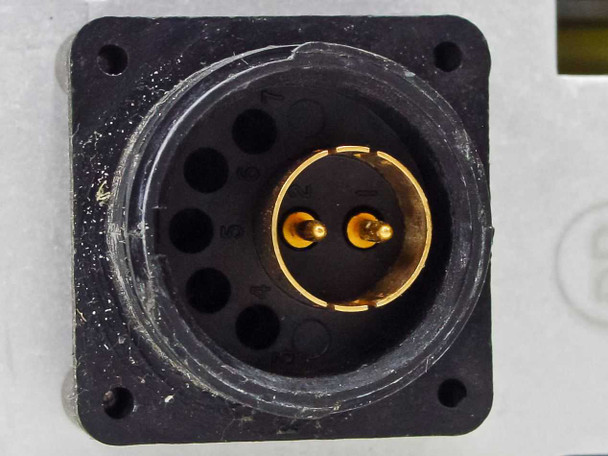

- Input connector: circular multi-pin connector (2-pin gold contact insert)

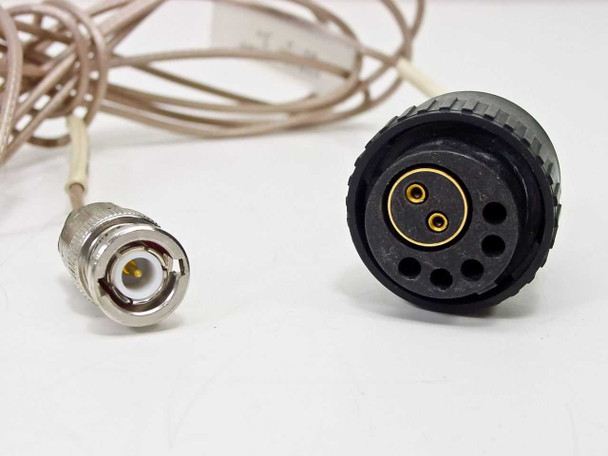

- Included: BNC output cable with mating circular multi-pin connector
Applications
DC amplifier plug-in modules like the Gould 13-4615-10 are used in analog chart recorder systems to condition low-level DC voltage signals for accurate pen-trace recording. These plug-in architectures were common in research, industrial process monitoring, and laboratory data acquisition from the 1970s through the 1990s, allowing users to configure a single recorder mainframe with different amplifier types suited to specific measurements. The Gould Instruments Division produced a range of such plug-in modules for their strip chart and multi-channel recorders, which were widely used in biomedical research, mechanical testing, geophysical monitoring, and process control environments. Surplus plug-in modules like this one are still sought after today by labs and facilities maintaining legacy Gould recorder systems.

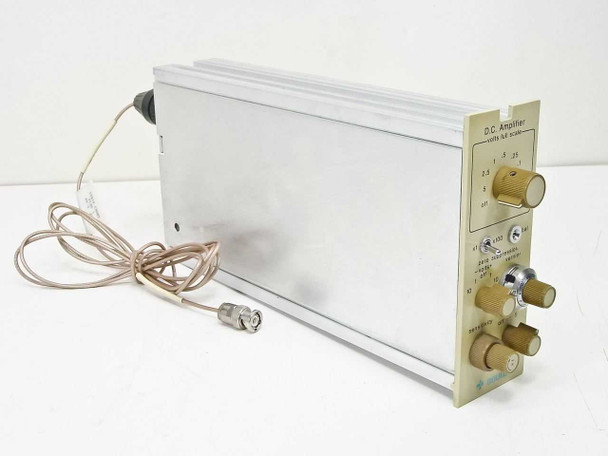

This Gould 13-4615-10 DC Amplifier Plug-In Module has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The aluminum chassis shows minor surface wear consistent with normal lab use. The front panel controls — including the volts full scale selector, sensitivity knob, zero suppression vernier, and filter dial — are all present and intact. The included BNC output cable and circular multi-pin mating connector are included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
