Description
Honeywell V3-13 Micro Switch Assembly 4AC2 Push Button Indicator Light 250VAC

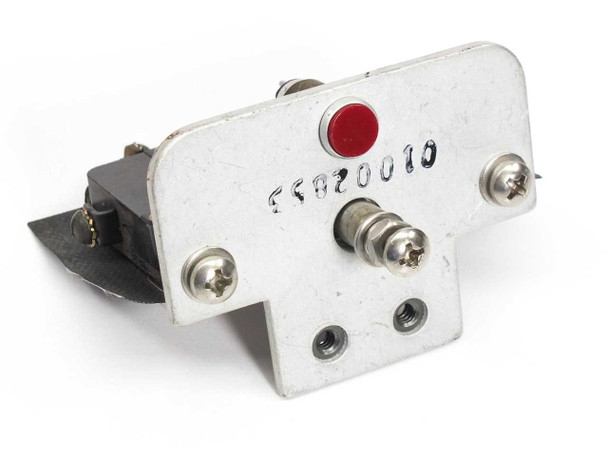

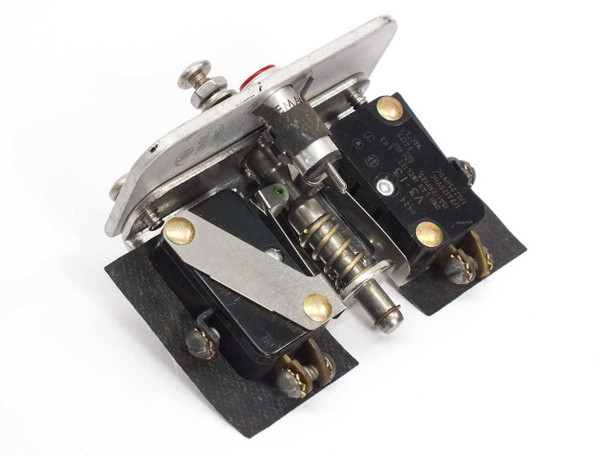

This is a Honeywell V3-13 micro switch assembly configured with two V3-13 snap-action switches, a push-pull button actuator, and a red indicator light, all mounted on a metal bracket. The V3 series are compact snap-action microswitches widely used in industrial control, automation, and electromechanical systems for precise switching and position sensing. The switches are wired into the bracket assembly, forming a ready-to-integrate subassembly for panel or machine mounting.
Specifications & What's Included
- Model: Honeywell V3-13
- Assembly/Kit Number: 4AC2
- Quantity of V3-13 Switches: 2
- Actuator: One push-pull button
- Indicator: One red indicator light
- Voltage Rating (AC): 250VAC
- Current Rating (AC): 15A at 125VAC
- Horsepower Rating: 1/2HP at 125VAC
- Current Rating (DC): 1/2A at 125VDC; 1/4A at 250VDC
- UL Listed (visible on switch label)
- Mounting: Metal bracket with threaded mounting holes; base plates on each switch
- Spring-loaded actuator mechanism visible between switch bodies
Applications
Honeywell V3-series microswitches are used throughout industrial automation, electromechanical equipment, and control panel systems for limit switching, door interlocking, position detection, and safety control functions. This type of pre-assembled switch subassembly with an integrated indicator light is commonly found in machine control panels, industrial equipment interlocks, and motion-detection circuits. The assembly format makes it suited for direct replacement or retrofit in systems originally built around V3-series snap-action switches.
This Honeywell V3-13 Micro Switch Assembly (4AC2) has been inspected and is in good used condition. The assembly includes two V3-13 micro switches, one push-pull button, and one red indicator light, all mounted on the original metal bracket. The switches and bracket show light surface wear consistent with prior use. The switch labels are legible and the hardware is intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Honeywell |
Model: |
V3-13 |
MPN: |
V3-13 |
Secondary Model: |
4AC2 |
SKU: |
49318 |
Type: |
Micro Switch Assembly |
Switch Series: |
V3 |
Voltage Rating (AC): |
250VAC |
Voltage Rating (DC): |
125VDC / 250VDC |
Current Rating: |
15A at 125VAC; 1/2A at 125VDC; 1/4A at 250VDC |
Power Rating: |
1/2HP at 125VAC |
Number of Switches Included: |
2 |
Included Components: |
2x V3-13 switches, 1x push-pull button, 1x indicator light |
Actuator Type: |
Push Button |
Indicator: |
Red indicator light |
Mounting Style: |
Panel / Bracket Mount |
Certifications: |
UL Listed |
Condition: |
Used – Inspected and in good condition |
Seller Notes: |
Includes two V3-13 switches, one push-pull button, and one indicator light |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
Honeywell V3-13 Micro Switch Assembly 4AC2 inspected and in good used condition. Includes two V3-13 switches, push-pull button, and red indicator light on original bracket. Light surface wear; hardware intact. |
