Hipro HP-200NLXAK 200W ATX Desktop Power Supply 115V 230V 50/60Hz REV 01
200W ATX form factor power supply for desktop computers. Supports dual voltage input (115V or 230V) and 50/60Hz operation. Unit only; harness and Molex connectors attached as shown.
Specifications & What's Included
- Power Output: 200W maximum
- AC Input: 115V~/6A or 230V~/3.5A, 50/60Hz
- DC Rails: +5V @ 22A, +12V @ 7A, +3.3V @ 14A, -5V @ 0.5A, -12V @ 0.5A, +5VSB @ 1A
- Connector Type: ATX 20-pin, Molex 4-pin peripheral, floppy
- Fuse: T6.3AH/250VAC
- Certifications: UL, cUL, TÜV Rheinland Level 3
- Manufactured in Taiwan
Applications
This power supply is designed for ATX desktop computers from the legacy and vintage PC era. The 200W output and connector configuration support systems from the early 2000s and prior, including older Pentium and early Core-era builds. The dual voltage input made this unit suitable for international use in both North American and European markets.
Condition: Used

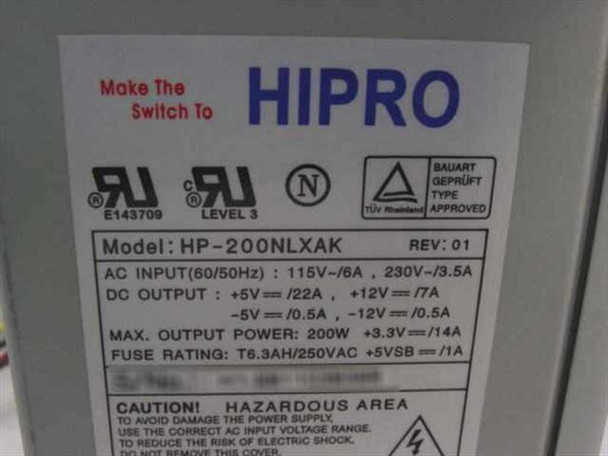

This Hipro HP-200NLXAK 200W ATX desktop power supply has been tested at our facility and is in good working order. The unit powers on and output voltages are confirmed functional. Cosmetically, the steel chassis shows typical light wear consistent with previous use, and all connector leads and Molex connectors appear intact and undamaged as shown in the photos. The label on the side panel is clean and fully legible, showing model number, revision, and full output specifications. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Hipro HP-200NLXAK 200W ATX desktop power supply has been tested at our facility and is in good working order. The unit powers on and output voltages are confirmed functional. Cosmetically, the steel chassis shows typical light wear consistent with previous use, and all connector leads and Molex connectors appear intact and undamaged as shown in the photos. The label on the side panel is clean and fully legible, showing model number, revision, and full output specifications. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Hipro |
Model: |
HP-200NLXAK |
MPN: |
HP-200NLXAK |
SKU: |
17899 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; harness and Molex connectors attached as shown. |
Form Factor: |
ATX |
Power Output: |
200W |
AC Input Voltage: |
115V~/6A or 230V~/3.5A |
Input Frequency: |
50/60Hz |
DC Output +5V: |
+5V = 22A |
DC Output +12V: |
+12V = 7A |
DC Output -5V: |
-5V = 0.5A |
DC Output -12V: |
-12V = 0.5A |
DC Output +3.3V: |
+3.3V = 14A |
Max Output Power: |
200W |
Fuse Rating: |
T6.3AH/250VAC; +5VSB = 1A |
Hardware Revision: |
REV 01 |
Certifications: |
UL, cUL, TÜV Rheinland, Level 3 |
Compatible With: |
ATX desktop computers, vintage and legacy PC builds |
Connector Type: |
Molex 4-pin peripheral, floppy, ATX 20-pin |
Country of Manufacture: |
Taiwan |
Condition Notes: |
This Hipro HP-200NLXAK 200W ATX desktop power supply has been tested at our facility and is in good working order. The unit powers on and output voltages are confirmed functional. |
