Description
Heidenhain LIF 10R Linear Encoder Scanning Head w/ Interpolator 295 621 03
The Heidenhain LIF 10R is a photoelectric incremental linear encoder scanning head designed to work with Heidenhain exposed linear glass scales. The system consists of two main components: a compact scanning head with a large-aperture optical lens that reads the linear scale, and a separate interpolator electronics unit connected by cable, which conditions and outputs the position signal. The assembly connects to downstream CNC controls or measuring systems via a circular multi-pin connector.
Specifications & What's Included
- Manufacturer: Heidenhain (D-83301 Traunreut, Germany)
- Model: LIF 10R
- Id.Nr. (Part Number): 295 621 03
- Encoder type: Incremental, photoelectric
- Scale compatibility: Exposed linear glass scale (LIF series)

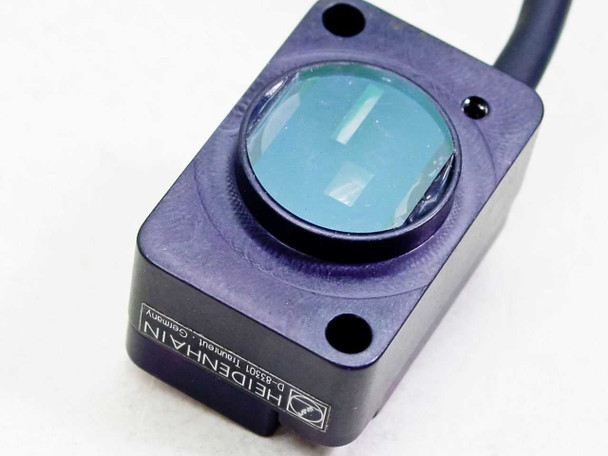

- Scanning head: Compact square housing with large circular blue-tinted optical lens
- Interpolator: Separate rectangular electronics unit, Heidenhain-branded
- Output connector: Circular multi-pin connector (gold pin contacts, rubber overmold housing)
- Country of manufacture: Germany
- Includes: Scanning head, interpolator unit, and full connecting cable
Applications
The Heidenhain LIF series encoders are used in precision linear positioning and measurement applications, most commonly in CNC machine tools (milling machines, machining centers, lathes, and grinding machines) where direct linear feedback — rather than rotary encoder feedback through a ballscrew — is required for the highest positioning accuracy. The scanning head reads a stationary glass scale affixed to the machine bed or axis, delivering incremental position data to the CNC control in real time. LIF-type encoders are also found in coordinate measuring machines (CMMs), semiconductor manufacturing equipment, precision test stages, and other metrology or automation systems where sub-micron positioning feedback is critical. Heidenhain has been a leading manufacturer of precision encoder systems for decades, and the LIF 10R is a mid-generation exposed linear encoder compatible with the Heidenhain ecosystem of controls and interpolation electronics.

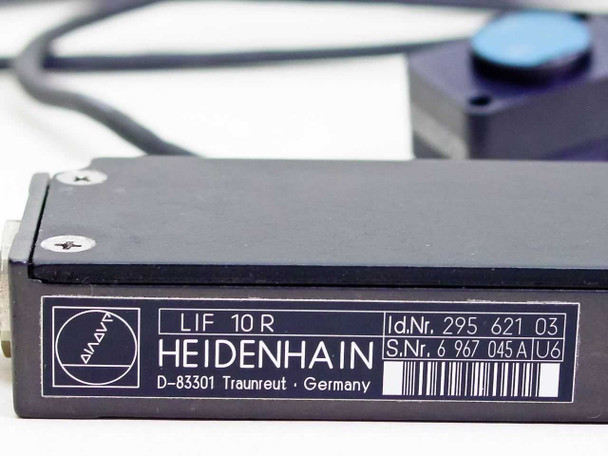

This Heidenhain LIF 10R linear encoder scanning head has been pulled from a working environment and visually inspected. The assembly includes the scanning head with its optical lens, the interpolator electronics unit, and the full cable with circular multi-pin connector — all appear intact and show only light handling wear consistent with normal use. The label on the interpolator body is fully legible (Id.Nr. 295 621 03). No obvious physical damage is noted. Please review our photos for a full look at the unit's condition and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Heidenhain |
Model: |
LIF 10R |
MPN: |
295 621 03 |
Type: |
Photoelectric Incremental Linear Encoder Scanning Head |
SKU: |
38767 |
Seller Notes: |
Includes scanning head, interpolator electronics unit, and cable with circular multi-pin connector. |
Country/Region of Manufacture: |
Germany |
Encoder Type: |
Incremental |
Measurement Principle: |
Photoelectric |
Scale Type Compatibility: |
Exposed linear glass scale (LIF series) |
Output Connector: |
Circular multi-pin (9-pin style) |
Form Factor: |
Scanning Head with Separate Interpolator Unit |
Application: |
CNC machine tool, precision linear positioning, metrology |
Id.Nr.: |
295 621 03 |
Condition Notes: |
This Heidenhain LIF 10R linear encoder scanning head was pulled from a working environment. Includes scanning head, interpolator unit, and cable. Light handling wear only; label fully legible. Please contact us with any questions. |
