Harris/Farinon

Harris/Farinon 1107 Heated Wafer Chuck 2.25" Vacuum Holder Semiconductor Tool

(No reviews yet) Write a Review
SKU:
43437
MPN:
1107
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

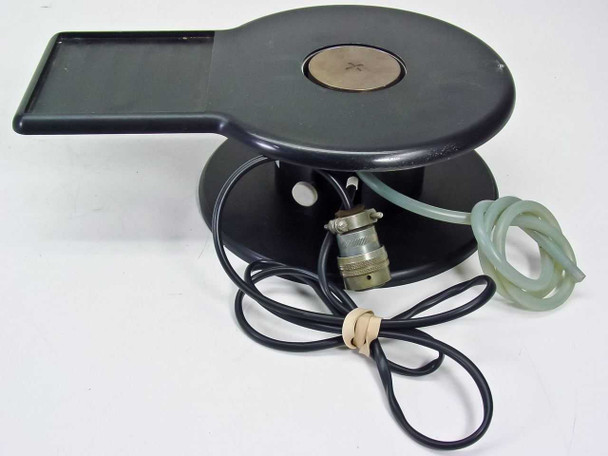

  • Harris/Farinon 1107 heated wafer chuck — front 3/4 view showing 2.25-inch circular vacuum plate, rectangular tray extension, black body, multi-pin mil-spec connector, and clear pneumatic tubing
  • Harris/Farinon 1107 heated wafer chuck — top/rear view showing underside of 2.25-inch vacuum plate with mounting screw holes, brass side fitting, and pneumatic tubing loop
  • Harris/Farinon Components Equipment No. 1107 — close-up of aluminum identification label on black body
  • Harris/Farinon 1107 — two 2.25-inch wafer chuck discs shown side by side: flat plain disc (left) and disc with center vacuum port fitting (right), both showing metallic wear
  • Harris/Farinon 1107 — close-up of clear silicone pneumatic vacuum tubing end showing hollow bore
  • Harris/Farinon 1107 — close-up of 5-pin mil-spec circular power/signal connector with gold contacts
  • Harris/Farinon 1107 — close-up of brass barb fitting on side of black cylindrical body, part of heating/cooling jacket circuit
$225.00
Was: $450.00
Current Stock: 1

Sold Out

Description

Harris/Farinon 1107 Heated Wafer Chuck 2.25" Vacuum Holder Semiconductor Tool

Heated vacuum wafer chuck designed for semiconductor wafer handling, positioning, and thermal processing. Uses pneumatic vacuum and resistive heating elements to hold and heat wafers during fabrication and inspection operations.

Specifications & What's Included

  • Model: Harris/Farinon 1107
  • Wafer diameter: 2.25 inches
  • Heating elements: 2x resistive; 1x temperature sensor
  • Vacuum: Pneumatic via center-hollow bolt
  • Connector: 5-pin mil-spec circular
  • Thermal jacket: Brass barb fitting with cooling/heating capability
  • Includes: Vacuum tubing, mil-spec power/signal cable, two wafer discs

Applications

Used in semiconductor wafer processing and inspection systems for holding, heating, and positioning wafers during fabrication steps. Typically integrated into probe stations, test equipment, and processing tools that require thermal control and secure wafer mounting. The 2.25" chuck accommodates smaller wafers and research-scale applications.

Condition: Used
This Harris/Farinon 1107 heated vacuum wafer chuck is in used condition and has been visually inspected. The unit shows normal wear consistent with prior lab or semiconductor process use. The black body and circular 2.25-inch vacuum plate are intact. Two separate wafer discs are included (visible in photos), both showing surface oxidation and use marks on their faces. The clear silicone pneumatic tubing is present and the hollow-bore vacuum line appears intact. The multi-pin mil-spec circular power/signal connector (5-pin, gold contacts) shows light oxidation on the shell but contacts appear clean. The brass barb fitting on the body side is present and undamaged. No cracks or major physical damage are observed. The unit has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Harris/Farinon
Model:
1107
MPN:
1107
Type:
Heated Vacuum Wafer Chuck
SKU:
43437
Condition:
Used – Inspected
Seller Notes:
Includes vacuum tubing and multi-pin mil-spec power/signal cable.
Country/Region of Manufacture:
United States
Application / Use Case:
Semiconductor wafer handling, heating, and vacuum chucking
Wafer / Plate Diameter:
2.25 in
Vacuum Type:
Pneumatic vacuum via center-hollow bolt
Connector Type:
Multi-pin mil-spec circular connector (5-pin visible)
Heating Elements:
2x resistive heating elements
Sensor:
1x temperature sensor pin
Coolant / Thermal Jacket:
Brass barb fitting; heating/cooling jacket in round black body
Vacuum Fitting:
Clear silicone pneumatic tubing
Form Factor:
Benchtop / Freestanding
Compatible With:
Semiconductor wafer processing and inspection systems
Condition Notes:
Harris/Farinon 1107 heated vacuum wafer chuck in used condition. Visually inspected; normal wear, surface oxidation on wafer discs. Two discs included. Mil-spec connector and pneumatic tubing present. Not bench-tested. Contact us with questions.
