Description

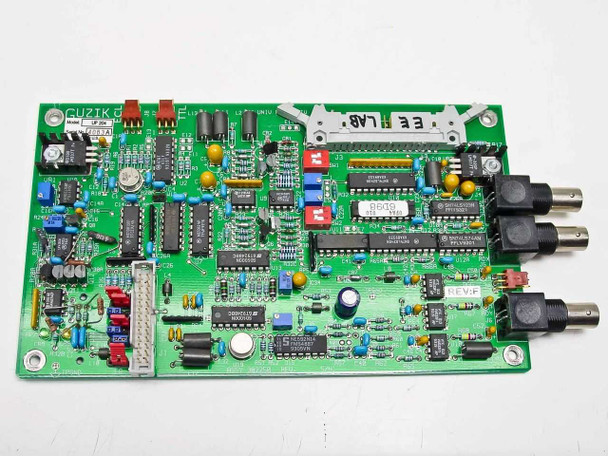

Guzik Universal Preamp IV 302250 PCB Assembly Magnetic Disk Preamplifier Board
PCB-level preamplifier assembly for magnetic disk drive read channels. Features NE592N14 and FMS4887 integrated circuits with three BNC output connectors and multi-pin edge connector for system integration.
Specifications & What's Included
- Brand: Guzik
- Model: Universal Preamp IV
- MPN: 302250
- Type: Disk Drive Preamplifier PCB Assembly
- Output: 3x BNC connectors
- Interface: Multi-pin edge connector (approximately 50-pin)

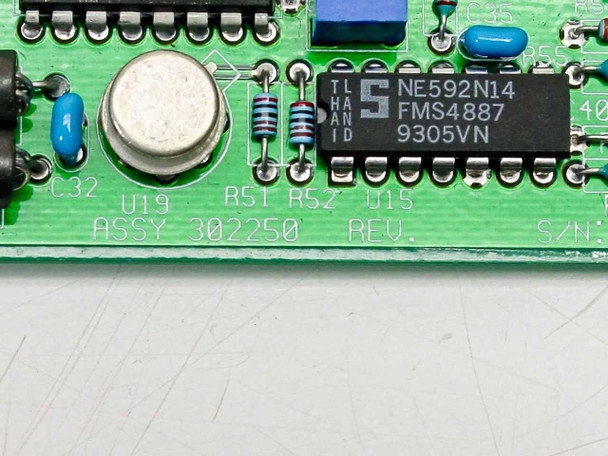

- Main ICs: NE592N14, FMS4887
- Manufactured in United States
Applications
This preamplifier board was used in disk drive test and characterization systems, particularly in Guzik's magnetic disk measurement platforms. The Universal Preamp IV supported read channel signal conditioning for hard disk drives and magnetic storage media analysis. Commonly integrated into data recovery, disk testing, and storage diagnostics equipment from the 1980s through 2000s.
Condition: Used
This Guzik Universal Preamp IV PCB Assembly (302250) has been inspected and is in good condition. The board shows normal handling wear consistent with lab use — light surface marks are visible but there is no sign of damage, burning, or component loss. All three BNC connectors and the edge connector appear intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Guzik Universal Preamp IV PCB Assembly (302250) has been inspected and is in good condition. The board shows normal handling wear consistent with lab use — light surface marks are visible but there is no sign of damage, burning, or component loss. All three BNC connectors and the edge connector appear intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Guzik |
Model: |
Universal Preamp IV |
MPN: |
302250 |
Type: |
Disk Drive Preamplifier PCB Assembly |
SKU: |
42732 |
Assembly Number: |
ASSY 302250 |
Main IC / Chipset: |
NE592N14, FMS4887 |
Output Connectors: |
3x BNC |
Interface Connector: |
Multi-pin edge connector (approx. 50-pin) |
Form Factor: |
PCB Module / Card |
Application: |
Magnetic disk drive read channel preamplifier |
Condition: |
Used – Inspected and Pulled from Working Environment |
Seller Notes: |
Board only; no enclosure. Inspected and in good condition. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Guzik Universal Preamp IV 302250 PCB assembly. Inspected and in good condition. Normal lab handling wear. BNC connectors and edge connector intact. Board only, no enclosure. |
