Guzik

Guzik Tri-Amp 4610R MR-Head PCB Module 303010 2020R VM710N4 VM7114

(No reviews yet) Write a Review
SKU:
42741
MPN:
303010
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Guzik Tri-Amp 4610R MR-Head PCB Module 303010 – angled top view showing component side with ICs and gold pin edge connector

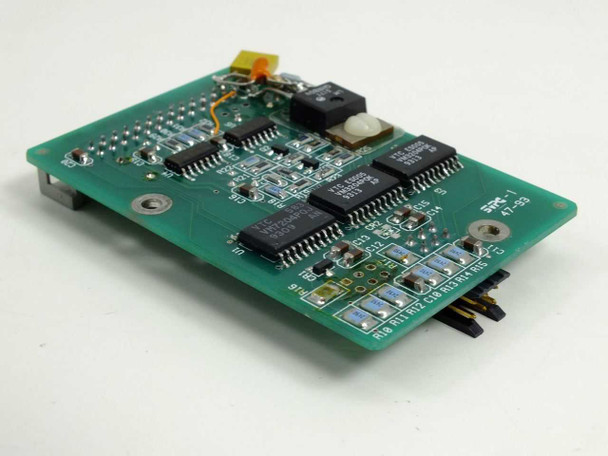

  • Guzik Tri-Amp 4610R MR-Head PCB Module 303010 – reverse angled view showing solder side, ICs, trim pot, and signal header connectors
  • Guzik Tri-Amp 4610R PCB close-up of silkscreen label reading TRI-AMP 4610R/2020R/2030/VM710N4/VM7114/VM7204/VM7234 MR-HEAD
  • Guzik Tri-Amp 4610R MR-Head Module – close-up of gold pin edge connector showing 2526 date code stamp

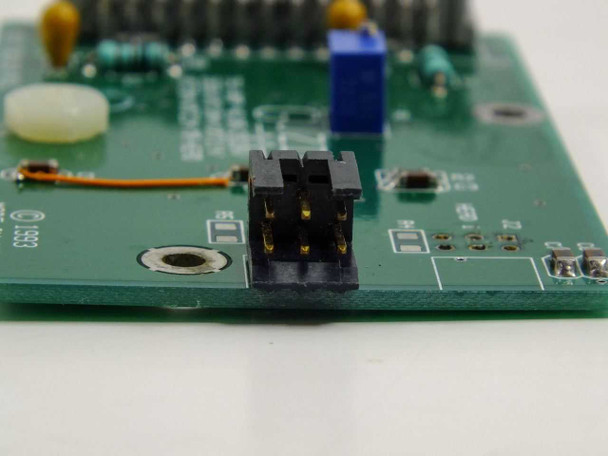

  • Guzik Tri-Amp 4610R MR-Head Module – close-up of small signal header connector on board edge
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Guzik Tri-Amp 4610R MR-Head PCB Module 303010 2020R VM710N4 VM7114

MR-Head preamplifier PCB module for Guzik hard disk drive test and certification equipment. This bare PCB card functions as a signal conditioning and amplification stage in Guzik's data acquisition systems.

Specifications & What's Included

  • Brand: Guzik
  • Model: Tri-Amp 4610R
  • Part Number: 303010
  • Compatible with: Guzik 4610R, 2020R, VM710N4, VM7114, VM7204, VM7234
  • Form Factor: PCB module with gold pin header connectors
  • Application: HDD test and certification equipment
  • Manufactured in the United States

Applications

This MR-Head module was used in Guzik's test platforms for hard disk drive characterization and quality assurance. The Tri-Amp 4610R and related systems are employed in manufacturing environments to measure drive performance parameters and validate HDD compliance. The module integrates into larger test systems via its edge and signal connectors to provide amplified readback signal conditioning for drive testing workflows.

Condition: Used
This Guzik Tri-Amp 4610R MR-Head PCB Module (P/N 303010) has been inspected and is in good used condition. The board shows light handling wear consistent with prior use in a test system. Traces, components, and connectors appear intact with no visible damage, corrosion, or missing parts. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Guzik
Model:
Tri-Amp 4610R
MPN:
303010
Secondary Model:
2020R
Type:
MR-Head Preamplifier PCB Module
Compatible With 1:
Guzik 4610R
Compatible With 2:
Guzik 2020R
Compatible With 3:
Guzik VM710N4 / VM7114
Compatible With 4:
Guzik VM7204 / VM7234
Application:
Hard Disk Drive Test & Certification Equipment
Form Factor:
PCB Module / Card
Connector Type:
Gold pin header connectors (main edge + signal header)
SKU:
42741
Condition:
Used – Inspected
Seller Notes:
Bare PCB module only; no enclosure. Inspected, in good condition.
Country/Region of Manufacture:
United States
Condition Notes:
Guzik Tri-Amp 4610R MR-Head PCB Module 303010 inspected and in good used condition. Board and connectors appear intact with no visible damage or missing components.
